AudioControl EPICFIVE Epic Series 5-Channel Amplifier
AudioControl EPICFIVE Epic Series 5-Channel Amplifier
The AudioControl EPIC Series 5-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design, all at an unbeatable price. Engineered with a high-current Class D design, ensuring maximum power output while maintaining efficiency. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality for the price and is the only AudioControl amplifier to include a bass knob for easy control.
Key Features
- Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
- 0-12dB Variable Bass Boost Q: Selects the frequency to boost.
- Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

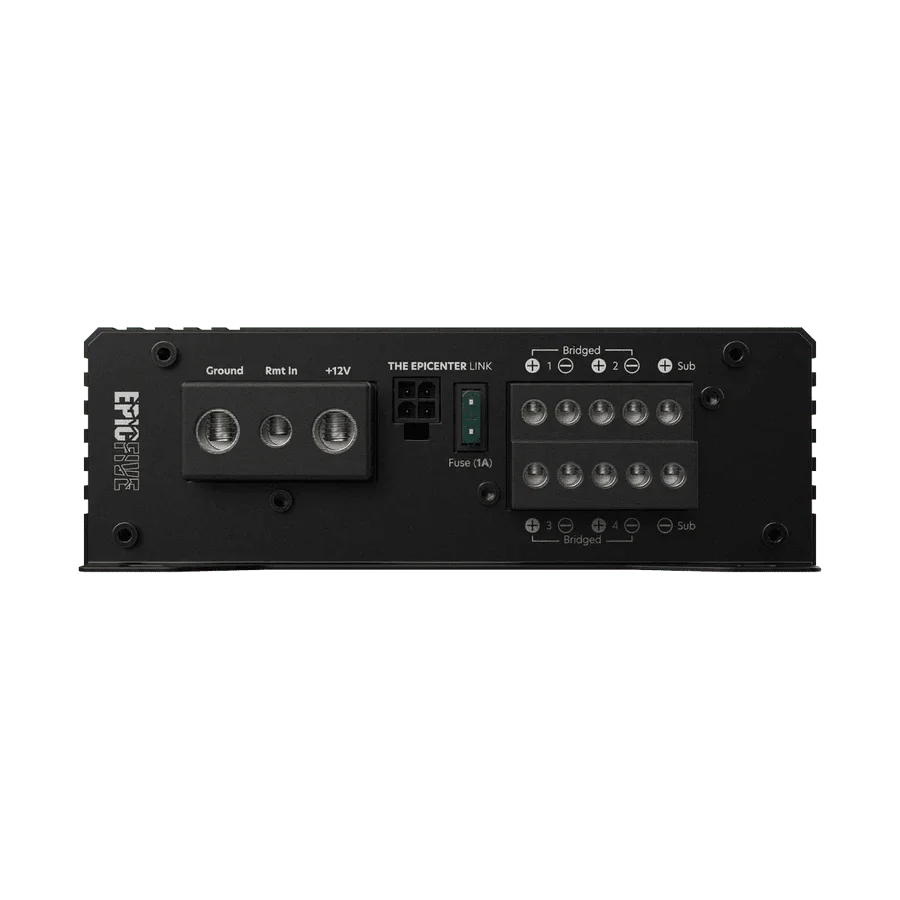

- 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
- 91dB+ Signal-to-Noise Ratio: Ultra-efficient idle draw.
- Smart Auto Reset Protection Circuit: Multiple protection modes (OCP, OVP, UVP, DCP, OTP) to prevent damage.

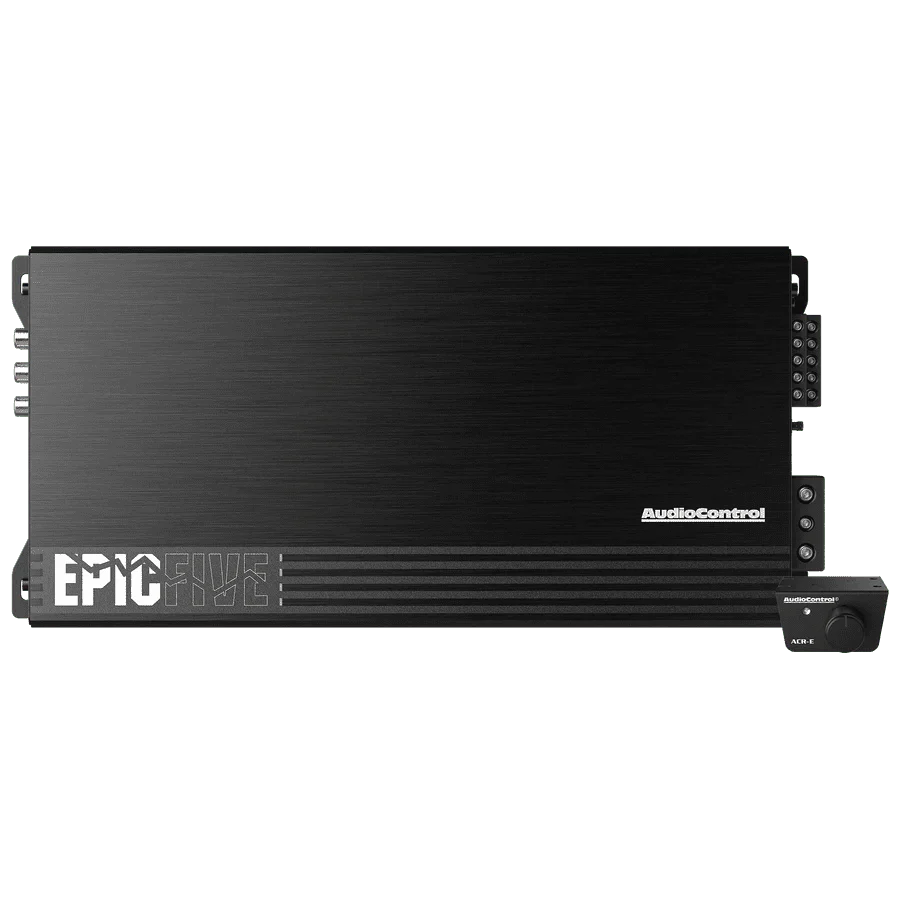

- Included ACR-E Remote Control knob: Adjust output on the fly.
- THE EPICENTER LINK: Simplify your install by connecting the EPIC amplifier directly to an EPICENTER bass restoration processor.
Specifications
Continuous Power (RMS) @ 14.4V:
4 x 75 Watts + 1 x 300 Watts @ 4 ohms
4 x 150 Watts + 1 x 500 Watts @ 2 ohms
1 x 700 Watts @ 1 ohm (subwoofer output)
2 x 300 Watts @ 4 ohms Bridged
Performance:
Frequency Response: 10 Hz – 24 kHz (Ch1/2/3/4); 12 Hz – 181 Hz (Ch5)
S/N Ratio: 92.1 dBa
High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
Weights & Dimensions:
Dimensions: 6.1″ W x 13.35″ L x 2.01″ H
In The Box:
EPICFIVE amplifier
Wrench
Screws
ACR-E Remote Level Control and Cable
The Epicenter Link (1 meter harness)
Manual
Warranty
