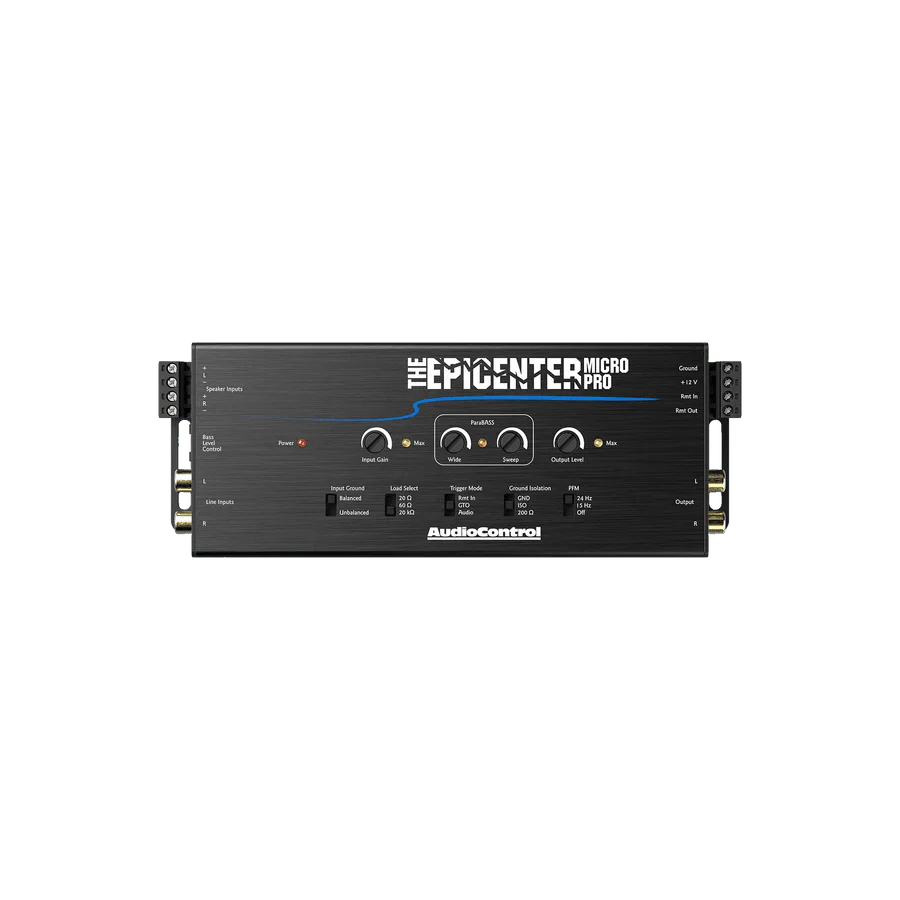

AudioControl EPICENTER Micro PRO Bass Restoration Processor
AudioControl EPICENTER Micro PRO Bass Restoration Processor
Building on the legendary bass processing of The EPICENTER, The EPICENTER PRO delivers enhanced control for serious bass enthusiasts. Balanced inputs with a built-in line driver, a switchable pfm subsonic filter, and selectable output voltage offer unmatched system flexibility. The included ACR-4 remote provides easy adjustment of The EPICENTER effect and subwoofer level—right from the driver’s seat.
Bass Maximizer – The EPICENTER PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The EPICENTER PRO to drop down a few octaves and reproduce the “missing” bass notes.
Line Driver - Instantly boost the voltage of your low-level audio signal, eliminating noise and sending a crystal-clear, high-powered input directly to your amplifier. Maximize your amplifier's performance and achieve its full dynamic range without unwanted interference.
Features
- Selectable PFM Subsonic Filter with Bypass: Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
- Built-in Line Driver for Optimal Output Voltage: Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.
- Balanced Line Level Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
- Speaker-Level Inputs: Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
- Load Selection Switch: Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
- GTO and Audio Sense Turn On: Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.
- 10 Volt Maximum Output Level: Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
- Conformally Coated PCB: A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.
- ACR-4 Dual-Knob Remote Level Control Included: Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.
Specifications
INPUTS
Maximum Line Level Input: 10Vrms
Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
Line Level Input Impedance: 7kΩ
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS - Continuous Power (RMS) @ 14.4V
Maximum Output Level (THD <1%): 9Vrms, 13V peak
Output Impedance: 150Ω
Performance
Total Harmonic Distortion: 0.03%
Signal to Noise: >105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB
PFM Filter (High Pass): Selectable 24 Hz or Bypass
Control
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)
General
Power Supply: High Headroom PWM Switching
Current Draw: 300 mA
Recommended Fuse Rating: 1 A
Weights & Dimensions
Dimensions: 8″L x 3″D x 1″H
Weight: 0.9 lbs
Original: $229.00
-65%$229.00
$80.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
AudioControl EPICENTER Micro PRO Bass Restoration Processor
Building on the legendary bass processing of The EPICENTER, The EPICENTER PRO delivers enhanced control for serious bass enthusiasts. Balanced inputs with a built-in line driver, a switchable pfm subsonic filter, and selectable output voltage offer unmatched system flexibility. The included ACR-4 remote provides easy adjustment of The EPICENTER effect and subwoofer level—right from the driver’s seat.
Bass Maximizer – The EPICENTER PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The EPICENTER PRO to drop down a few octaves and reproduce the “missing” bass notes.
Line Driver - Instantly boost the voltage of your low-level audio signal, eliminating noise and sending a crystal-clear, high-powered input directly to your amplifier. Maximize your amplifier's performance and achieve its full dynamic range without unwanted interference.
Features
- Selectable PFM Subsonic Filter with Bypass: Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
- Built-in Line Driver for Optimal Output Voltage: Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.
- Balanced Line Level Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
- Speaker-Level Inputs: Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
- Load Selection Switch: Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
- GTO and Audio Sense Turn On: Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.
- 10 Volt Maximum Output Level: Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
- Conformally Coated PCB: A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.
- ACR-4 Dual-Knob Remote Level Control Included: Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.
Specifications
INPUTS
Maximum Line Level Input: 10Vrms
Maximum Speaker Level Input: 40V / 400W (20kΩ setting)
Line Level Input Impedance: 7kΩ
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
OUTPUTS - Continuous Power (RMS) @ 14.4V
Maximum Output Level (THD <1%): 9Vrms, 13V peak
Output Impedance: 150Ω
Performance
Total Harmonic Distortion: 0.03%
Signal to Noise: >105 dB
Frequency Response: 10 Hz – 22 kHz ±1 dB
PFM Filter (High Pass): Selectable 24 Hz or Bypass
Control
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)
General
Power Supply: High Headroom PWM Switching
Current Draw: 300 mA
Recommended Fuse Rating: 1 A
Weights & Dimensions
Dimensions: 8″L x 3″D x 1″H
Weight: 0.9 lbs
