AudioControl TXFBB12 12" Loaded Subwoofer Enclosure - Ford Bronco (2021-25)
AudioControl TXFBB12 12" Loaded Subwoofer Enclosure - Ford Bronco (2021-25)

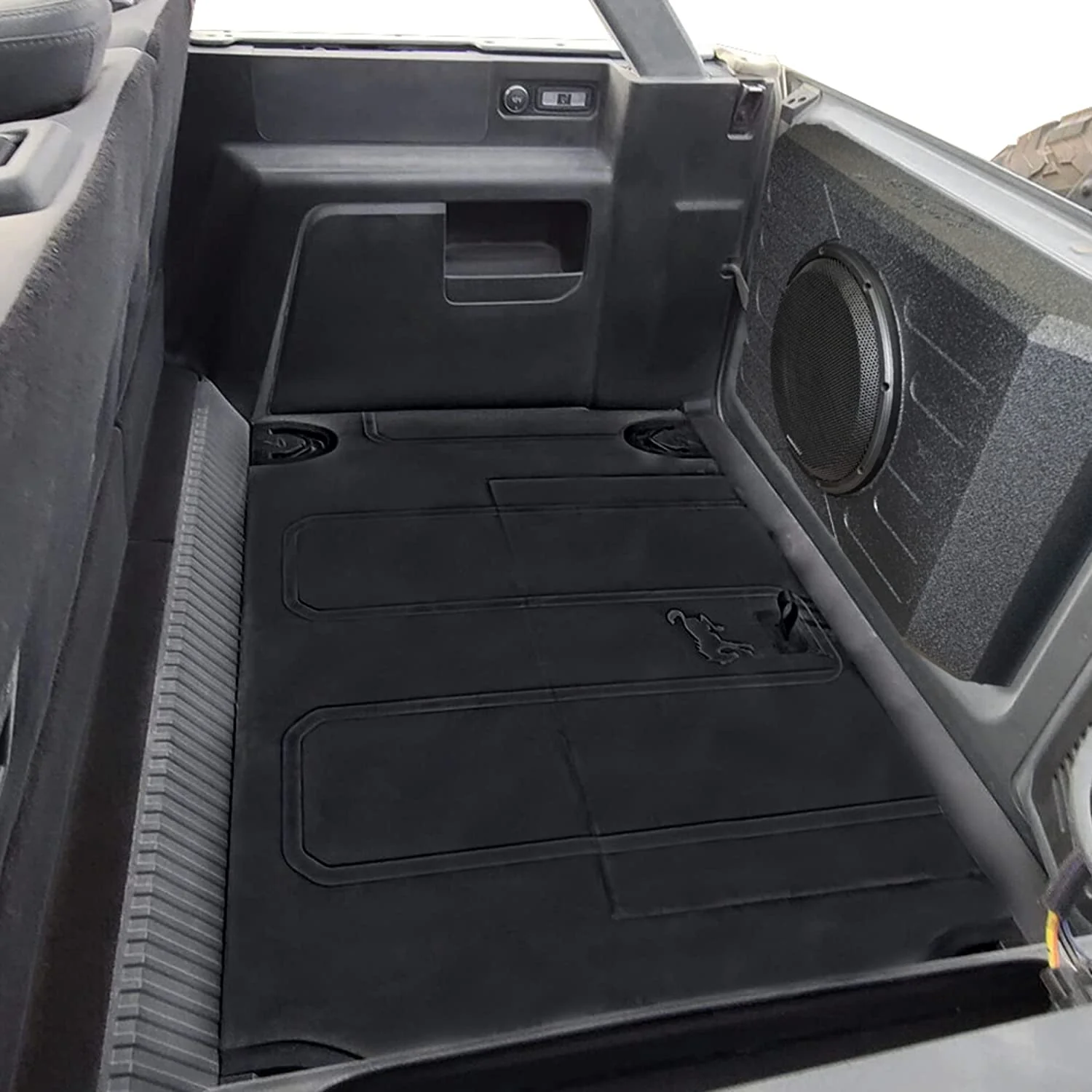

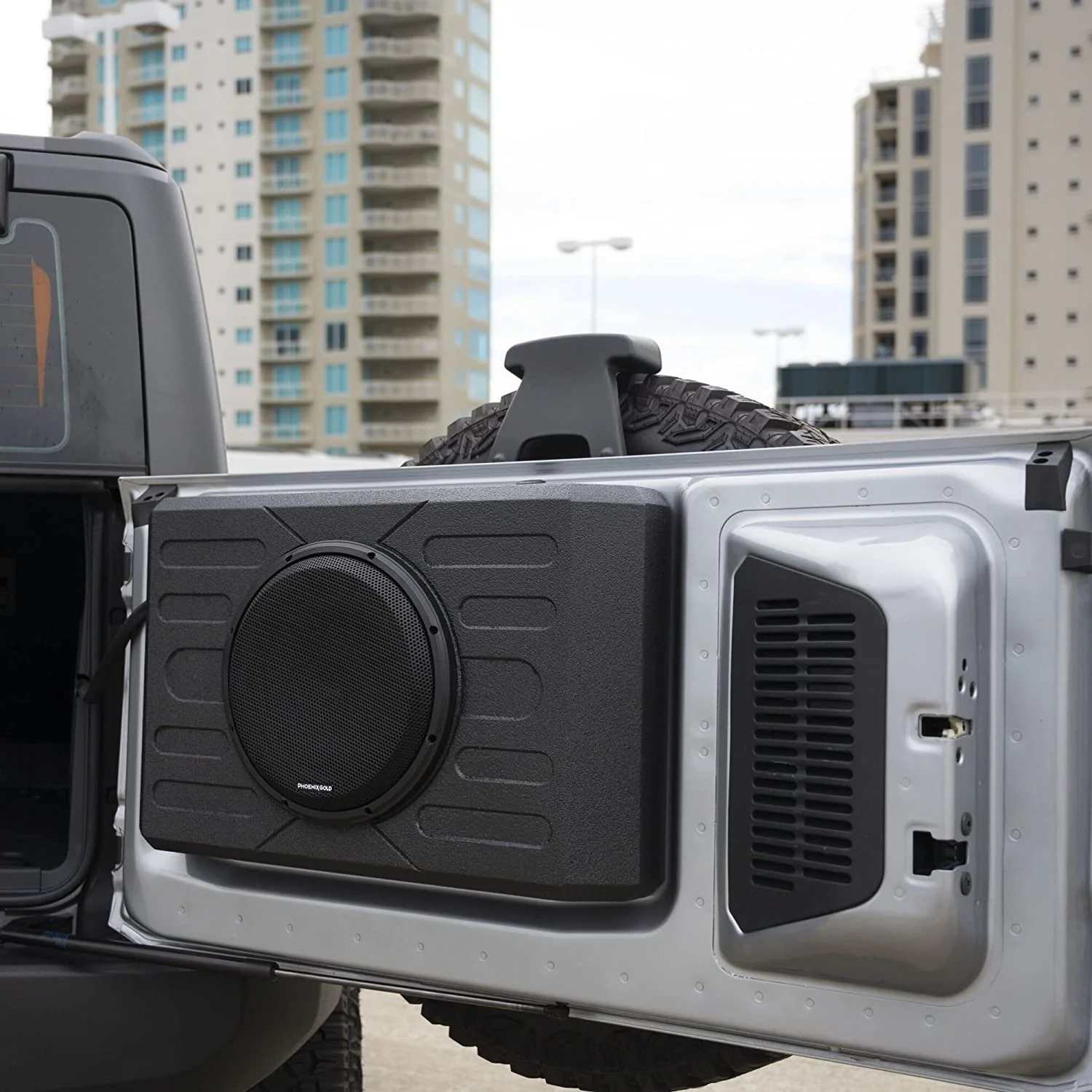

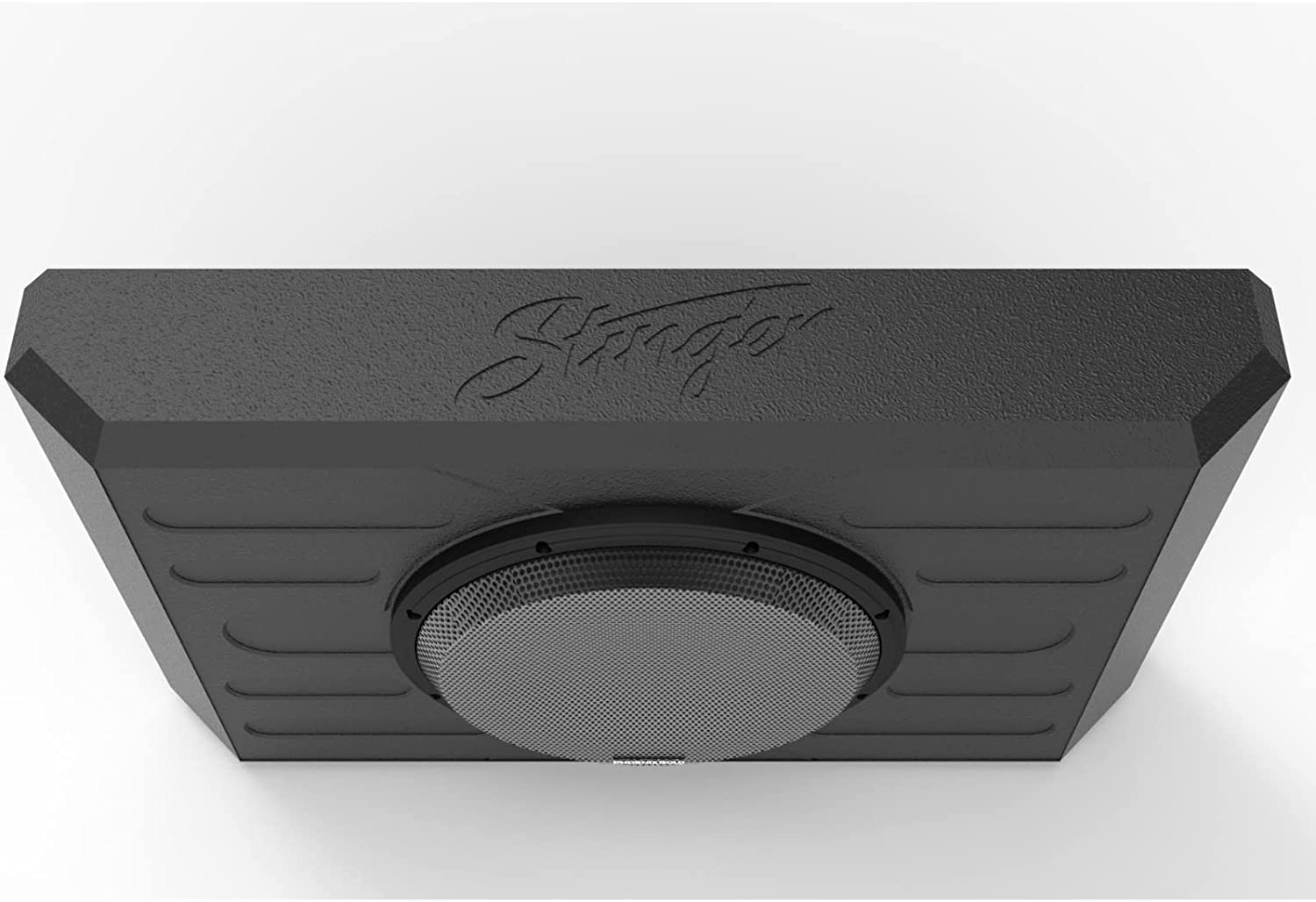

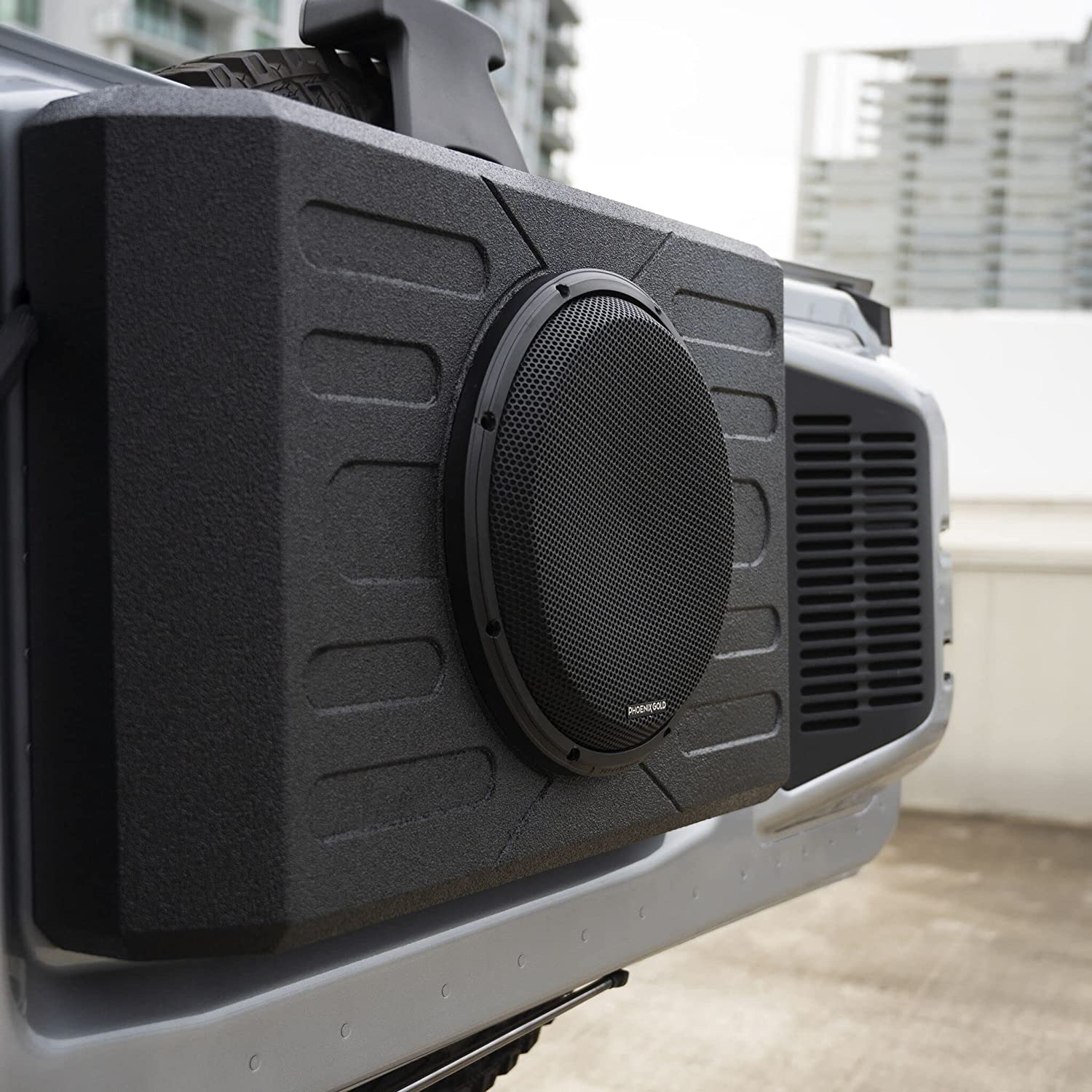

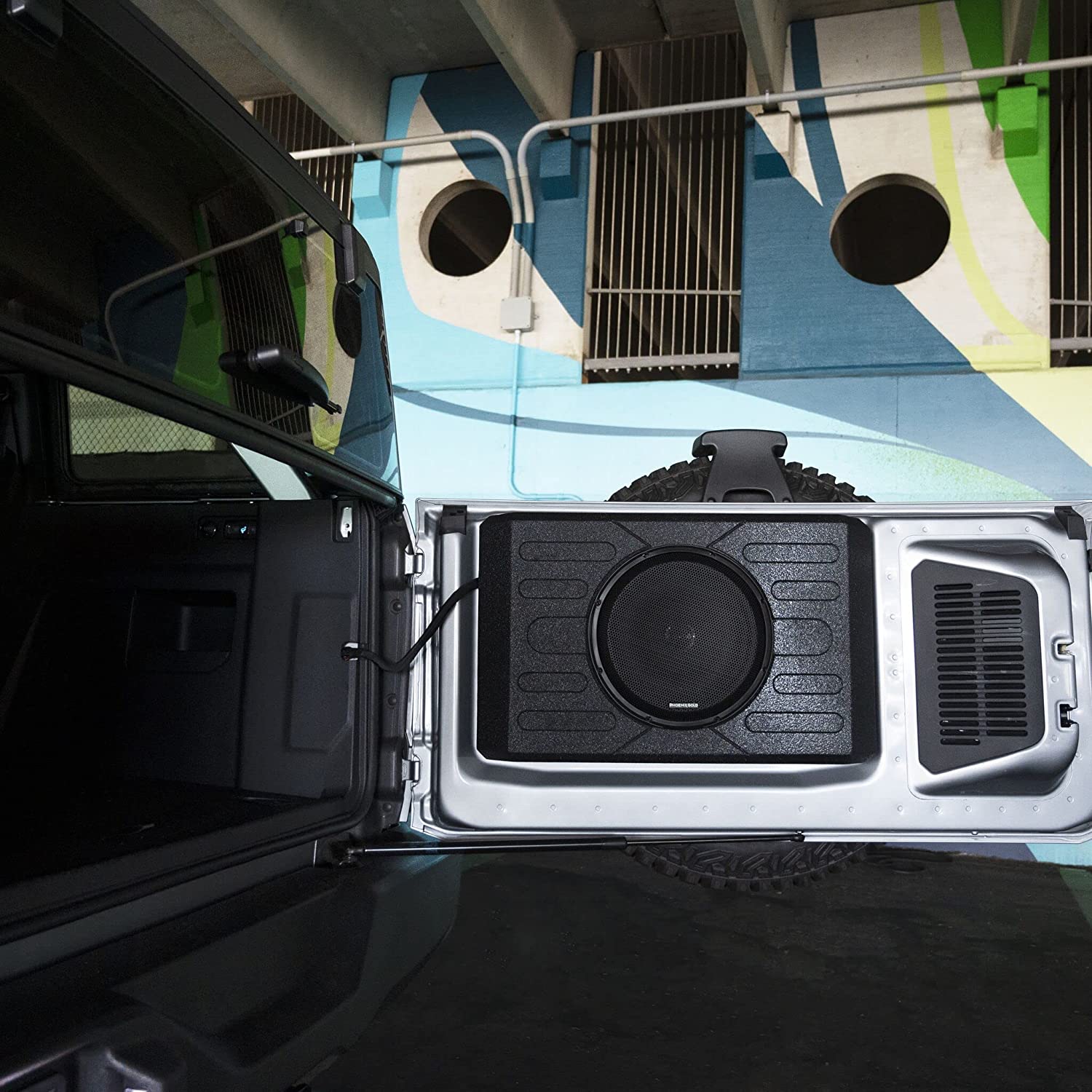

For 2021-2025 Ford Bronco 2-Door and 4-Door Model. Built tough and made to fit your Bronco’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.
All mounting hardware is included.
*Does not fit Sport Model
400 Watt RMS / 800 Watt Max
Compatibility
Ford Bronco (2021-25)
Enclosure Features
- Roadkill-Armor Coat
- Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
- Weather-Resistant Enclosure for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Impact Absorption
- UV Protection
- Provides Leak and Corrosion Prevention
- Heavy-Duty 11-Layer High-Density Plywood Construction
- Durable, Coated Steel Subwoofer Grille for Extra Protection
Subwoofer Features
- Low-Profile Shallow Mount Subwoofer
- Fiber Matrix Injection Molded Polypropylene Cone
- Weather-Resistant Design
- 3-Layer High Temp Voice Coil Former
- Optimal Thermal Efficiency
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
- Removable Subwoofer Grille Included
Thermal & Mechanical Elements
Nominal Impedance (Z): 2 ohms
DC Resistance (Re): 1.8 ohms
Resonance Frequency (Fs): 27.8430 Hz
Piston Area (Sd): 0.0511 m2
Force Factor (BL): 10.3379 T.m
Mechanical Q Factor (Qms): 4.0762
Electrical Q Factor (Qes): 0.4073
Total Q Factor (Qts): 0.4216
Sensitivity 1W/M (SPL): 87.3655
Mechanical Comp (Cms): 0.2047 mm/N
Moving Mass (Mms): 159.6086 g
Linear Excursion (Xmax): 9 mm
Volume Acoustic Comp (Vas): 74.5578 Ltr/2.632984 cu ft
Reference Efficiency (NO.): 0.33% RMS
Power (Pe): 400 Watts
Frequency Response: 20-250 Hz
Voice Coil Diameter: 2.5 in/63.5 mm
Displacement: 0.0619 cu ft/1.752 Ltr
Dimensions
Internal Volume: 0.706 cu ft. / 19.99 Ltr
Enclosure Weight: 16.25 lbs
Height: 17in / 43.2cm
Width: 27.5in / 69.9cm
Depth: 4.6in / 11.7cm
