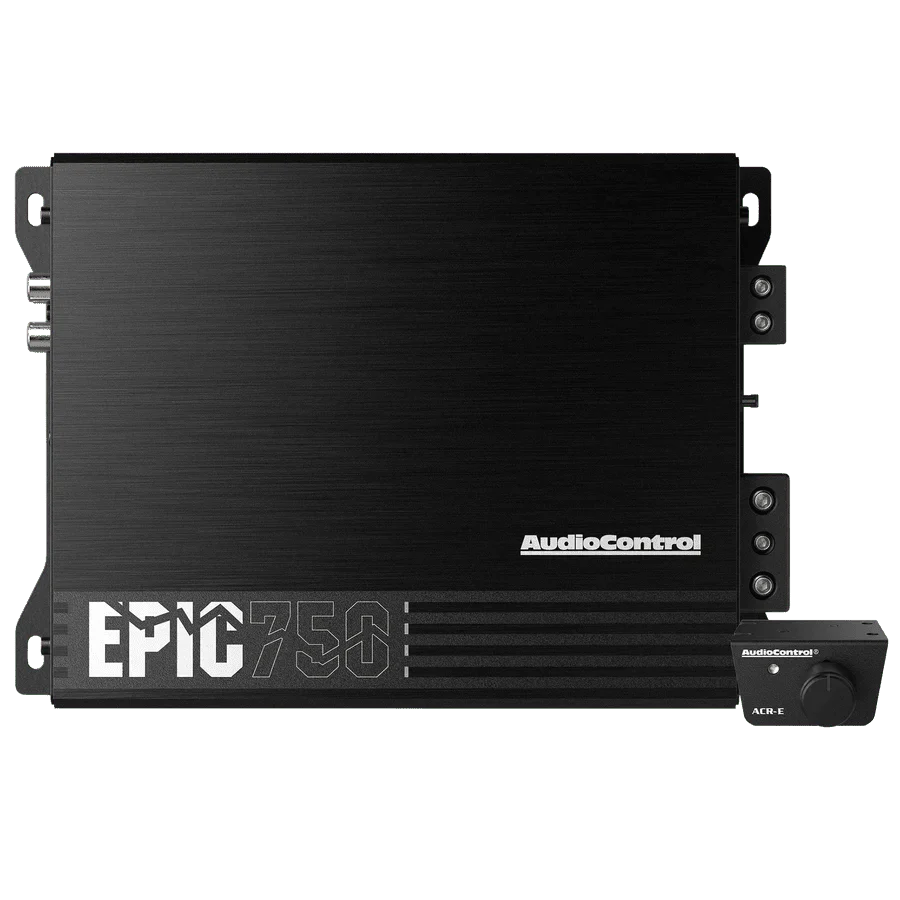

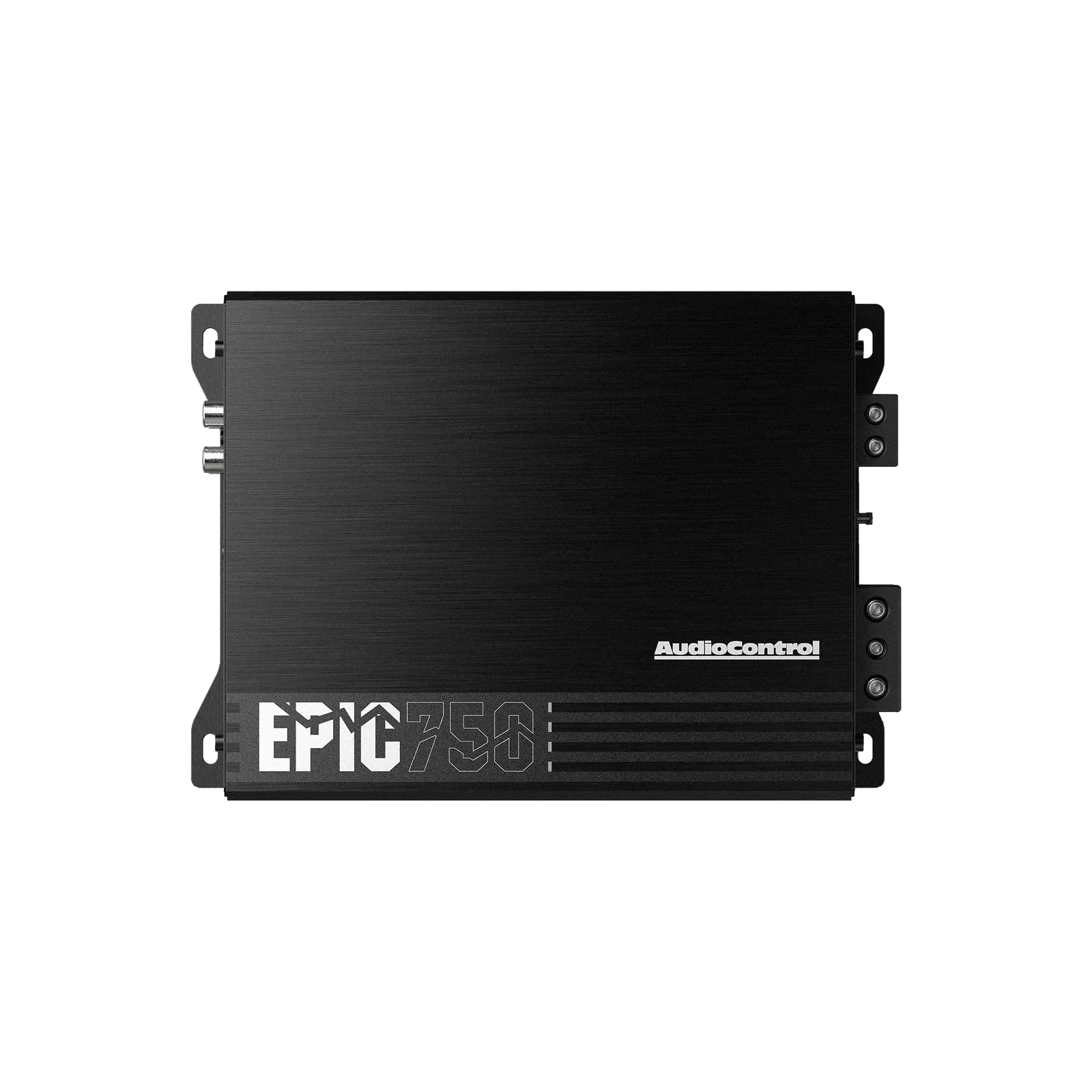

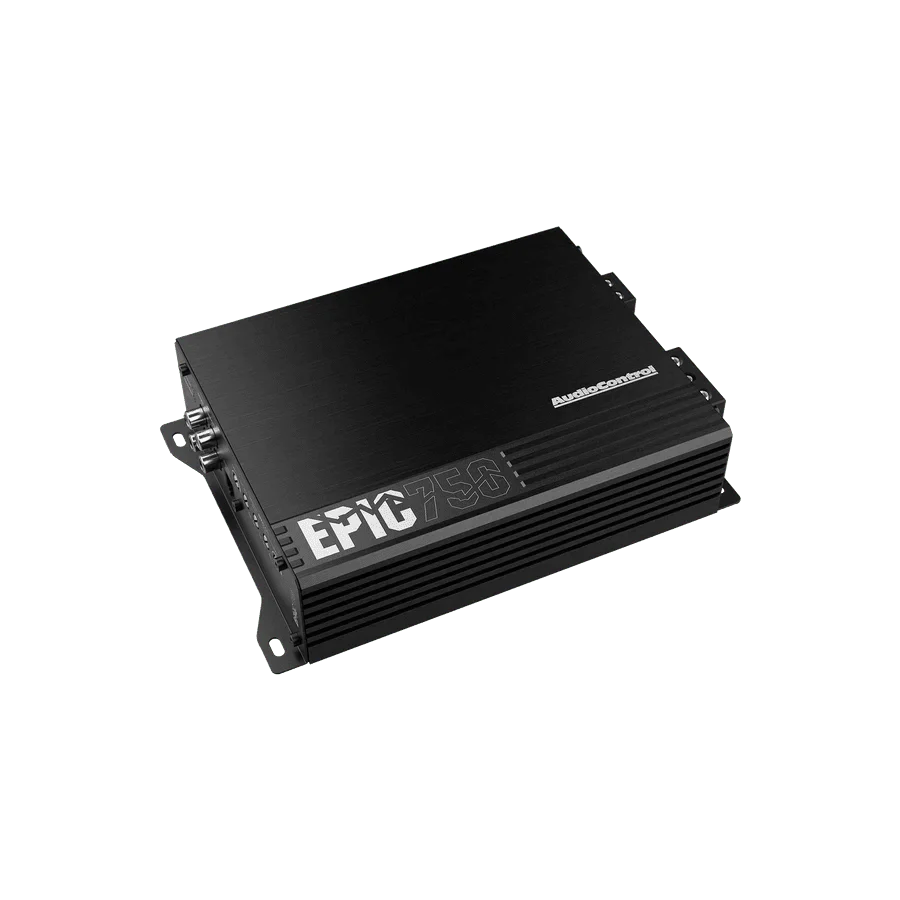

AudioControl EPIC750 EPIC Series Subwoofer Amplifier

AudioControl EPIC750 EPIC Series Subwoofer Amplifier

The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality and is the only AudioControl amplifier to include a bass knob for easy control.

Features

• Compact High-Power Class D Monoblock Amplifier
• High-Current Design – 1Ω Stable
• Smart Auto-Reset Protection Circuit

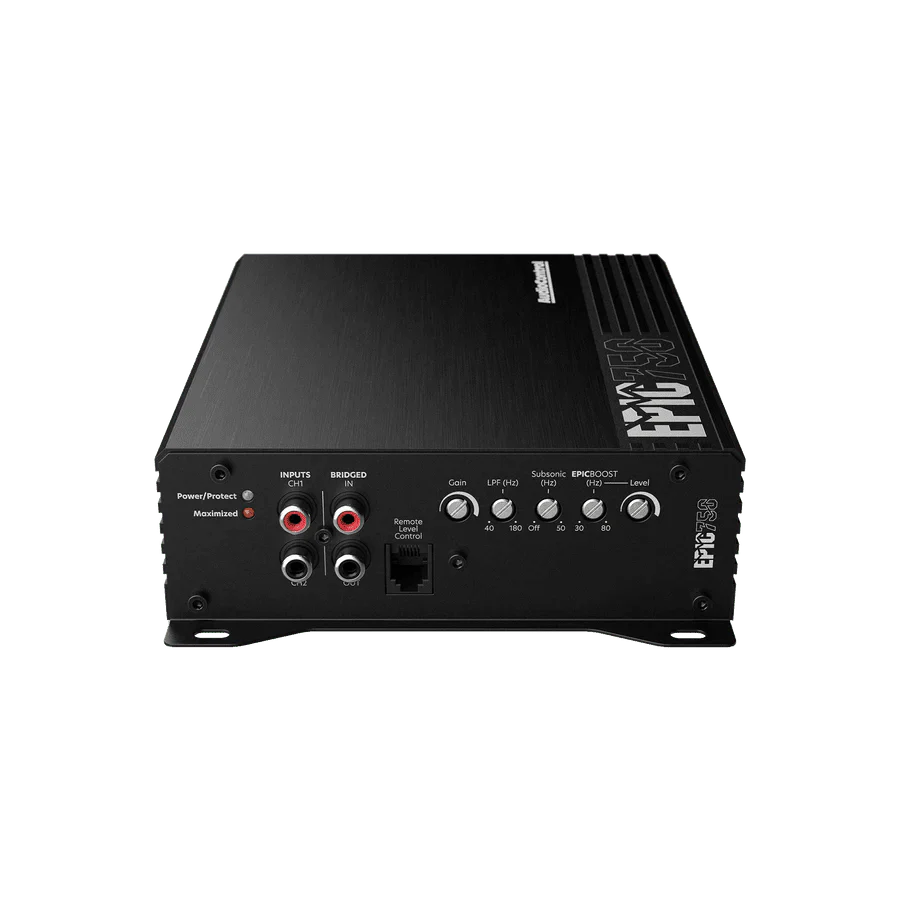

• 12 dB/octave Linkwitz-Riley Variable Low Pass Filter
• 12 dB/octave Variable Subsonic Filter
• EPICBoost™ Variable Frequency Bass Boost
• ACR-E Remote Level Control Included

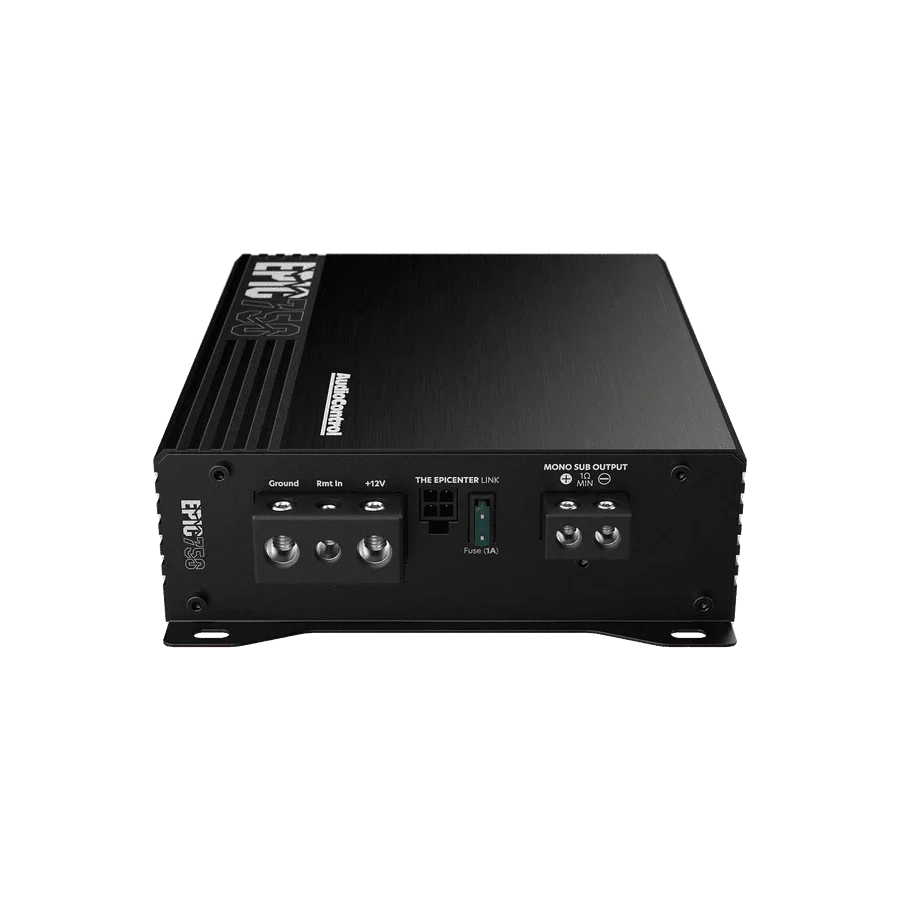

• Solid Power/Speaker Terminals with Hex Screws
• Built for THE EPICENTER®

Specifications

INPUTS
Line-Level Inputs: 500mV – 12V RMS

OUTPUTS - Continuous Power (RMS) @ 14.4V
1 x 300 Watts @ 4 ohms
1 x 500 Watts @ 2 ohms
1 x 750 Watts @ 1 ohm
1 x 1500 Watts @ 2 ohms Bridged (Strapped)

Remote Level Control
Included

Weights & Dimensions
6.1″ W x 8.62″ L x 2.01″ H

Performance
Frequency Response (+/- 1 dB): 10 Hz – 190 Hz
S/N Ratio: 92.8 dBa, Ref 600 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 80 Amps
Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
EPIC Boost: Frequency Center: 30 Hz to 80 Hz, Gain: 0 to 12 dB
Speaker Terminal Wire Gauge: 8 AWG
Strapable: Yes
Epicenter Link: Yes
