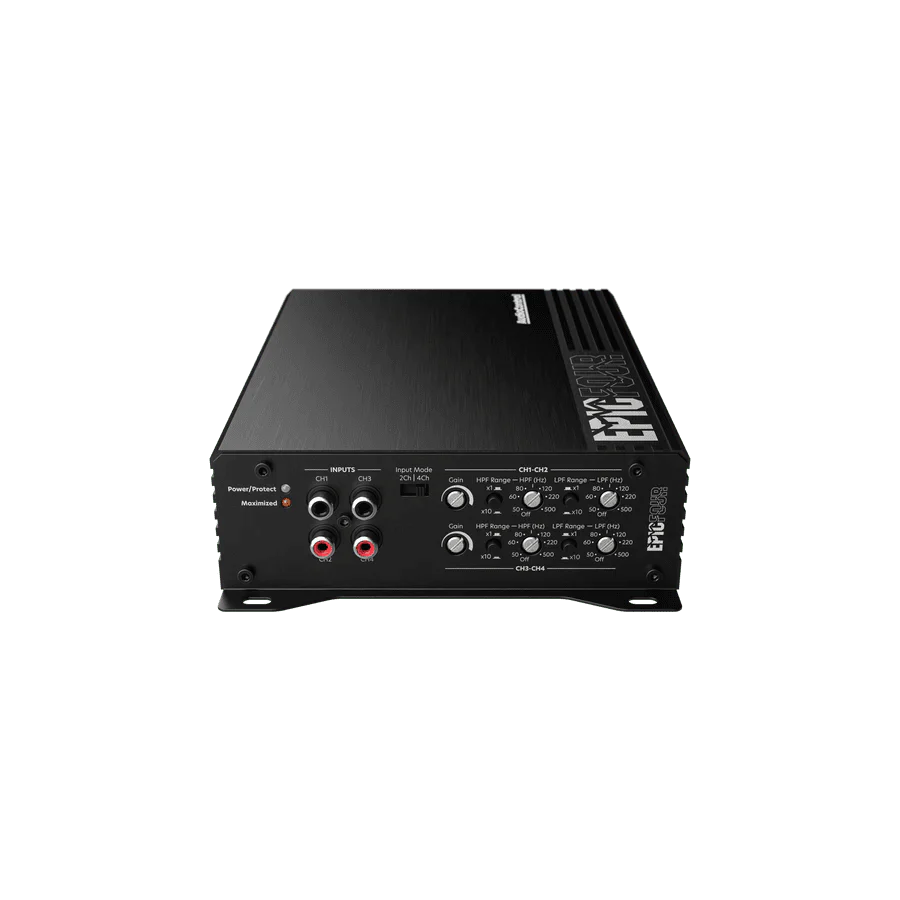

AudioControl EPICFOUR EPIC Series 4-Channel Amplifier

AudioControl EPICFOUR EPIC Series 4-Channel Amplifier

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

Features

• Compact High-Power Class D Amplifier
• High-Current Design – 2Ω Stable
• 4 x 100 Watts @ 4 ohms
• 4 x 200 Watts @ 2 ohms
• 2 x 400 Watts @ 4 ohms Bridged
• Smart Auto-Reset Protection Circuit
• 12 dB/octave Linkwitz-Riley Variable High Pass Filters

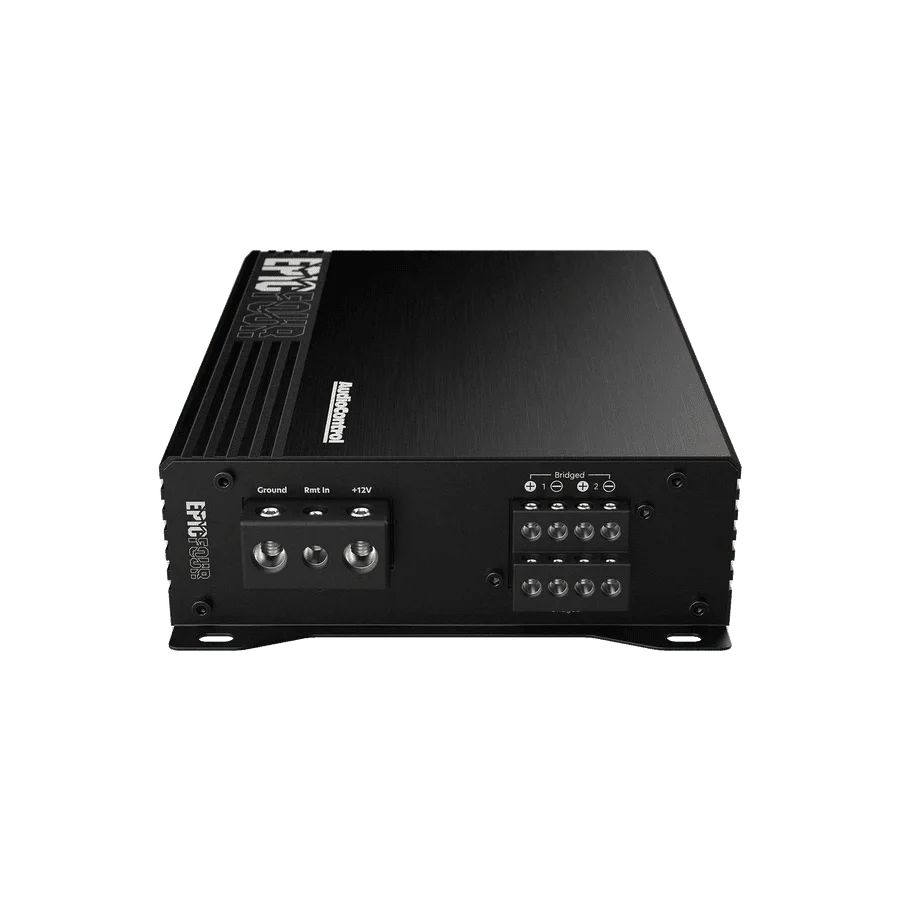

• Solid Power/Speaker Terminals with Hex Screws

Specifications

INPUTS
Line-Level Inputs: 500mV – 12V RMS

OUTPUTS - Continuous Power (RMS) @ 14.4V
4 x 100 Watts @ 4 Ohms
4 x 250 Watts @ 2 Ohms
2 x 400 Watts @ 1 Ohm

Remote Level Control
Included

Weights & Dimensions
6.1″ W x 5.9″ L x 2.01″ H

Performance
Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
Power / Ground Wire Gauge: 4 AWG
Recommended Fuse Rating: 80 Amps
High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
Speaker Terminal Wire Gauge: 8 AWG
