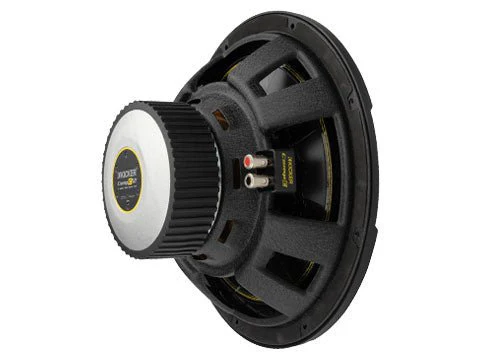

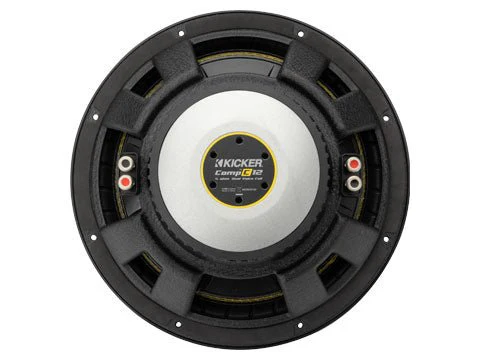

Kicker 50CWCS124 CompC 12" Subwoofer
Kicker 50CWCS124 CompC 12" Subwoofer
The perfect combination of performance and value, the KICKER® CompC™ Subwoofer delivers the bump you’ve been craving!
The dual-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.
Features:
- Dual Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
- Injection-Molded Polypropylene Cone
- Forced-Air Cooling™ for Outstanding Durability
- Ribbed Polyurethane Surround
- Signature Yellow Surround Stitching
- High-Strength Spiralead™ Tinsel Leads
- Stamped Steel Basket
- High Temp Voice Coil
- Spring-Loaded Speaker Terminals
- Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!
*The CompC 12-inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.
Specifications
Thiele/Small Parameters: 50CWCD124 T/S Parameters
Product Dimension Sheet: 50CWCD124 Dimensions
Size [in, cm]: 12, 30
Recommended Amplifier Power [watts RMS]: 150-300
Peak Power Handling [watts, per ANSI/CTA-2031-A]: 600
Sensitivity [dB 1w/1m]: 87.1
Rated Impedance [OHMS]: 4 DVC
Fs [Hz]: 30.6
Frequency Response [Hz]: 27-500
Outer Frame Dimension [in, cm]: 12-5/8, 32
Mounting Depth [in, cm]: 5-3/4, 14.6
Mounting Cutout [in, cm]: 11, 27.9
Max Rec Sealed Box Vol [cu. ft, liters: 3.5, 99.1
Min Rec Sealed Box Vol [cu. ft, liters: 1.25, 35.4
Max Rec Vented Box Vol [cu. ft, liters): 2.25, 63.7
Min Rec Vented Box Vol [cu. ft, liters]: 1.75, 49.6
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
