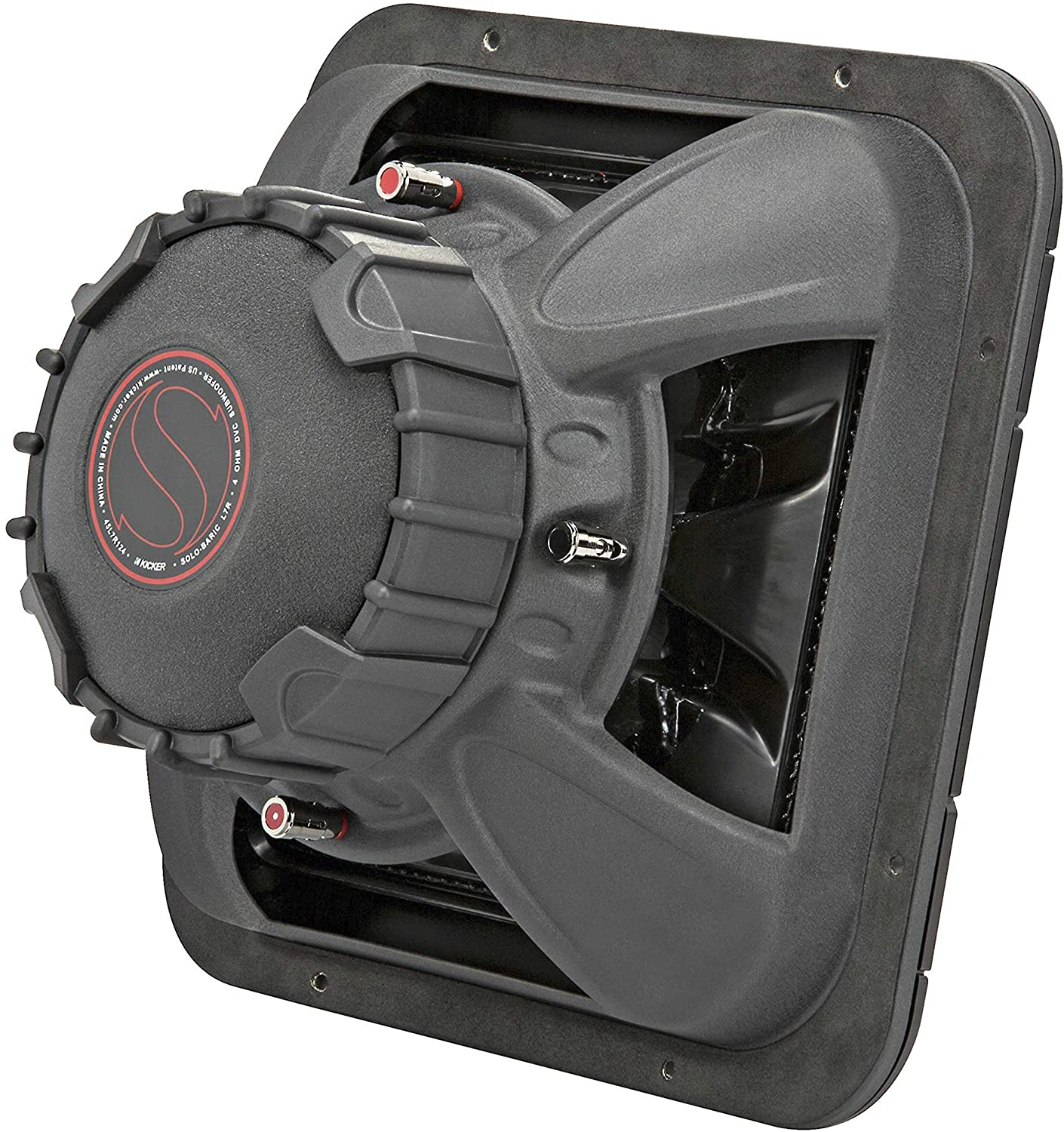

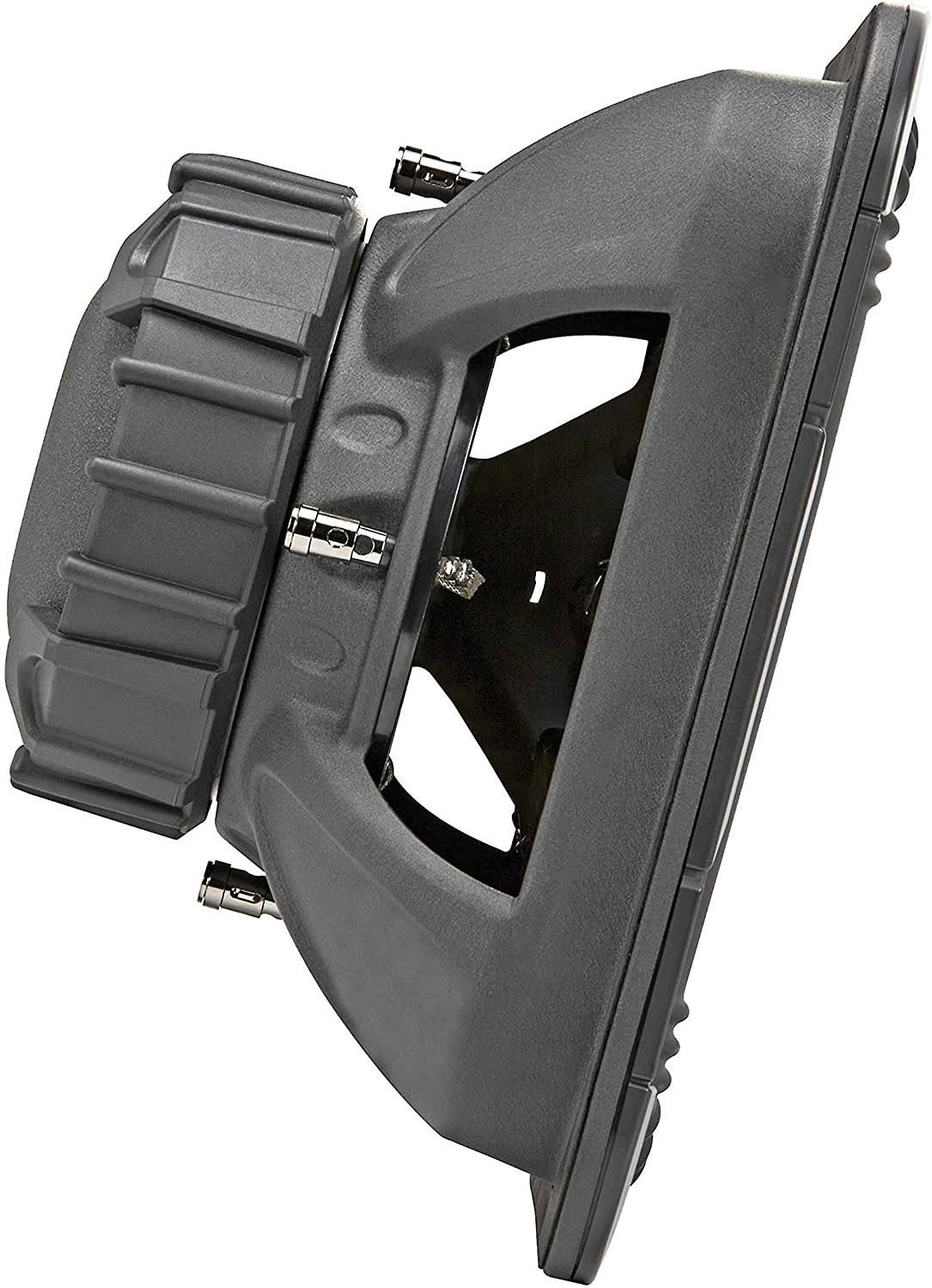

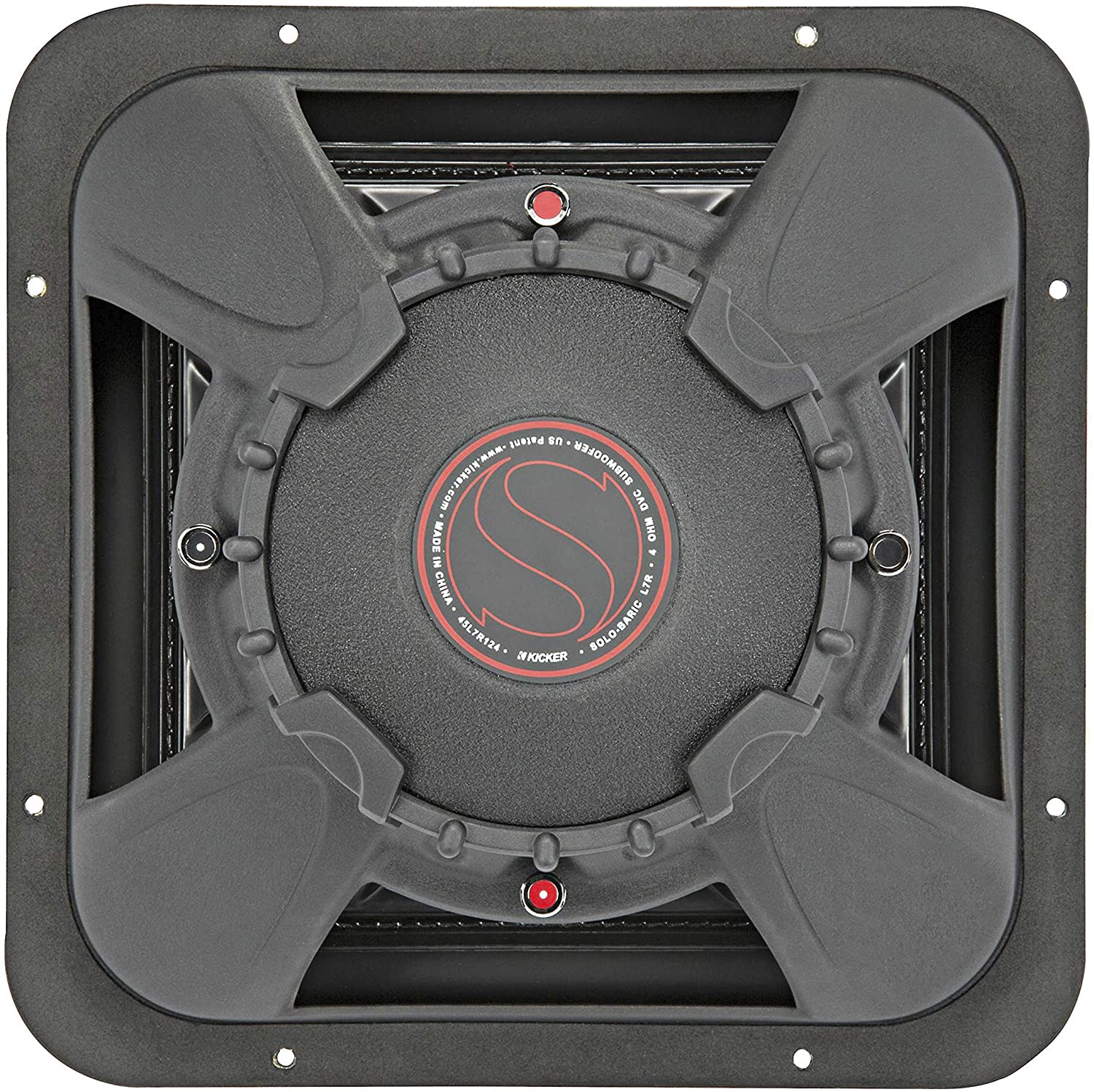

Kicker 45L7R124 12" Solo-Baric L7R Subwoofer - 4 Ohm
Kicker 45L7R124 12" Solo-Baric L7R Subwoofer - 4 Ohm
The engineers at KICKER invented the original square sub right here in Stillwater, Oklahoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!
- Dual Four-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
The L7R 12-Inch Subwoofer delivers optimal performance with 600 watts of recommended power, whether installed in a sealed or ported enclosure.
Specifications
Thiele/Small Parameters: 45L7R124 T/S Parameters
Product Dimension Sheet: 45L7R12 Dimensions
SIZE [in, cm]: 12, 30
IMPEDANCE [Ohms]: 4 DVC
Recommended Amplifier Power (watts RMS): 600
Peak Power (watts, per ANSI/CTA-2031-A): 1200
SENSITIVITY [dB 1w/1m]: 86.7
MOUNTING DEPTH [in, cm]: 6-7/8, 17.4
MOUNTING DIAMETER [in, cm]: 11-1/16, 28.1
MIN SEALED BOX VOL [cu. ft, L]: .88, 24.92
MAX SEALED BOX VOL [cu. ft, L]: 2, 56.64
MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
MAX VENTED BOX VOL [cu. ft, L]: 3.25, 92
1 - 12" Subwoofer
1 - install manual
2 - Kicker stickers
