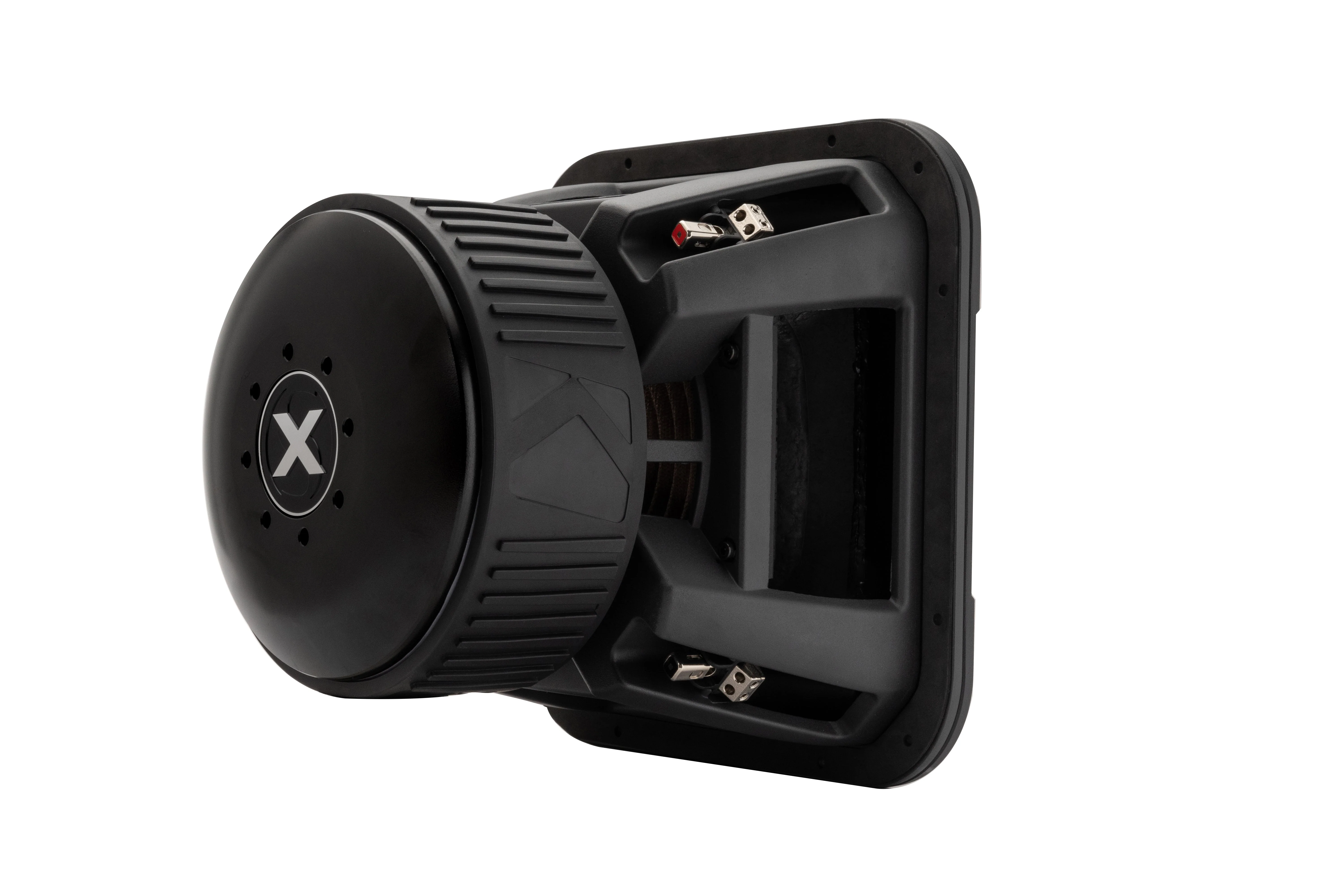

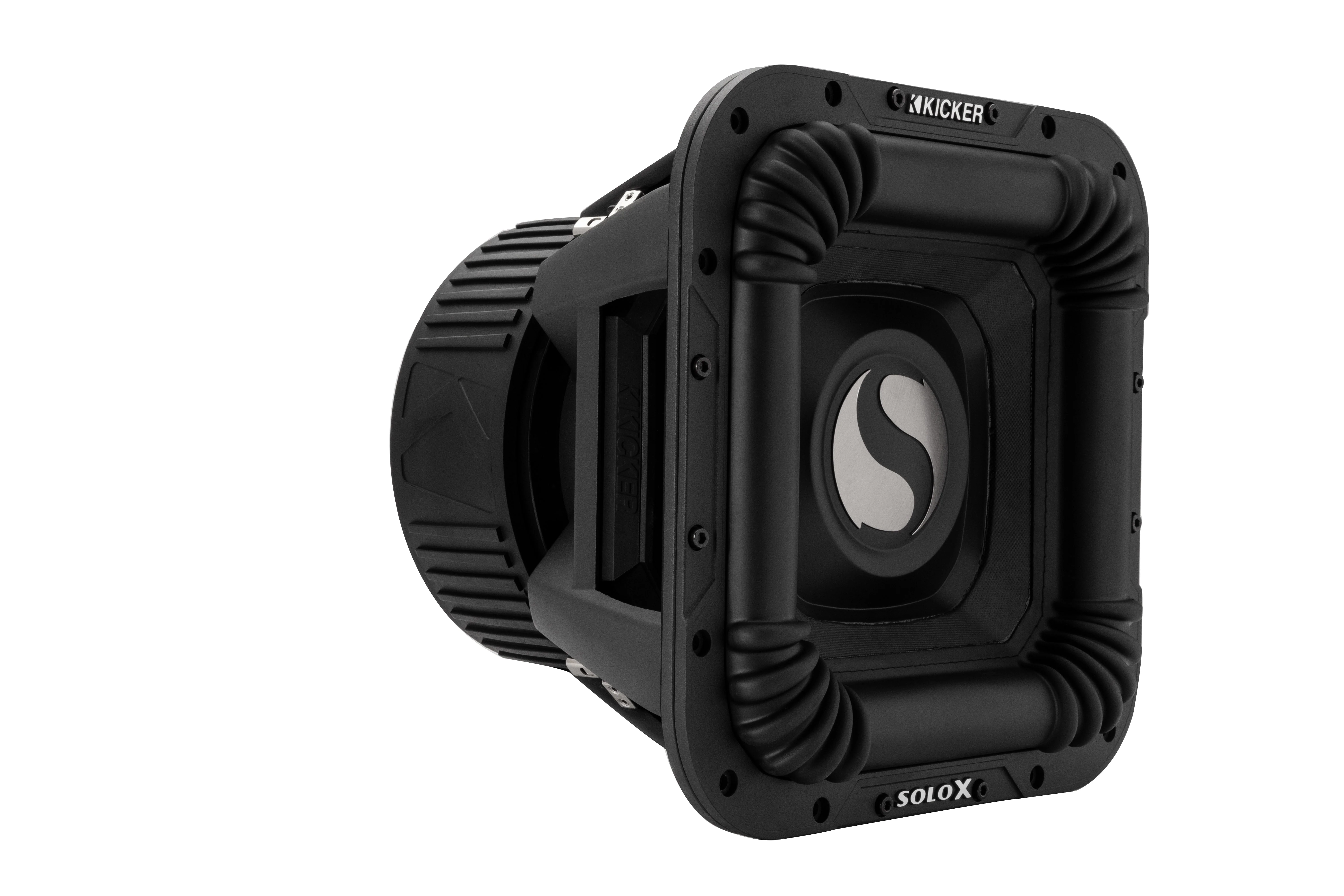

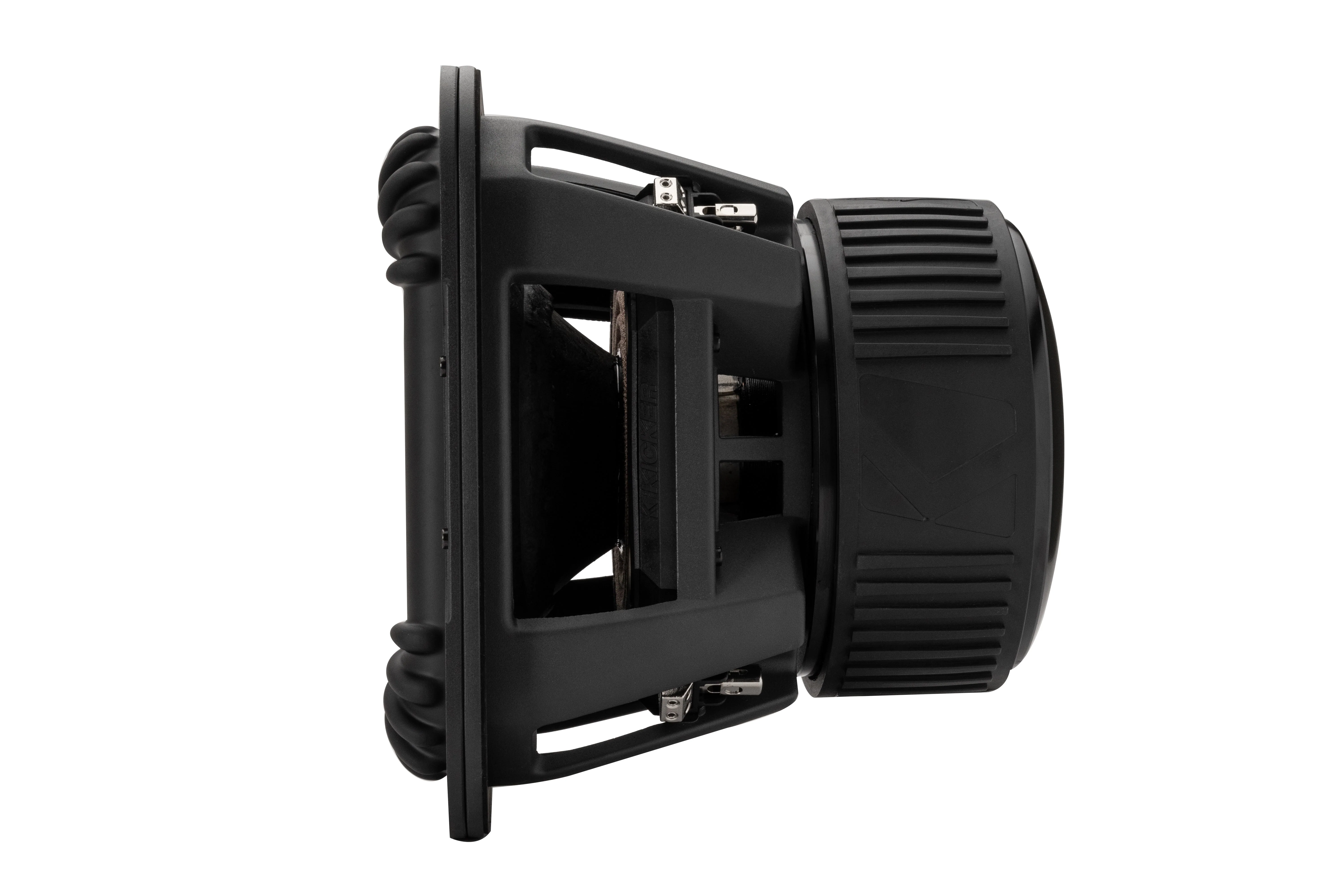

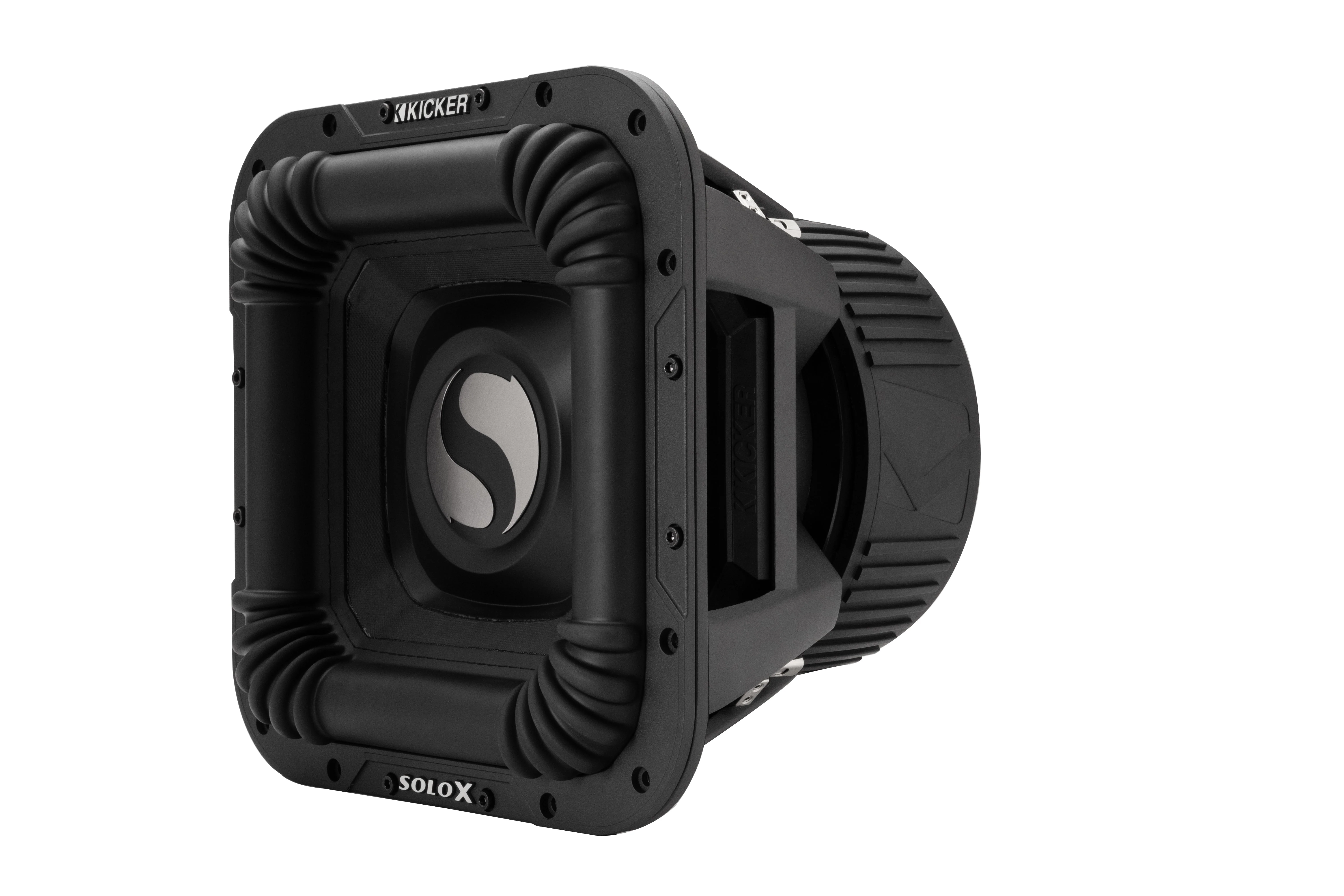

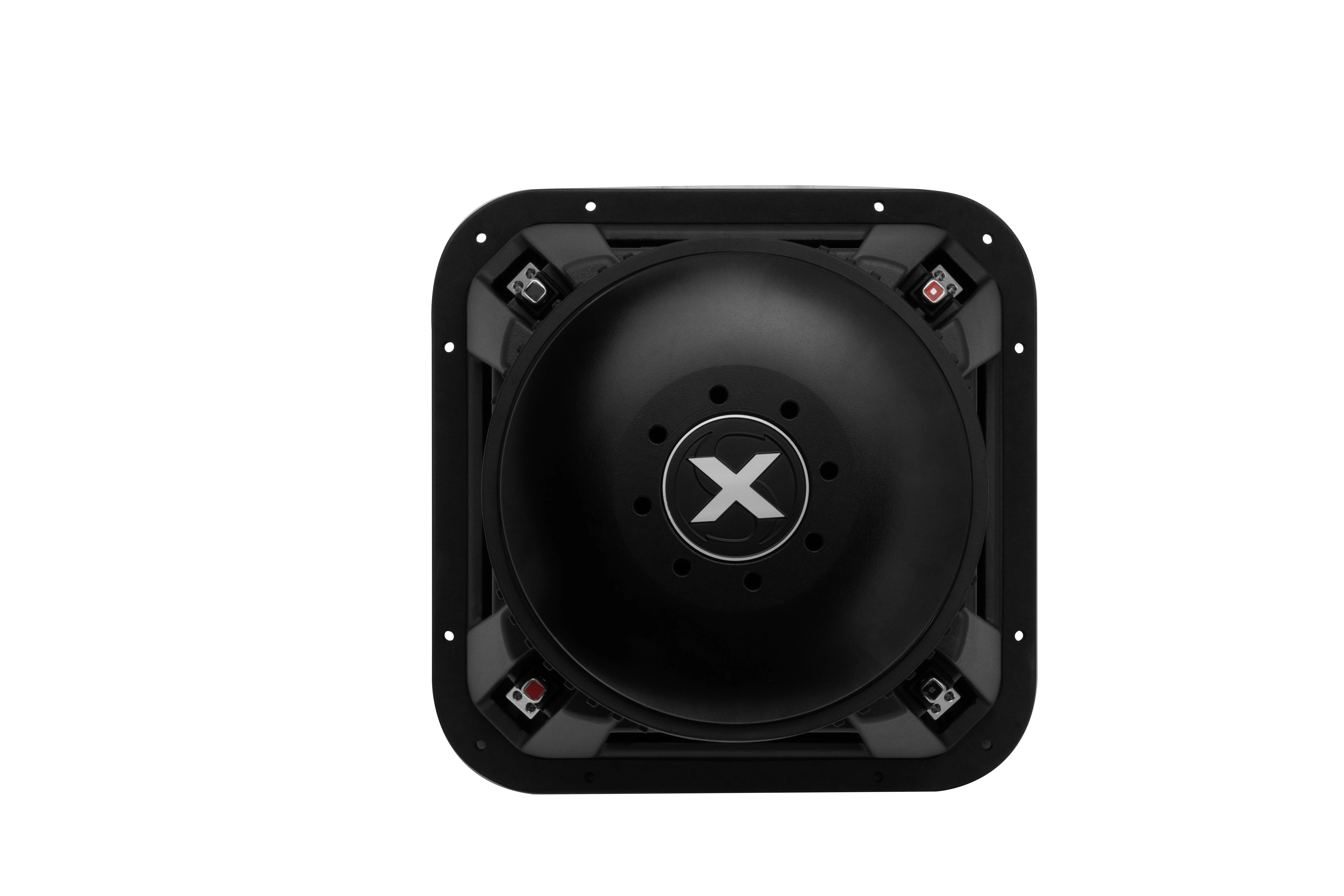

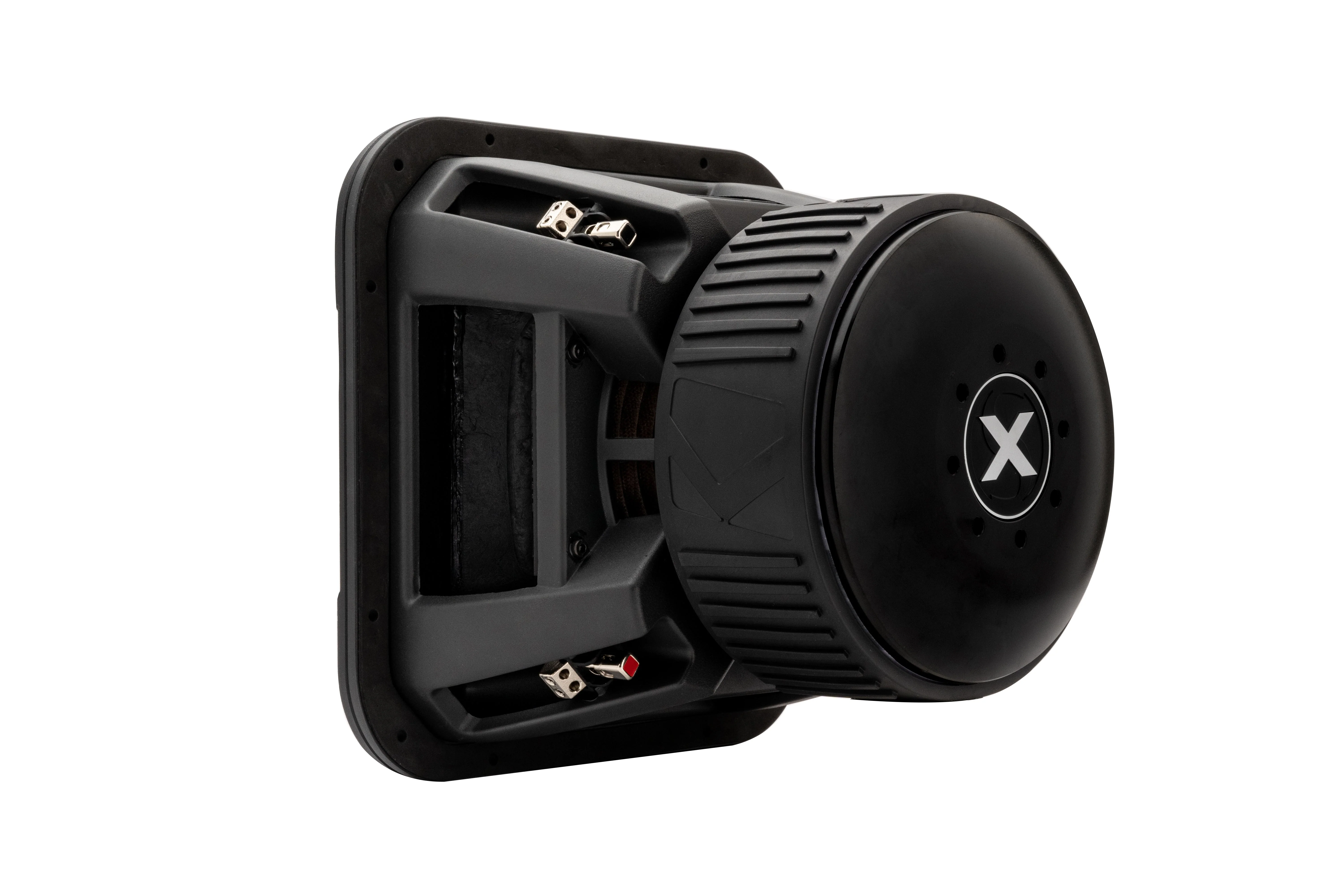

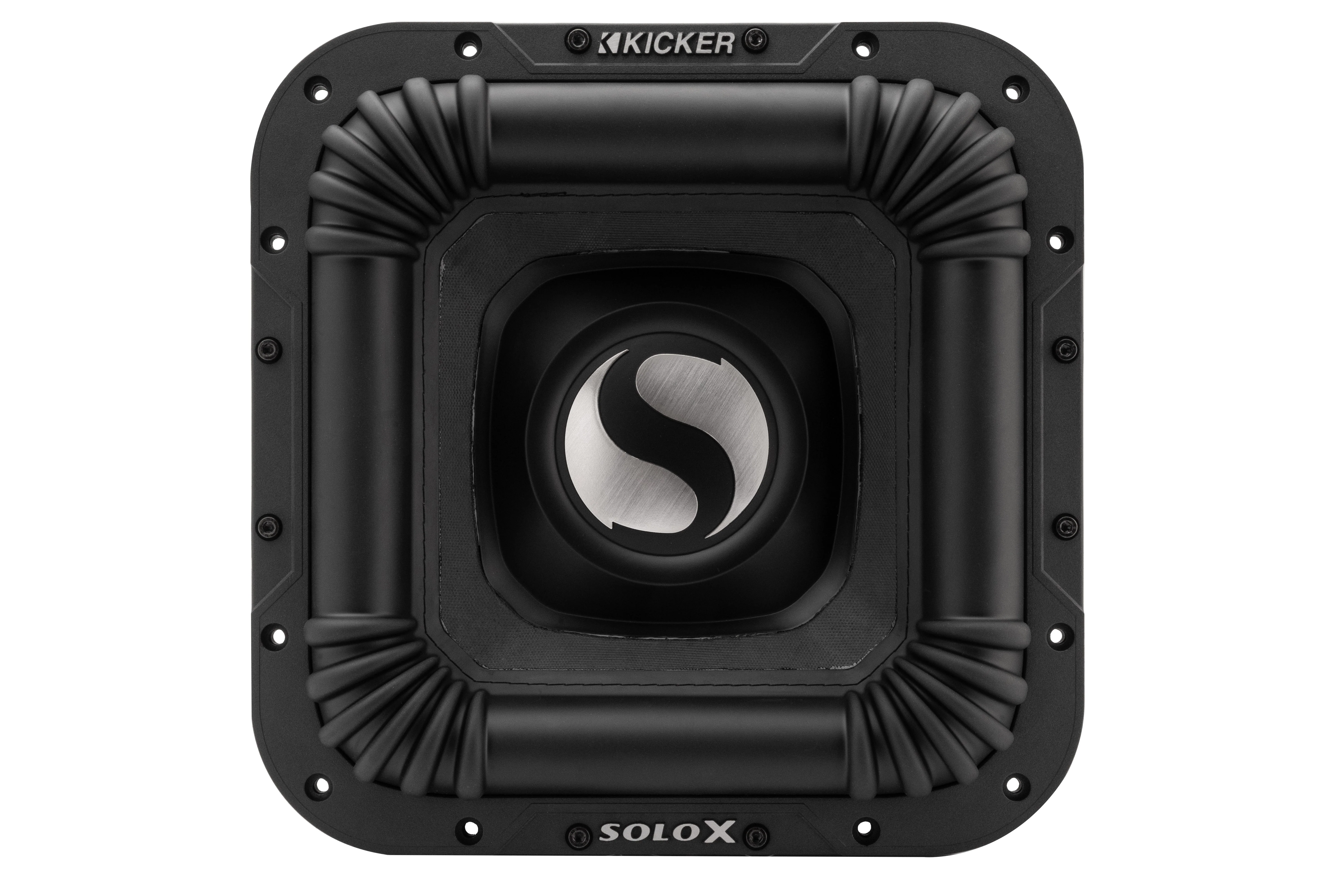

Kicker 49L7X122 12" SoloX L7X Ferrite Competition Subwoofer - 2 Ohm

Kicker 49L7X122 12" SoloX L7X Ferrite Competition Subwoofer - 2 Ohm

The KICKER SoloX L7X is our most advanced bass technology with extreme power handling – made to turn heads! Features
Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
Forced Air Cooling™
Three-inch, aluminum voice coil former
Dual-spider suspension
Double-pressed pulp cone
Heavy-duty UV-resistant Santoprene surround
Custom rubber magnet boot
Cast-aluminum basket
Single 8 AWG terminal and dual 8 AWG terminal block
Triple-Stacked Ferrite Magnet Specifications
Thiele/Small Parameters: 49L7X122 T/S Parameters
Product Dimension Sheet: 49L7X12 Dimensions
Rated Impedance (Ohms): 2 DVC
Rec Amp Power rms: 1000-2000
Frequency Response: 20-100
Magnet Diameter (in, cm): 8-11/16, 22
Total Magnet Weight (oz, kg): 406, 11.5
Voice Coil Diameter (in, mm): 3, 75
Voice Coil Winding Width (in, mm): 2.5, 62.5
Product Dimension Sheet: 49L7X12 Dimensions
Top Plate Thickness (in, mm): 0.5, 13
Xmax (in, mm): 1.25, 31.25
Mounting Cutout (in, cm): 11-1/16, 28.1
Mounting Depth (in, cm): 10-1/8, 25.7
Recommended Vented Box Volume (Cu. Ft., L): 3, 84.9
Port Opening (in x in, cm x cm): 3.5 x 13, 9 x 33
Port Length (in, cm): 36.5, 93
Vented Enclosure Tuning Frequency (Hz): 31 *Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
