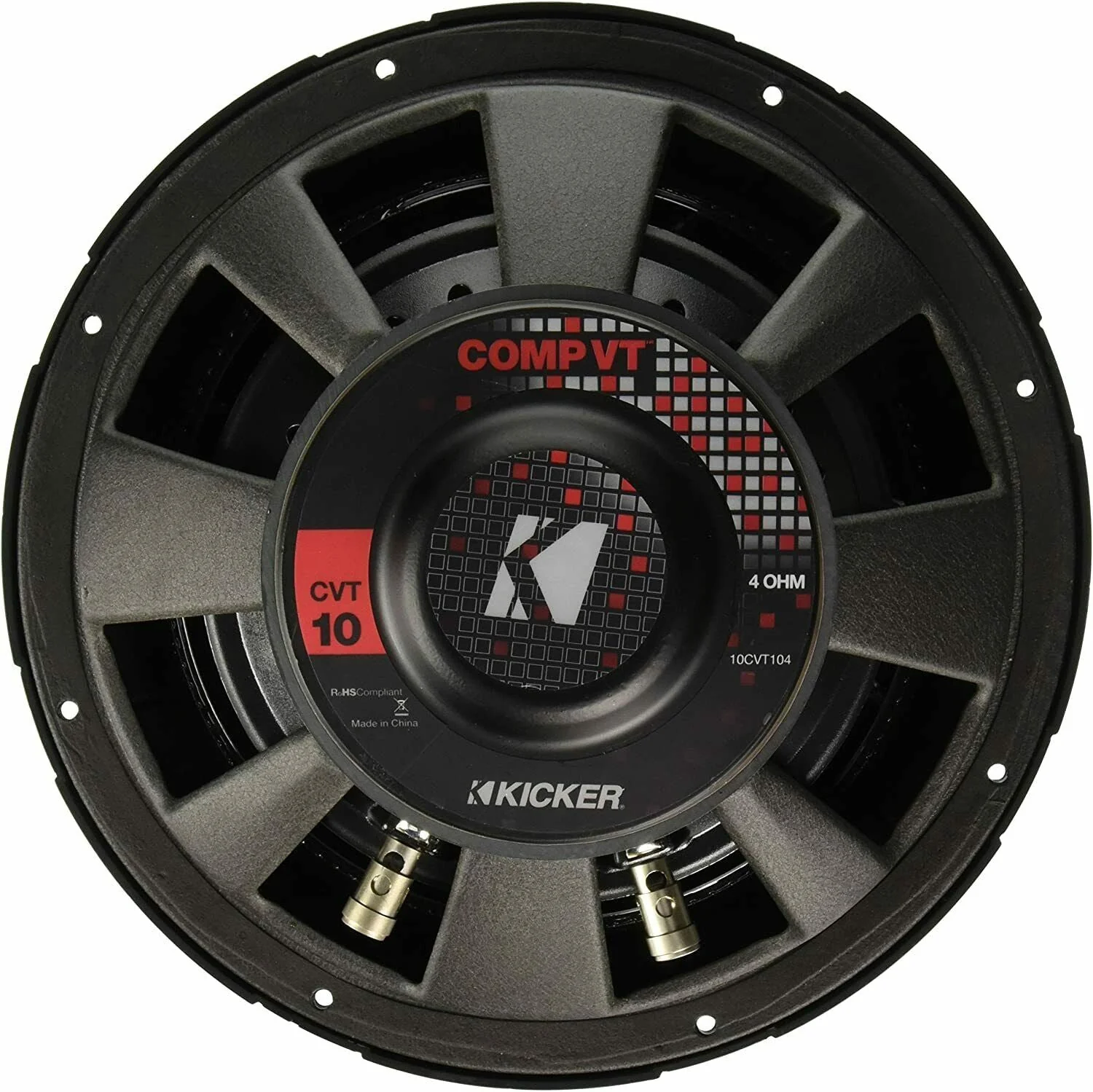

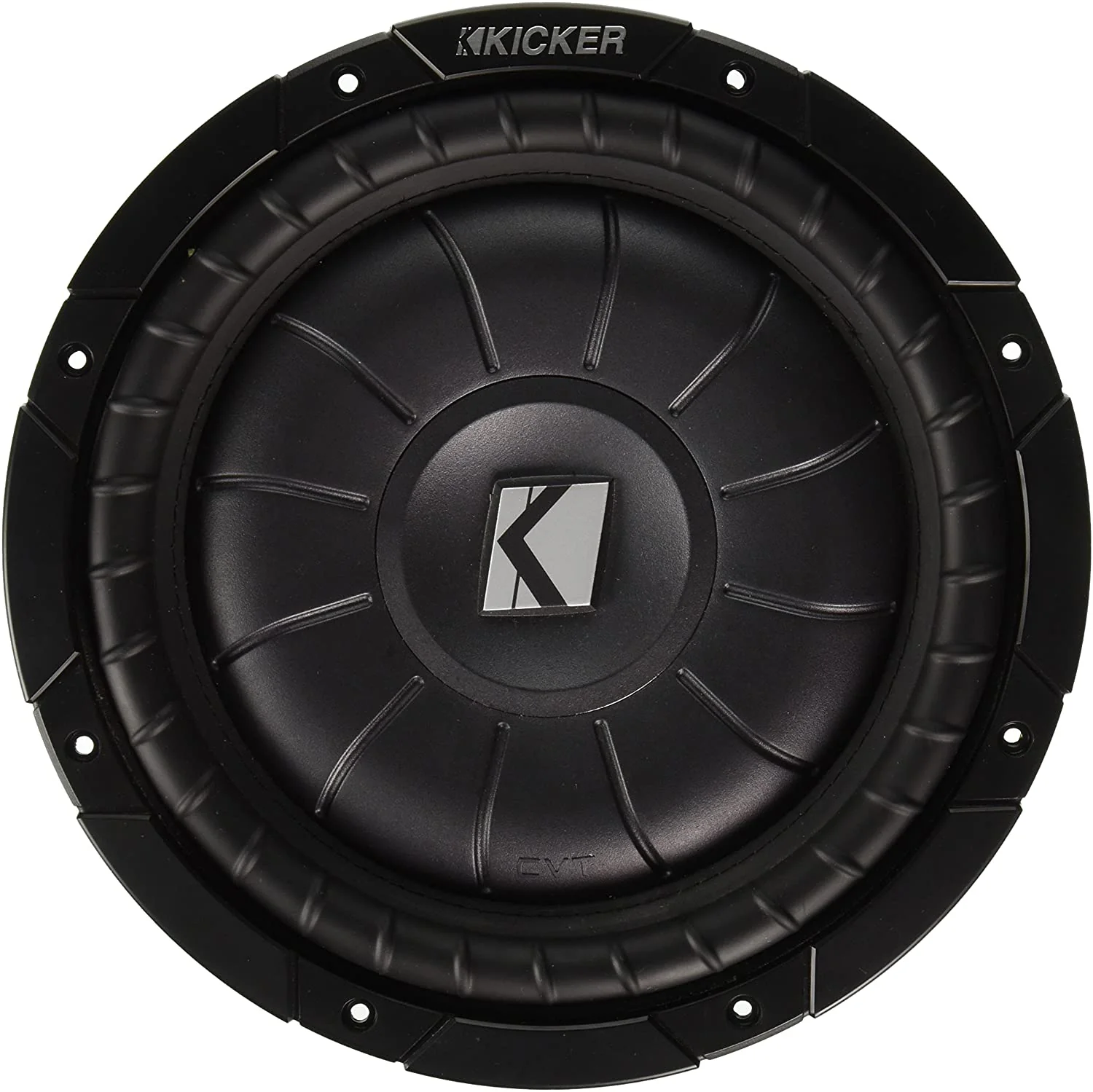

Kicker CVT104 43CVT104 10" CompVT Car Subwoofer, 800W Peak/400W RMS DVC Sub

Kicker 43CVT104 10 Inch CompVT Shallow Subwoofer - 4 Ohm

The CompVT 10-Inch Subwoofer is a 4Ω slimline driver. The woofer’s stiff, injection-molded, modified-spoke cone is shaped to provide maximum excursion from a slender basket, allowing better strength and durability. The CompVT 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters: TS Parameters PDF
Size [in, cm]: 10, 25
Impedance [Ohms]: 4 SVC
Recommended Amplifier Power (watts RMS): 350
Peak Power (watts, per ANSI/CTA-2031-A): 700
Sensitivity [dB 1w/1m]: 87.2
Mounting Depth [in, cm]: 4-1/4, 10.8
Mounting Diameter [in, cm]: 9-3/16, 23.3
Min Sealed Box Vol [cu. ft, L]: 0.8, 22.7
Max Sealed Box Vol [cu. ft, L]: 3, 85
Min Vented Box Vol [cu. ft, L]: 1.25, 35.4
Max Vented Box Vol [cu. ft, L]: 1.75, 49.6
