Hertz VENEZIA V1 Marine Subwoofer Amplifier
Hertz VENEZIA V1 Marine Subwoofer Amplifier
Venezia V1 is the most-powerful mono Hertz marine amplifier ever, featuring 1260 W @ 1Ω stable! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation. Venezia V1 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V1 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
Features
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 1Ω stable output stage providing high performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.

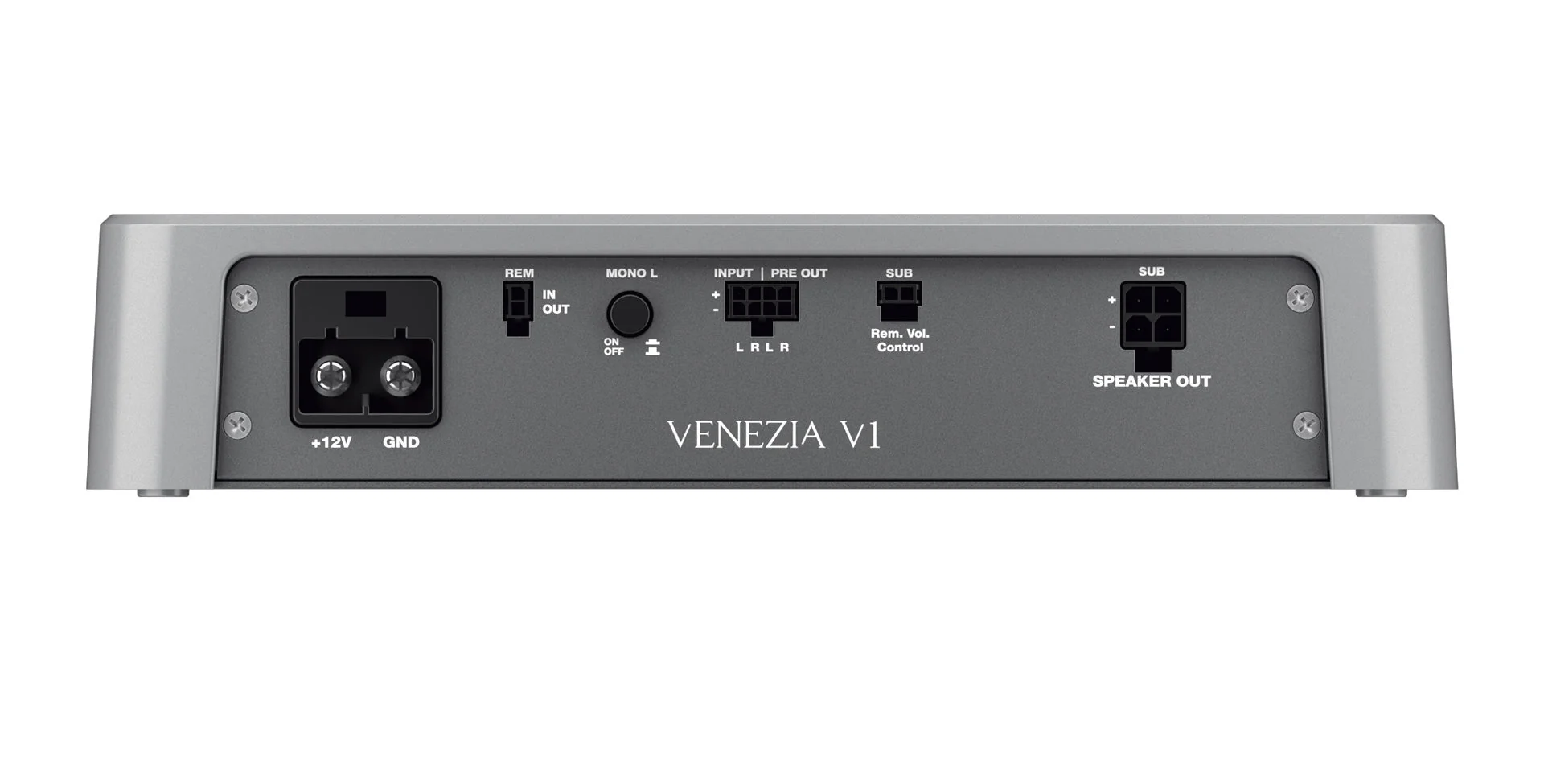

- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
Power Supply
Power supply voltage: 9 ÷ 16 VDC
ldling current (power ON/OFF): 1 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 52A
Remote In: 7 ÷ 15 VDC - 1 mA
Amplifier Stage
Distorsion - THD (100Hz @ 4Ω): <0,02%
Bandwidth: 10 ÷ 500 Hz
S/N Ratlo (A welghted @ 1 V): 102 dB
Damping factor (100Hz @ 4Ω): 500
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10kΩ
Load impedance (MIN): 1 Ω
Adjustable Crossovers: yes
Inputs / Filters
lnputs: PRE IN
Pre Out: Hi-Pass filter 50 ÷ 250 Hz @ 12 dB/Oct
Filters: Yes
By-pass: Yes (Full)
Lo-Pass: 50 ÷ 500 Hz @ 24 dB/Oct
Phase (adjust): (0 ÷ 180°)
Subsonic: 25 Hz @ 24dB/Oct.
Bass boost 50 Hz (adjust): (0 ÷ 12) dB
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
1Ch: 700 W (4Ω)
1Ch: 1260 W (2Ω)
1Ch: 1260 W (1Ω)
Total Power: 1260 W
Physical Specifications
A: 10.63"
B: 9.45"
C: 7.28"
D: 6.10"
E: 2.12"
Weight: 5.99 lbs.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hertz VENEZIA V1 Marine Subwoofer Amplifier
Venezia V1 is the most-powerful mono Hertz marine amplifier ever, featuring 1260 W @ 1Ω stable! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation. Venezia V1 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V1 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.
Features
- Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
- ADC (Advanced D-Class) Technology 1Ω stable output stage providing high performance with superior efficiency.
- Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
- Balanced fully-differential input circuitry to reject electromagnetic disturbances.
- Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
- Short-circuit, overload, and thermal protections with auto-resetting.
- Plug&Play Input and Output connections with safe-lock.
- Proprietary Plug&Play Power Supply Connector with safe-lock.
Specifications
Power Supply
Power supply voltage: 9 ÷ 16 VDC
ldling current (power ON/OFF): 1 A / 0.04 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 52A
Remote In: 7 ÷ 15 VDC - 1 mA
Amplifier Stage
Distorsion - THD (100Hz @ 4Ω): <0,02%
Bandwidth: 10 ÷ 500 Hz
S/N Ratlo (A welghted @ 1 V): 102 dB
Damping factor (100Hz @ 4Ω): 500
Pre-ln sensitivity: 0.2 ÷ 5 VRMS
Pre-ln impedance: 10kΩ
Load impedance (MIN): 1 Ω
Adjustable Crossovers: yes
Inputs / Filters
lnputs: PRE IN
Pre Out: Hi-Pass filter 50 ÷ 250 Hz @ 12 dB/Oct
Filters: Yes
By-pass: Yes (Full)
Lo-Pass: 50 ÷ 500 Hz @ 24 dB/Oct
Phase (adjust): (0 ÷ 180°)
Subsonic: 25 Hz @ 24dB/Oct.
Bass boost 50 Hz (adjust): (0 ÷ 12) dB
Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
1Ch: 700 W (4Ω)
1Ch: 1260 W (2Ω)
1Ch: 1260 W (1Ω)
Total Power: 1260 W
Physical Specifications
A: 10.63"
B: 9.45"
C: 7.28"
D: 6.10"
E: 2.12"
Weight: 5.99 lbs.
