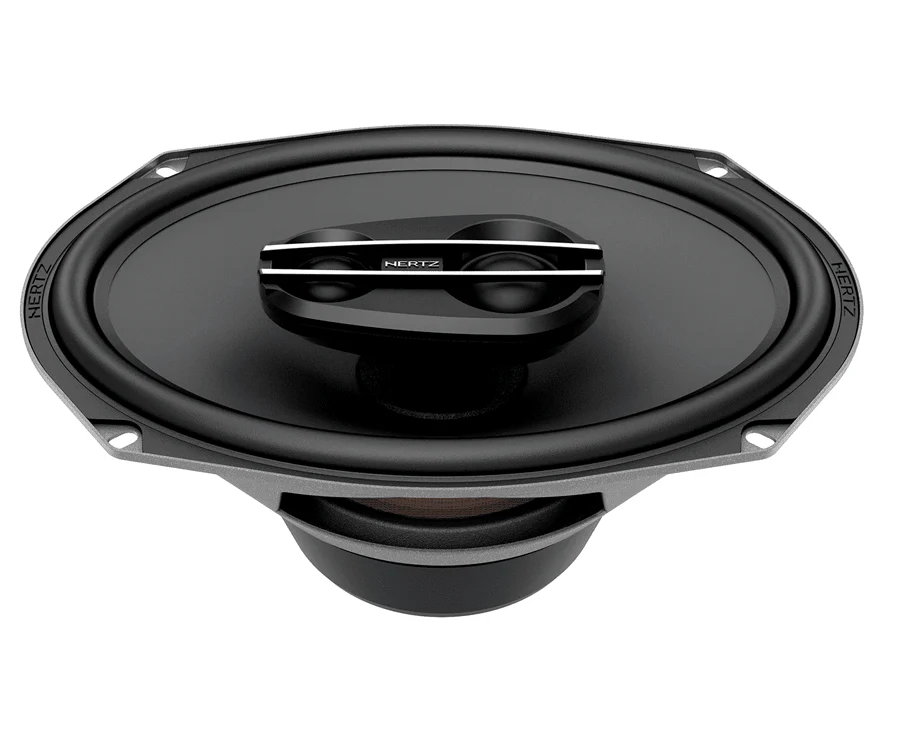

Hertz CPX 690 Cento Series 6x9" 3-Way Coaxial Speakers
Hertz CPX 690 Cento Series 6x9" 3-Way Coaxial Speakers
The three-way car audio coaxial CPX 690 is the best solution for enthusiasts who love highly dynamic listening with low engaging frequencies and want to make the most of the rear deck mount. Tweeter and Supertweeter both feature Neodymium magnet and Tetolon dome, 32 mm and 24 mm respectively. The stylish faceplate is designed to maximize off-axis emissions and thus optimizing horizontal installation. As for the CPX 165, the CPX 690's Tweeter and Supertweeter boasts Radial Venting System technology for outstanding cooling and acoustic performance. The robust basket with radial ventilation keeps operating temperatures low. The supplied grille is made of a high resistance ABS plastic support and metallic mesh to ensure a high level of protection with a Hi-tech design
Features

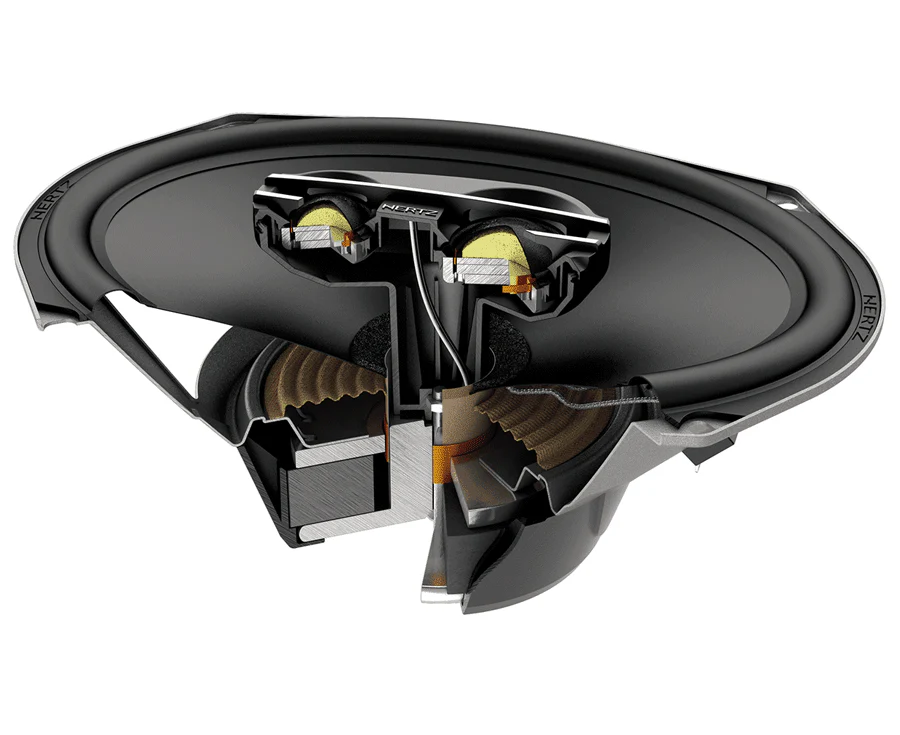

- 1. Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
- Wide rubber suspension designed for a long excursion and excellent sound damping.
- High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.

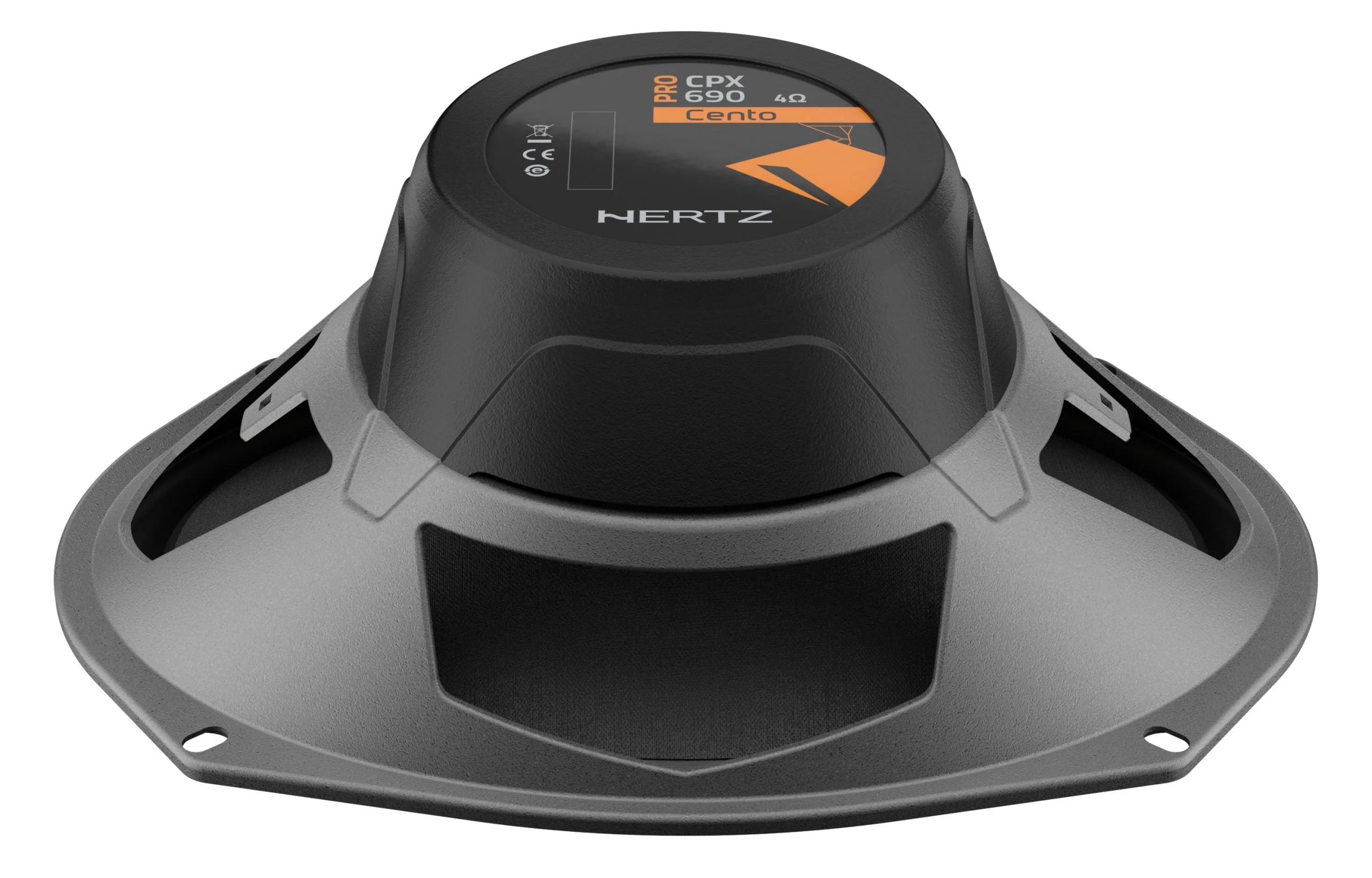

- Metal finished basket combined with an anti-vibration rubber magnet cover for an overall damping of spurious vibrations.
- Soft Tetolon fiber dome Neodimium tweeter featuring a 28 mm mobile voice coil, for a distortion-free reproduction of mid-high frequencies.
- Tetolon fiber Neodimium Supertweeter featuring a 20 mm mobile voice coil, to compensate for the natural fall of high frequency response in horizontal installations.
- Faceplate geometry optimized with FEM (Finite Element Modeling) technology for a linear frequency response in off-axis installations.

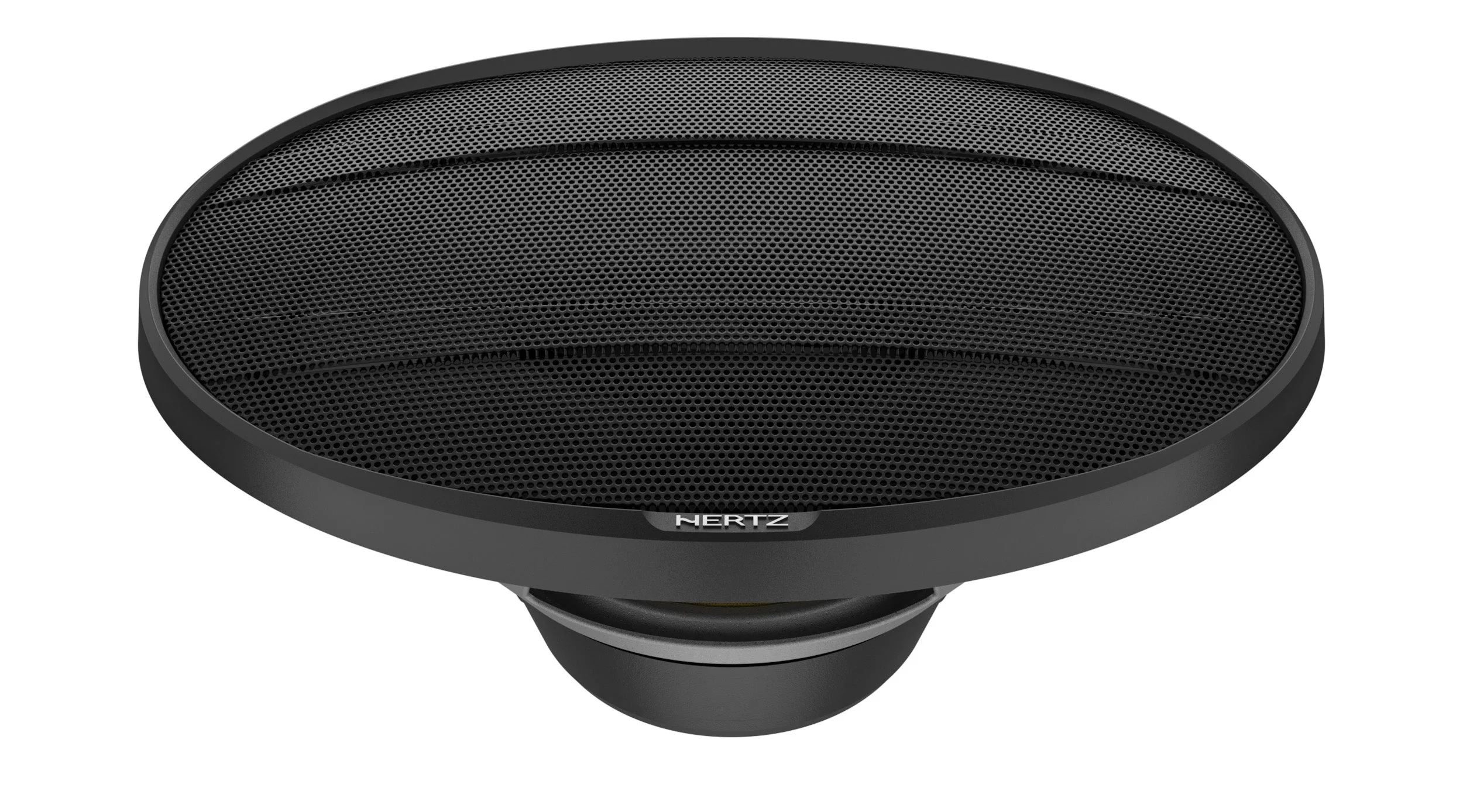

- Stylish grille with high resistance ABS plastic frame with metal finish combined with a protective metallic mesh.
Technical Specifications
Component: Coaxials
Size mm (in.): (6 x 9)
Power Handling - Continuous W: 120
Power Handling - Peak W: 360
Impedance Ohm: 4
Tweeter diaphragm mm (in.): 32 (1.26)
Woofer Voice Coil Ø mm (in.): 30 (1.2)
Tweeter Voice Coil Ø mm (in.): 28 (1.1)
Frequency Response Hz: 35 ÷ 24k
Woofer Magnet size D x d x h mm (in.): 90 x 40 x 20 (3.54 x 1.57 x 0.79)
Tweeter Magnet size D x h mm (in.): 27,8 x 3 (1.09 x 0.12)
Weight of one speaker kg (lb.): 1,63 (3.59)
Woofer Magnet: Ferrite
Tweeter Magnet: Neodymium
Cone: Water repellent pressed paper
Dome: Tetolon
Xmech mm (in.): 7,5 (0.3)
Electro-acoustic Specifications
D mm: 172
Re Ohm: 3,4
Fs Hz: 68
Le mH: 0,53
Vas I: 15,8
Mms g: 26,5
Cms mm/N: 0,21
BL T*m: 6,0
Qts: 0,77
Qes: 1,10
Qms: 2,7
Spl dB: 94
Physical Specifications
A: 237,5 mm: 9.35 in.
B: 225 mm: 8.86 in.
C: 103 mm: 4.06 in.
D: 85 mm: 3.35 in.
E: 269 mm: 10.55 in.
F: 28,5 mm: 1.12 in.
