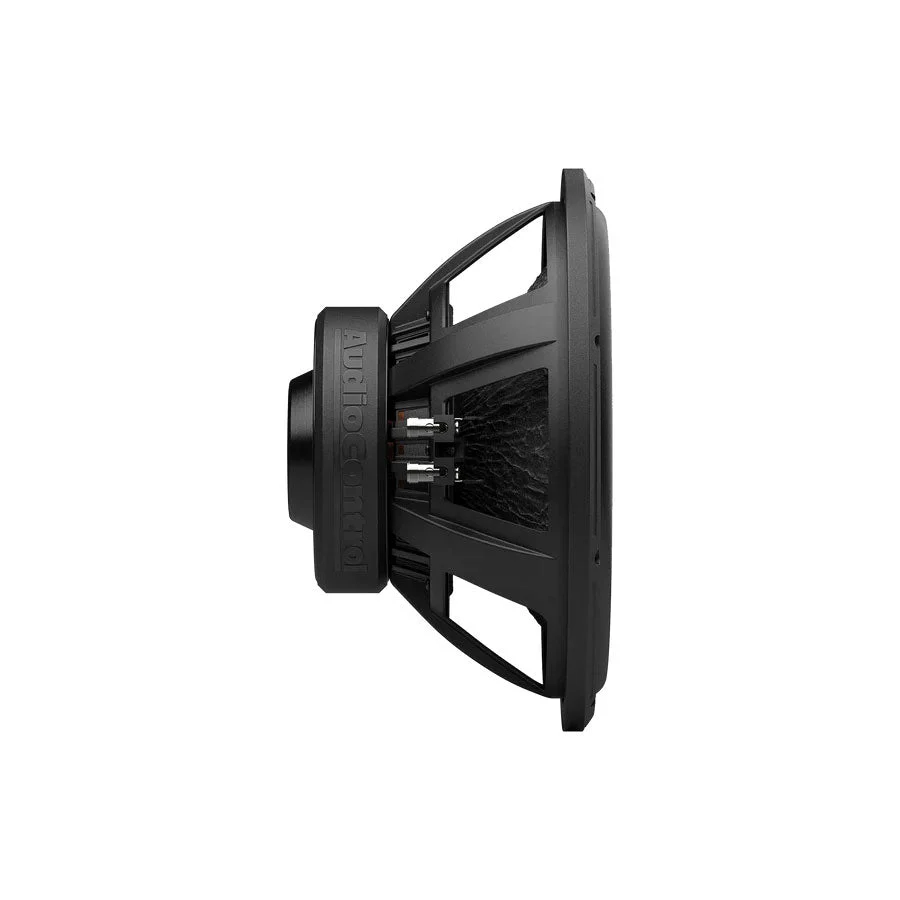

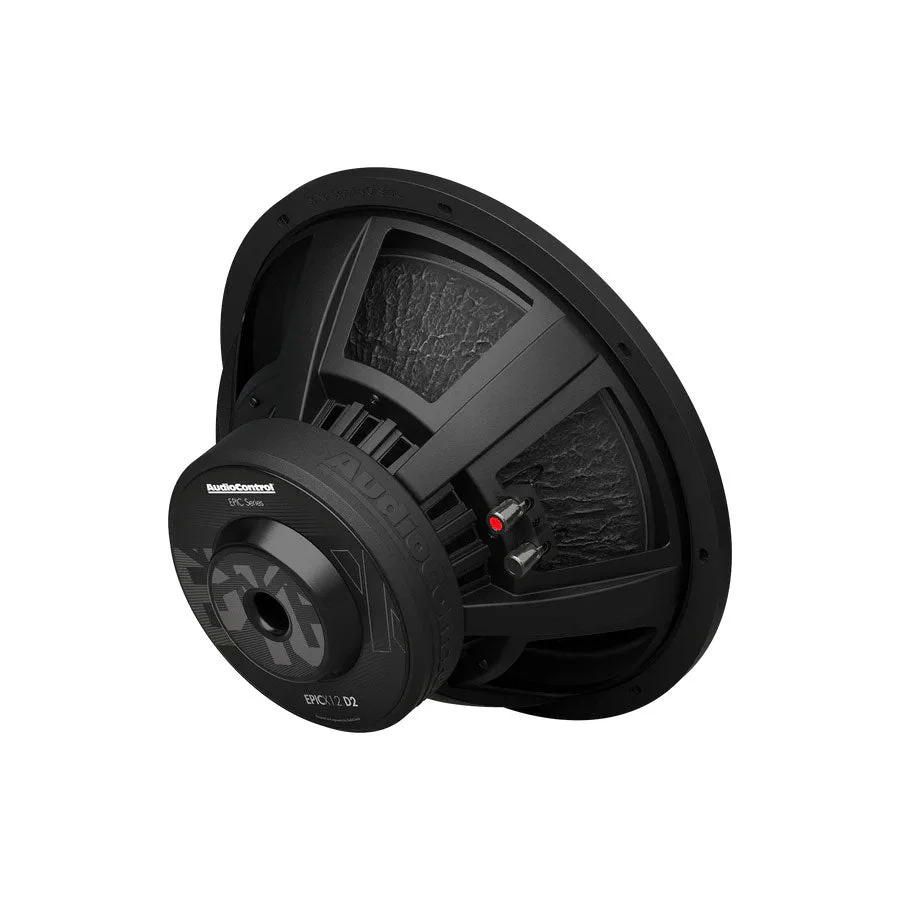

AudioControl EPICX12D4 EPICX Series 12" Subwoofer
AudioControl EPICX12D4 EPICX Series 12" Subwoofer
Experience the perfect fusion of relentless output and refined audio quality with the all-new EPICX Series Subwoofers from AudioControl. Built for those who demand more than just loud, these subs deliver tight, accurate, low-end response that hits hard and stays clean, even at extreme volume.
Precision-engineered from the ground up, these subwoofers feature non-pressed paper cones, heavy-duty motor structures, and high-quality components that withstand heavy demand. Every element is optimized for output, efficiency, and durability, producing a sub that overachieves at every level!
If you’re pushing the limits in competition or want a system that dominates on the street, EPICX Series is made for you. These subs handle power without breaking a sweat, delivering the kind of deep, aggressive bass that turns heads.
Crafted with AudioControl’s legacy of build quality and innovative design at its core, the EPICX Series brings performance without sacrificing clarity. Built for those who love loud. No gimmicks — just raw, responsive performance you can count on.
Features
- Composite Foam Surround: Delivers smooth controlled bass, ensuring a heart-pounding sound that doesn't compromise.
- High-Precision Motor Assembly: Maximizes efficiency and output, converting amplifier power into pure, impactful bass.
- Rigid Steel Basket: Provides unwavering strength and eliminates resonance for tighter bass and clearer sound.
- High-Temperature, Lightweight Voice Coil: Ensures lightning-fast, dynamic bass response and unwavering reliability under extreme power.
- One-Piece Dust Cap Design: Enhances cone rigidity for consistent, accurate, distortion-free bass reproduction.
- Non-Pressed Paper Cone: Delivers organic warmth, natural depth, and rich low-end character to your bass.
- Large-Gauge, Quick-Release Black Nickel Terminals: Ensures maximum conductivity and a rock-solid, vibration-proof connection for consistent power delivery.
- Pair with The EPICENTER: Unleash unmatched bass, as the EPICX Series is engineered to seamlessly integrate with AudioControl's legendary bass restoration processor for mind-blowing low frequencies.
Specifications
Speaker Size: 12 in / 300 mm
Power: 500W RMS / 750W Max
Impedance: 2 or 4 ohms
Voice Coil: 2.38 in
Resonance Frequency: 30.1 Hz
Efficiency: 86.6 dB
Magnet Dimensions: 6.14 x 2.95 x 0.98 in / 156 x 75 x 25 mm
Dimensions
Overall Diameter: 12.4 in / 316 mm
Cut Out Diameter: 11.06 in / 281 mm
Mounting Depth: 6 in / 153.8 mm
Mounting Height: 1 in / 24 mm
Motor Diameter (w/ Cover): 6.4 in / 162 mm
PORTED ENCLOSURE
External Dimensions: 23.75″ W × 16.5″ H × 12.5″ D
Net Internal Volume: 2 ft3
Exterior Volume: 2.83 ft3
Material Thickness: 0.75 in
Port Area: 22.5 sq in
Port Inlet: 1.2″ W × 15″H
Port Length: 23.75 in
Tuning Frequency: 33 Hz
SEALED ENCLOSURE
External Dimensions: 19″ W × 14.5″ H × 11″ D
Internal Volume: 1.25 ft3
Material Thickness: 0.75 in
In the Box
(1) EPICX12D4 Subwoofer
User Guide
