Mosconi Gladen DSP 8TO12 Aerospace

Mosconi Gladen

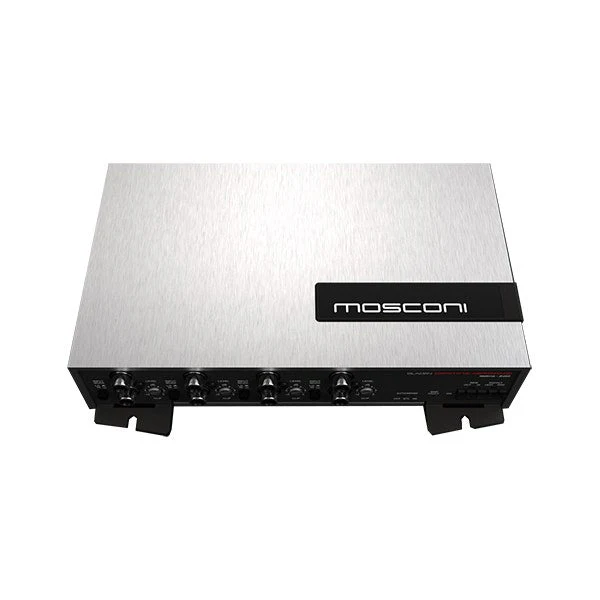

DSP 8TO12 Aerospace The Digital Signal Processor with 8 inputs and 12 outputs and sample rate 192KHz / 24bit.

• Digital input and output (Toslink)
• Coax input (RCA) and BT input (with MOS-BTS)
• Highest resolution, e.g. time delay in 0,02 msec/step
• All settings in real-time
• USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps
• Low-Level or High-Level input with auto-sense (only by High-Level)
• Aux input with auto-sense for stereo signal
• Hands-free and mobile navigation
• 4 presets
• Mixer matrix to realize all possible mixtures and couple input and output channels as desired
• Intuitive User Interface and video tutorials to avoid an instruction book.
• Operating also without mouse, only with keys for an easy adjusting in the car
• DSP Technology made by cooperation MOSCONI-GLADEN

Designed and made by MOSCONI, Italy Technical Features:

• Input Mode: Low Level (LL) / High Level (HL)
• Input Impedance: > 12KOhm (LL) / 47Ohm (HL)
• Input Sensitivity: 1.2Vrms ÷ 8Vrms (LL) / 3Vrms ÷ 20Vrms (HL)
• Input Voltage Regulation: -16.5dB ÷ 0dB
• Max Output Signal: 8Vrms
• Output Impedance: 600 Ohm
• THD Distortion: less than 0.003% @ 4Vrms
• Frequency Response: 10Hz ÷ 63KHz (within -0.1dB)
• Channel Separation: >90dB (@ 1KHz)
• Supply Voltage: 11V ÷ 15V
• Current Consumption: 0.9A @ 12V
• Autosense: OFF / BTL / SE
• Remote Output: 100mA max.
• Communication Peripherals: USB,RCD/RC-MINI (optional), MOS-BTM (optional)
• Size: 200 x 125 x 40 mm (including fixing feet)
