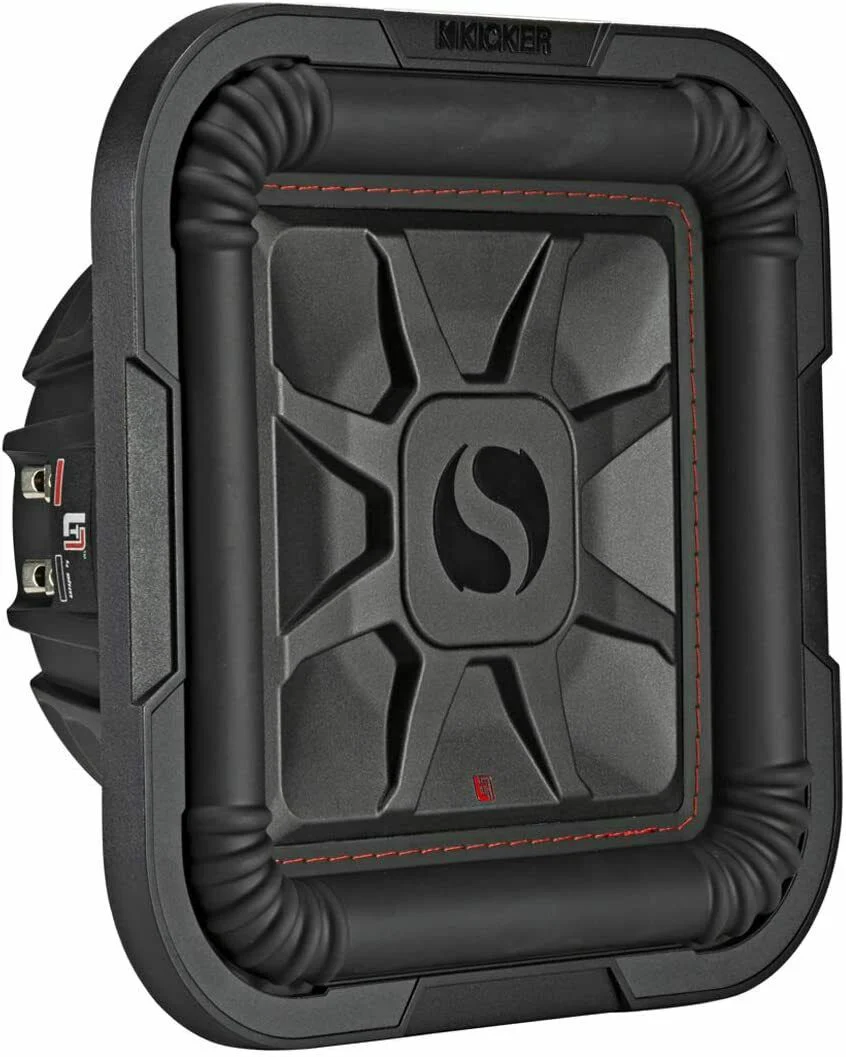

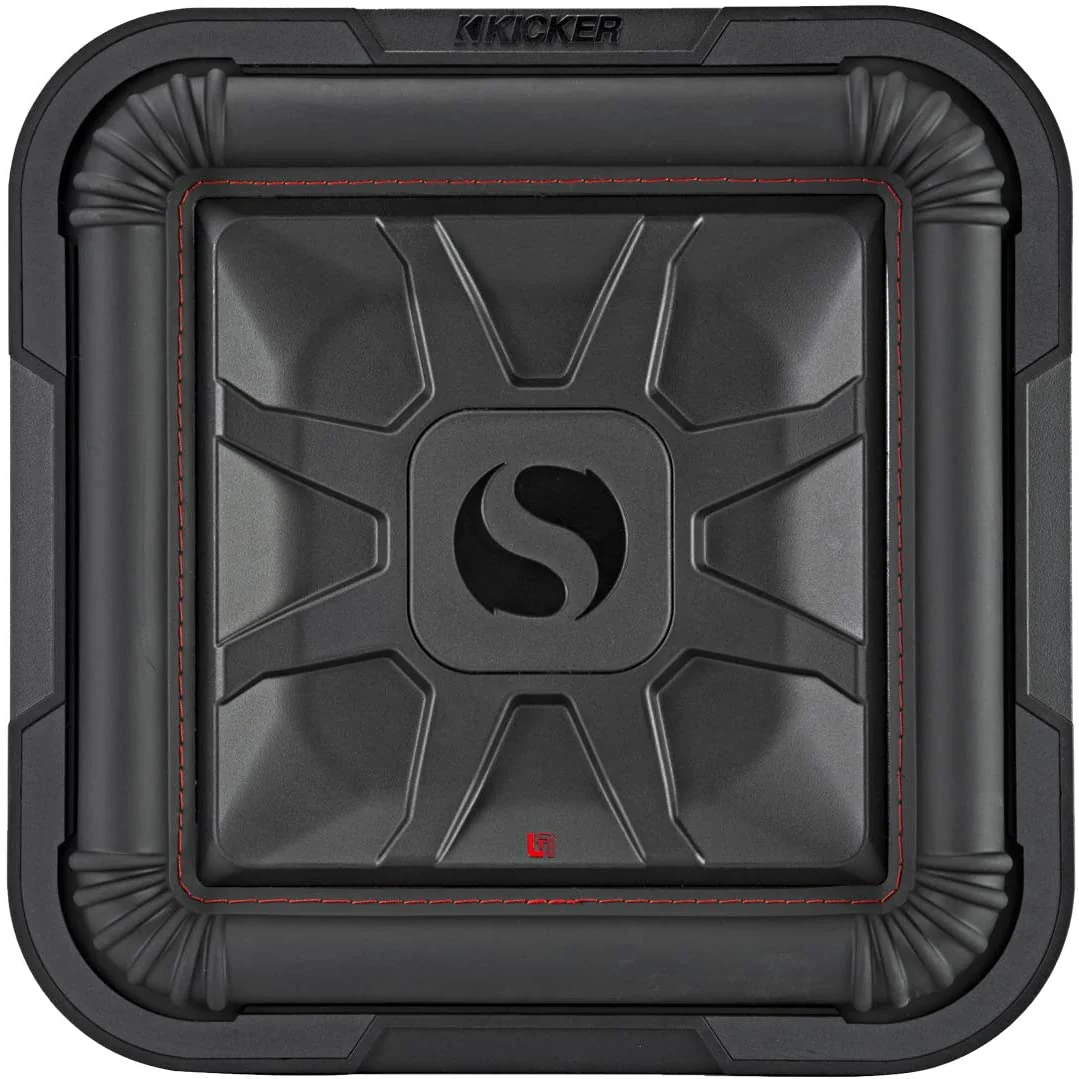

Kicker 46L7T82 Car Audio L7T Shallow Mount 8" Sub Square L7 Subwoofer L7T82

Kicker 46L7T82 8 Inch Solo-Baric Dual Voice Coil Subwoofer - 2 Ohm

The only thing thin about the L7T thin subwoofer is the mounting depth. Whether it’s on the road or trail, these tough subs work perfectly in nearly anything with a motor. The L7T 8-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils. With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.

Features

Uses a Sealed or Ported Enclosure
Square Sub Design Moves 20% More Air Than Round Subwoofers
Easily Mounts Under or Behind a Seat
Dual Voice Coil Design
Ribbed Santoprene Surround Resists Heat And Degrading
Bumped Top Plate For More Excursion & Smoother Performance
SoloKon™ Cone With 360-Degree Back Bracing
UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
Durable Steel Basket *The L7T 8-inch Subwoofer works best with a sealed or ported enclosure and 350 watts of recommended power. See below for more details.

Specifications

Thiele/Small Parameters: TS Parameters PDF
Size (IN.,CM): 8, 20
Impedance (OHMS): 2 DVC

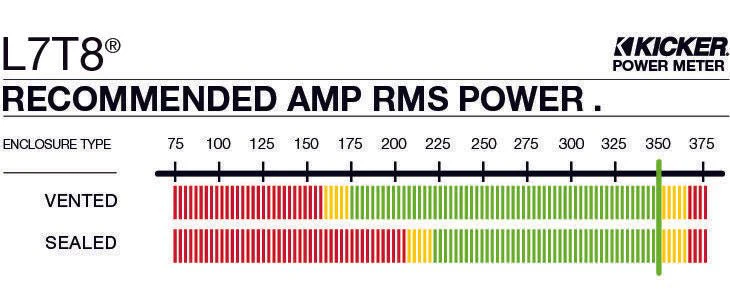

Recommended Amplifier Power (watts RMS): 350
Peak Power (watts, per ANSI/CTA-2031-A): 700
Sensitivity (dB 1w/1m): 84.835
Frequency Response (Hz): 30-100
Mounting Depth (IN.,CM): 2 3/4, 7
Mounting Cutout, Square (IN.,CM): 7-3/8, 18.8
Min Rec Sealed Box Volume (CU. FT., Liters): 0.2, 5.66
Max Rec Sealed Box Volume (CU. FT., Liters): .75, 21.2
Min Rec Vented Box Volume (CU. Ft., Liters)**: .8, 22.7
Max Rec Vented Box Volume (CU. Ft., Liters)**: 1.2, 34 *Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details. **Port Volume Excluded.
