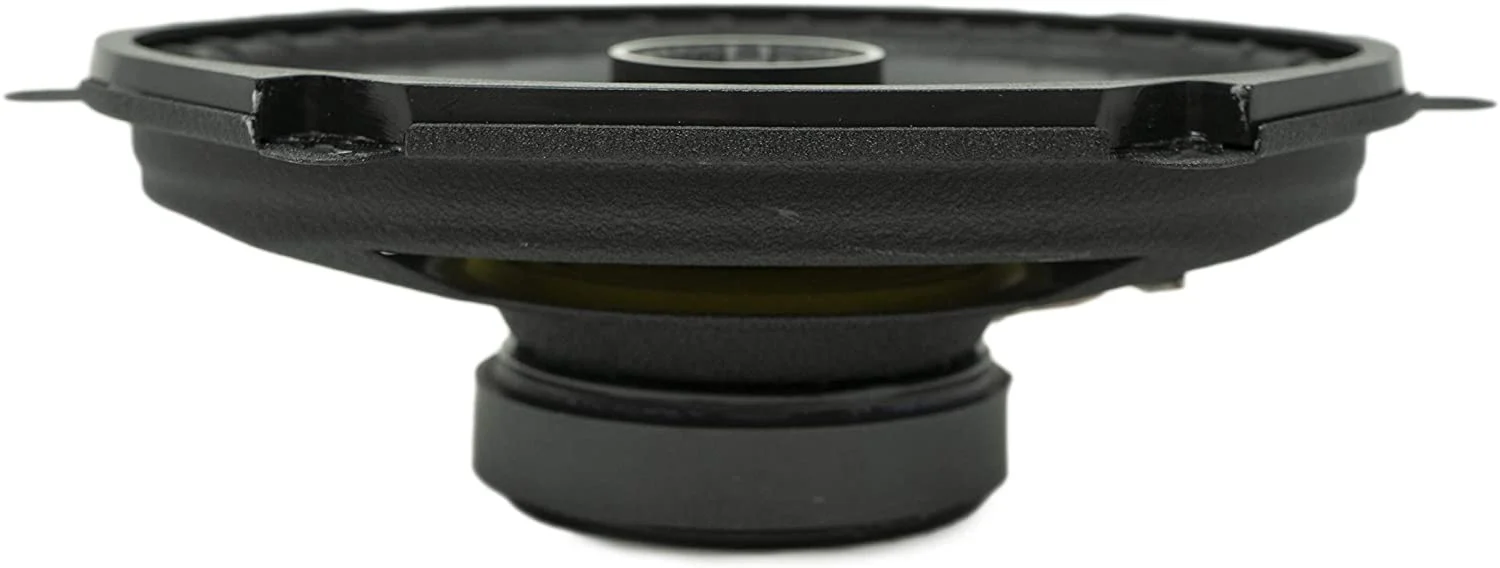

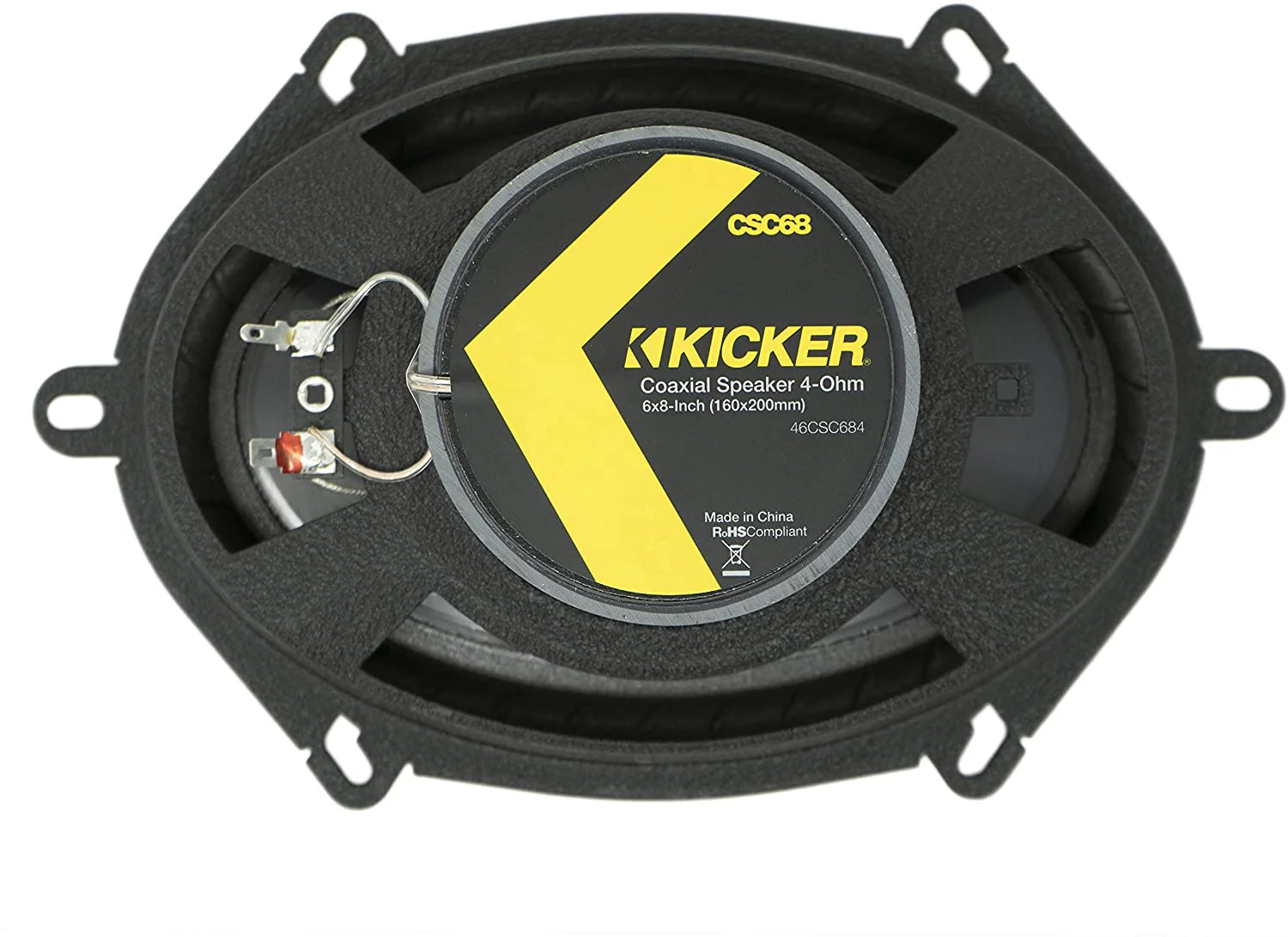

Kicker 46CSC684 CS Series 6x8 Inch Coaxial Speakers

Kicker 46CSC684 CS Series 6x8 Inch Coaxial Speakers

CS-Series 6x8-inch Coaxial Speakers are the perfect way to upgrade your factory system. CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles. Features

• Fits nearly every car made
• Zero-protrusion tweeters to fit nearly any factory depth
• Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
• UV-treated poly-foam surround resists heat or direct sunlight
• Large woofer magnet in a heavy-duty motor for ultra-clean bass
• PEI-tweeter construction provides superb clarity
• Neodymium tweeter magnets allow for increased volume in high frequencies

Specifications
Woofer Size [ in, mm ]: 6x8, 160x200
Tweeter Size [ in, mm ]: 1/2, 13
DC Resistance [ ohm ]: 3.5
Peak Power [ watts, per ANSI/CTA-2031-A ]: 225
Recommended Amplifier Power [ watts RMS ]: 75
Sensitivity - SPLo [ dB @ 1W, 1m ]: 90
Effective Frequency Range [ Hz ]: 45-20k
Mounting Hole Diameter [ in, mm ]: 5 x 7 3/16, 126x182
Top Mount Depth [ in, mm ]: 2 3/16, 56
Bottom Mount Depth [ in, mm ]: 2 9/16, 65
Tweeter Protrusion [ in, mm ]: 0
Grilles: No
Tweeter Magnet Material: Neodymium
Tweeter Dome Materia: PEI [polyether imide]
Tweeter Design: Balanced dome
Woofer Cone Material: Polypropylene
Woofer Surround Material: Polyester foam
