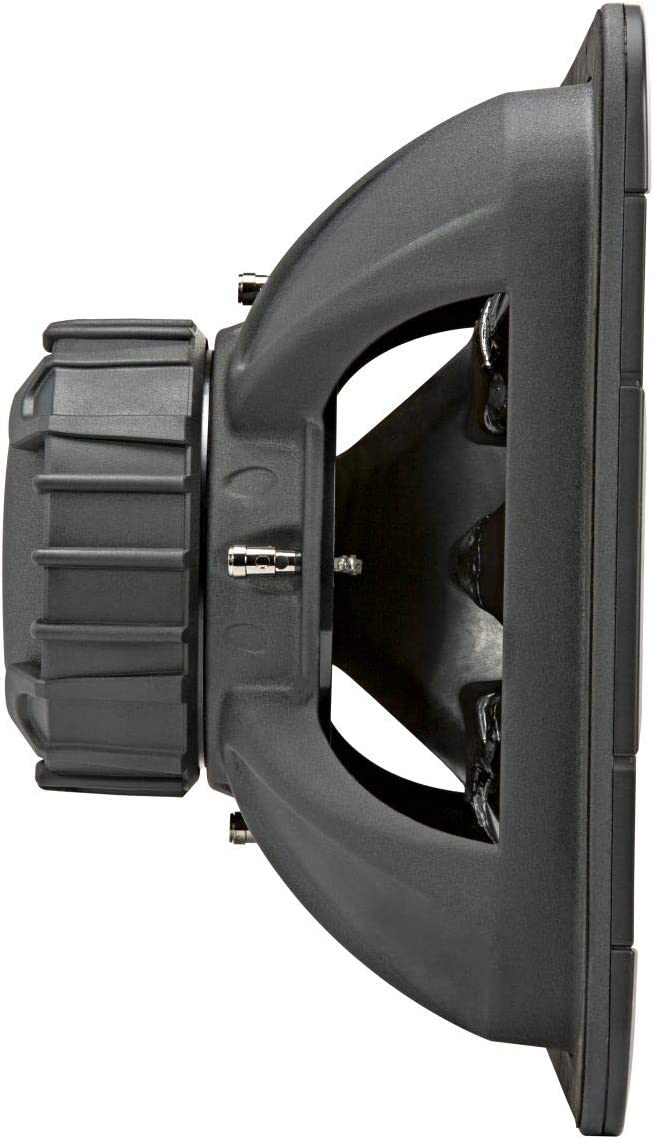

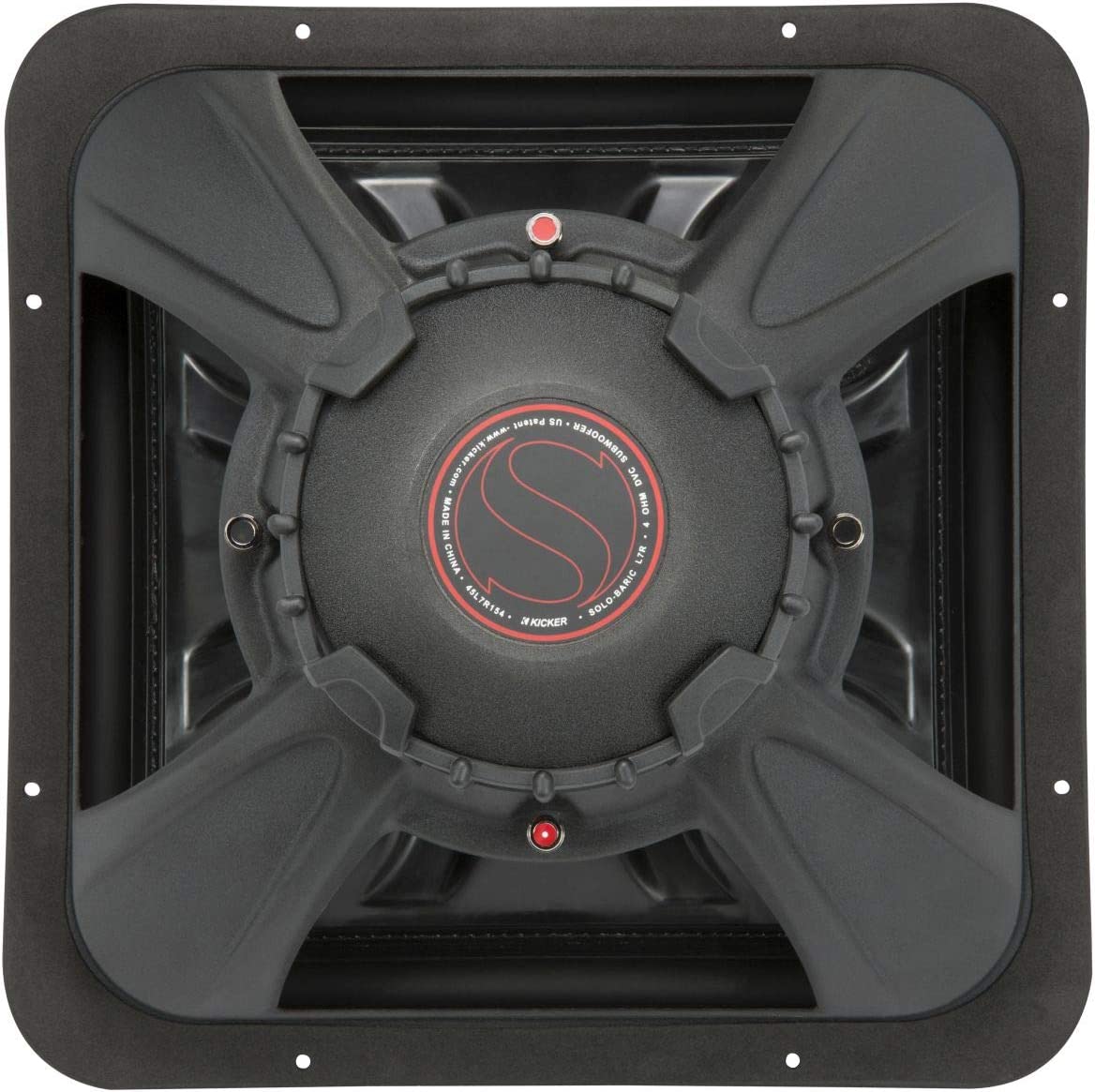

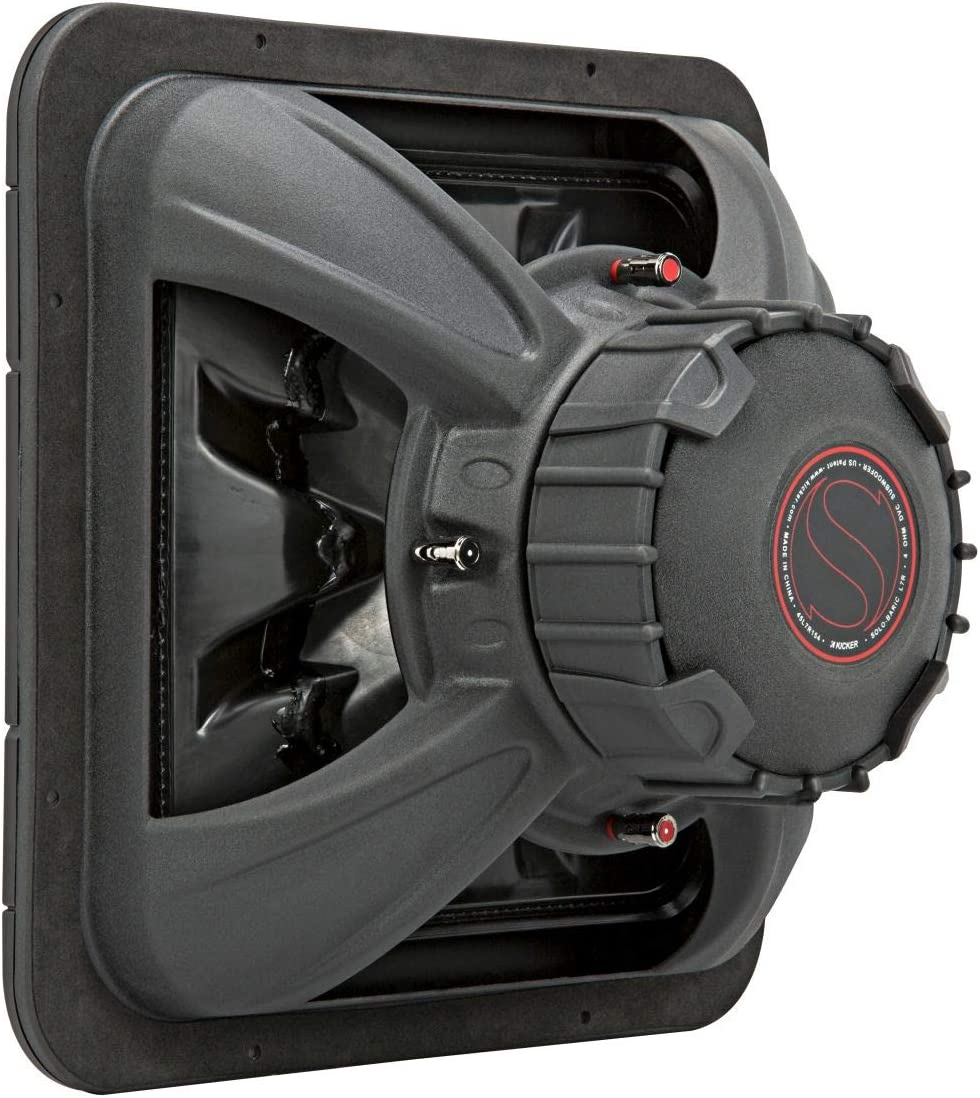

Kicker 45L7R154 L7R Series 15" Subwoofer

Kicker 45L7R154 L7R Series 15" Subwoofer

The L7R Square Sub moves more air, so you get more bass. The design was invented right here in Stillwater, Oklahoma – made to deliver unprecedented efficiency and huge volume!

Bigger Bump
The engineers at KICKER invented the original square sub to give you more bass - yet take up no more air space than a standard round sub. Welcome to the miraculous world of the L7R!

Features

• Dual Four-Ohm Voice Coil
• Wrap Around Gasketing
• Patented Ribbed Corners
• Injection-Molded SoloKon™ Woofer
• SoloKon™
• 360-Degree Back Bracing
• UniPlate™ Back Plate And Pole Piece
• Bumped Back Plate
• Thick Tinsel Leads
• Large Ceramic Magnet
• Steel Basket With Spoke Design
• Nickel Plated Speaker Terminals

Specifications

Thiele/Small Parameters: 45L7R154 T/S Parameters
Product Dimension Sheet: 45L7R15 Dimensions
SIZE [in, cm]: 15, 38
IMPEDANCE [Ohms]: 4 DVC
Recommended Amplifier Power (watts RMS): 900
Peak Power (watts, per ANSI/CTA-2031-A): 1800
SENSITIVITY [dB 1w/1m]: 88.05
MOUNTING DEPTH [in, cm]: 8 -3/8, 21.5
MOUNTING DIAMETER [in, cm]: 13-3/4, 34.9
MIN SEALED BOX VOL [cu. ft, L]: 1.5, 42.48
MAX SEALED BOX VOL [cu. ft, L]: 3, 85
MIN VENTED BOX VOL [cu. ft, L]: 3, 85
MAX VENTED BOX VOL [cu. ft, L]: 6, 170
What's in the Box: 1 - 15" Subwoofer, 1 - install manual, 2 - Kicker stickers
Warranty: When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. -
