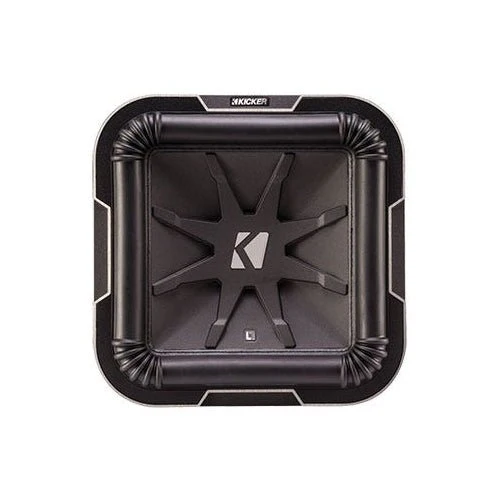

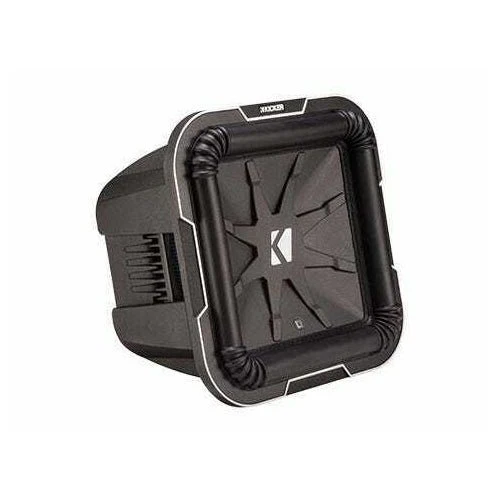

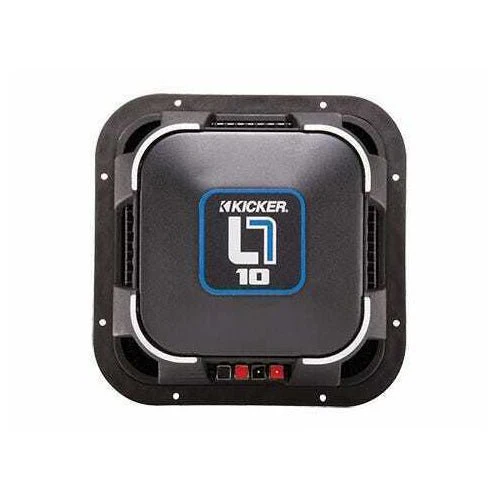

Kicker Q-Class 41L7102 L7 Series 10" Subwoofer Square Car Sub, 350-750 Watts RMS

Kicker 41L7102

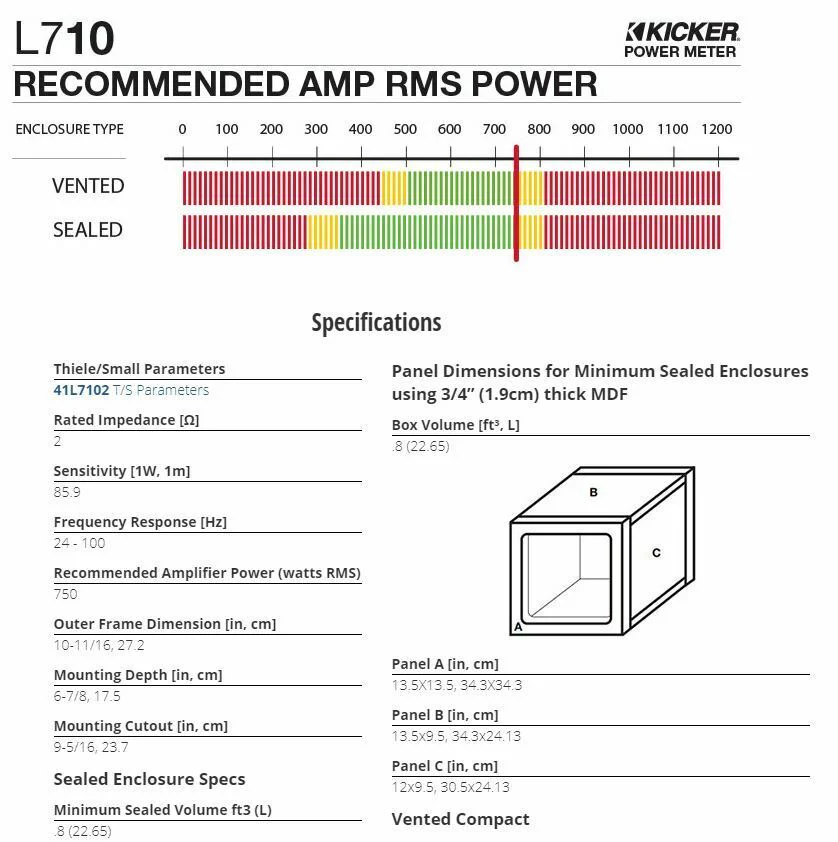

10 inch L7 Dual 2 ohm Subwoofer The L7 stands alone as the most unique subwoofer on the market, with a cone shape that is exclusively designed to produce more output. The KICKER L7 Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor. Specifications

• Rated Impedance [Ω] 2
• Fs [Hz] 37.5
• Sensitivity [1W, 1m] 85.9
• Qts 0.507
• Qms 9.791
• Qes 0.535
• Re [Ω] 7.9
• Vas [ft³, L] 1, 28.32
• Continuous Power Handling [Watts RMS] 750
• Outer Frame Dimension [in, cm] 10-11/16, 27.2
• Mounting Depth [in, cm] 6-7/8, 17.5
• Mounting Cutout [in, cm] 9-5/16, 23.7
• Frequency Response [Hz] 24 - 100

Sealed Enclosure Specifications

• Minimum Sealed Volume ft3 (L) .8 (22.65)
• Minimum Sealed Power Handling 750W RMS
• Maximum Sealed Volume ft3 (L) 1.25 (35.4)
• Maximum Sealed Power Handling 750W RMS

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF

• Box Volume [ft³, L] .8 (22.65)
• Panel A [in, cm] 13.5X13.5, 34.3X34.3
• Panel B [in, cm] 13.5x9.5, 34.3x24.13
• Panel C [in, cm] 12x9.5, 30.5x24.13

Vented Compact

• Box Volume, ft³ (L) + port displacement 1.25 (35.4)
• Port Opening Size, in x in (cm x cm) 2.5x11.25 (6.4x29)
• Port Length, in (cm) 19.75 (50)
• Power Handling, RMS 750

Vented SQ

• Box Volume, ft³ (L) + port displacement 2.25 (63.7)
• Port Opening Size, in x in (cm x cm) 3x11.25 (7.6x29)
• Port Length, in (cm) 18 (46)
• Power Handling, RMS 750

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded. Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
