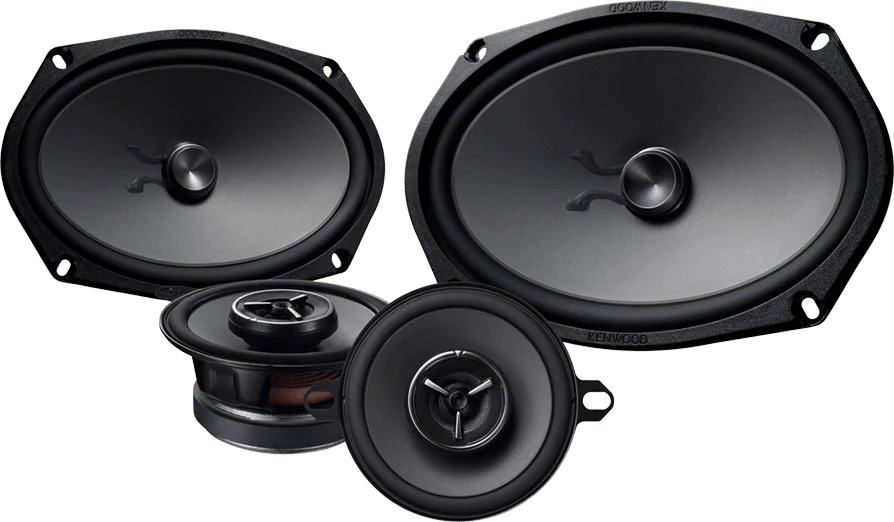

Kenwood KFC-XP6903C 6x9" + 3-1/2" Component Speakers
Kenwood KFC-XP6903C 6x9" + 3-1/2" Component Speakers
Features
- Shallow 6x9" PP Cone Woofer
- 3-1/2" 2way Mid-High Speaker
- Custom fit for select Chrysler, Dodge, & Toyota
- 6x9" Multi-Use Bracket Included
6x9" Vehicle Specific Component Speakers
Introducing the industry’s best solution for a 6x9” door speaker and vehicle specific sized dash speaker replacement – all in one package! By pairing a set of true mid-bass 6x9” drivers with 3-1/2” speakers, solid mid-bass response along with rich mid and high frequency reproduction is delivered. Multi-brackets are included, enabling easy OEM replacement in many Chrysler, Dodge, Toyota vehicles and more!
Sound Field Enhancer
This unique shape widens the sound field and controls interference, providing a rich, direct sound through the 3-1/2" speakers.
Silk Balanced-Dome Tweeter
Reproduces natural sounds, ensuring accurate and smooth high frequency response.
| Type 1 (Chevrolet) | Type 2 (Chevrolet) | Type 3 (Toyota) |
 |
 |
 |
| Type 4 (Toyota) | Type 5 (Toyota) | Type 6 (Toyota) |
 |
 |
 |
Supported Vehicles
CHRYSLER
200 ('15-'17)
300 ('11-present)
DODGE
Avenger ('08-'14)
RAM ('10-present)
Caravan ('08-present)
Challenger ('08-present)
Charger ('06-present)
Journey ('09-present)
TOYOTA
Camry ('11-'17) - Bracket: Type 5
Camry ('17-present) - Bracket: Type 6
Specifications
ELECTRICAL:
Impedance(Ω）: 4Ω
Peak Input Power（W): 300W
RMS Input Power（W)
CTA standards: 100W
Sensitivity (dB at 1m)
CTA standards: 84dB
Frequency Response(Hz)
CTA standards: 45-23,000Hz

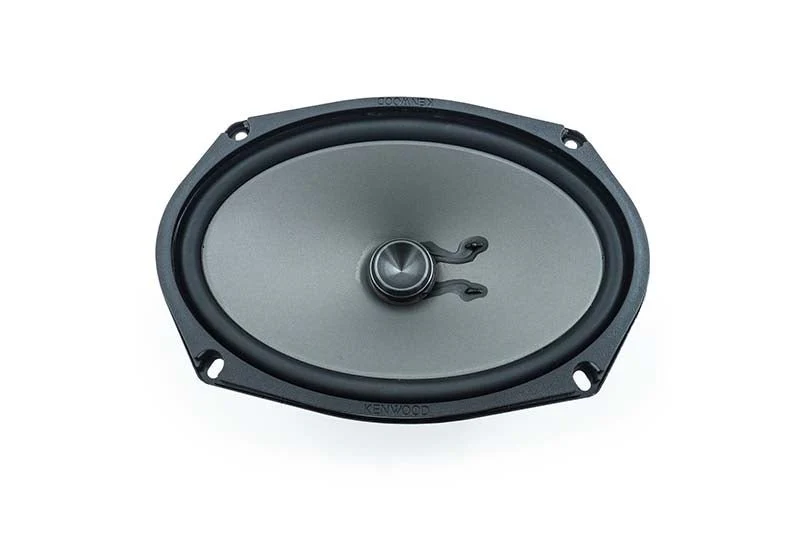

Woofer:
Diaphragm: PP Cone
Size: 153x229mm: 6x9 inch
Surround: Rubber
Basket: Steel
Magnet: Ferrite: φ90x15

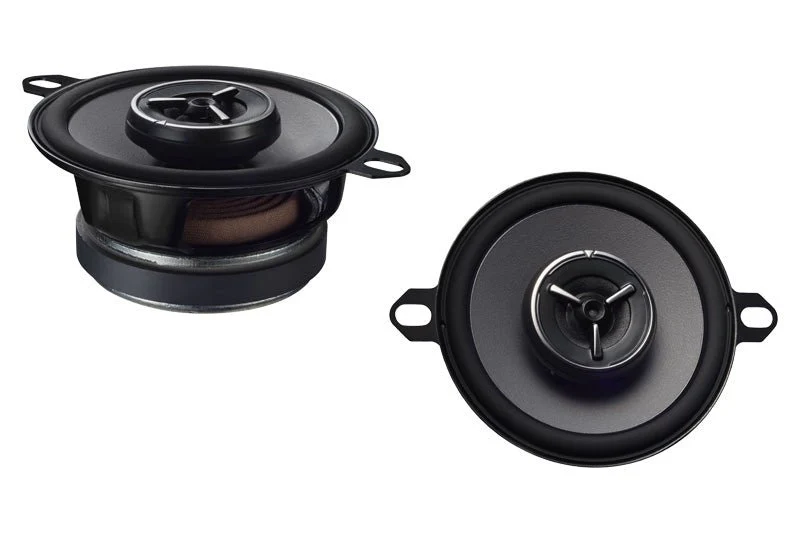

Midrange:
Diaphragm: PP Cone
Size: 44mm: 3-1/2 inch
Surround: Rubber
Basket: Steel
Magnet: Ferrite: φ65x18
Tweeter:
Diaphragm: Balanced Dome
Size: 25mm: 1 inch
Magnet: Neodynium

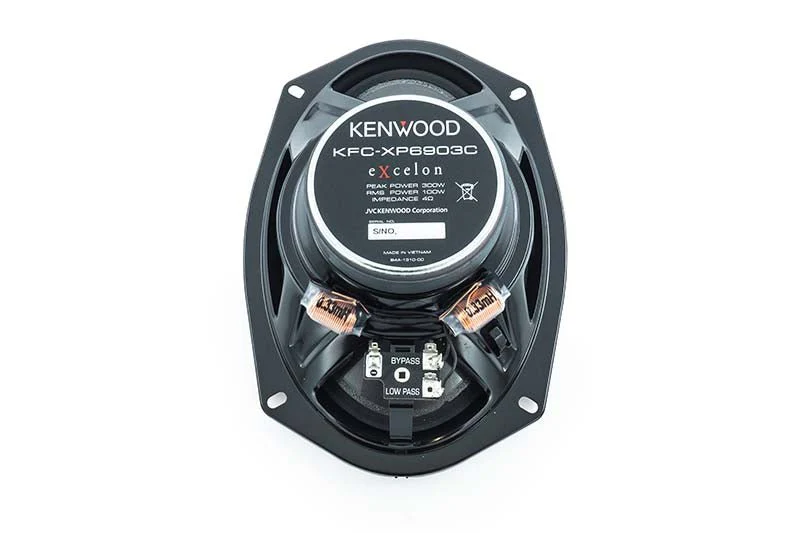

Newtwork:
Midrange: HPF: -6dB/oct, 850Hz
Woofer: LPF: -6dB/oct, 850Hz
Bypass Selectable inch
Weight:
Gross Weight: 4.7kg: 165.8 oz
Weight of Woofer Magnet: 410g: 14.5 oz

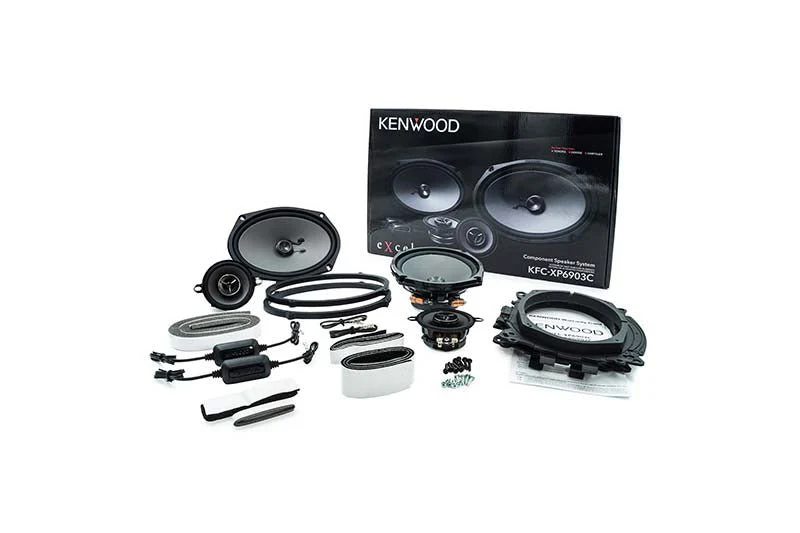

Accessory:
Accessory: Bracket for Woofer: 2pcs
Spacer for Woofer: 2pcs
In-Line Network: 2pcs
Speaker Cord for Woofer (0.3m): 2pcs
Tapping Screw(φ4x16mm) for Woofer: 8pcs
Cushion for Bracket/Woofer: 1set
Cushion for Bracket①: 1set
Cushion for Bracket②: 2pcs
Cushion(15mm) for Woofer: 1set
Cushion for 3.5inch Midrange: 1set
Tapping Screw(φ4xL25mm) for Woofer: 8pcs
Dimensions:
Woofer
Width: 236.4 mm: 9-5/16 in.
Height: 164 mm: 6-7/16 in.
Top Height: 82.3 mm: 3-1/4 in.
Cutout Diameter: 217 x 145 mm: 8-9/16 x 5-11/16 in.
Height from the mouning surface: 12.3 mm: 1/2 in.
Mounting Depth: 70 mm: 2-3/4 in.
Midrange
Width: 113mm: 4-7/16 in.
Height: 87 mm: 3-7/16 in.
Top Height: 44 mm: 1-3/4 in.
Cutout Diameter: φ75.5 mm: φ3 in.
Height from the mouning surface: 8 mm: 5/16 in.
Mounting Depth: 36 mm: 1-7/16 in.
Original: $280.00
-65%$280.00
$98.00Product Information
