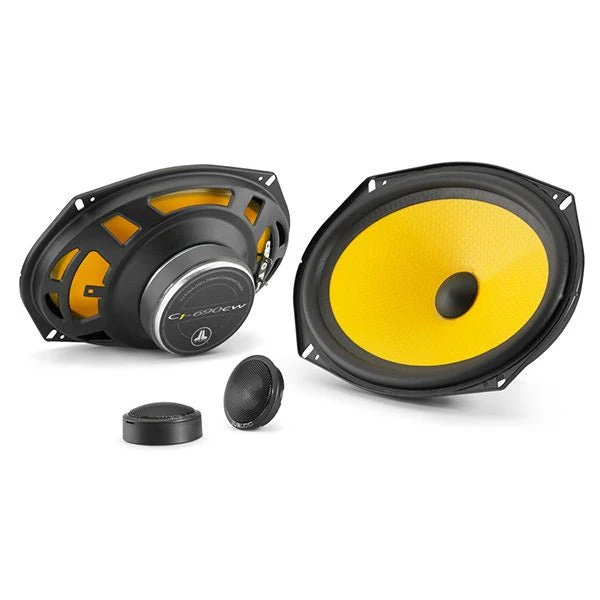

JL Audio C1-690 6x9 2-Way Component Speaker System
JL Audio C1-690 6x9 2-Way Component Speaker System

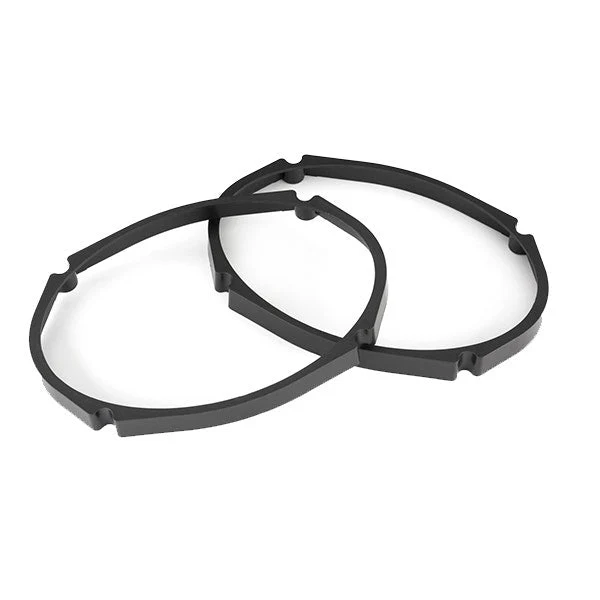

The C1-690 speakers deliver outstanding audio performance in a design optimized for seamless factory integration. Built for convenience and versatility, they include spacer/adaptor rings for bottom-mount applications, while surface and flush mounts allow flexible tweeter placement.
Precision Engineering for Powerful Sound
Developed using proprietary FEA modeling and JL Audio’s expertise in low-frequency driver design, the C1-690 ensures high output with smooth, dynamic, and low-distortion sound.
At its core, this system features:
Sturdy Construction – A stamped steel 6 x 9-inch (150 x 230 mm) frame with a DMA-optimized motor system
Durable Cone Design – A mineral-filled, injection-molded polypropylene cone with a rubber surround for enhanced longevity and performance
Precision Control – A flat Conex® spider at the top of the voice coil to maintain stability and prevent impact with the back plate
Secure Tinsel Leads – Carefully routed and attached to the spider to eliminate fatigue and buzzing
These high-quality materials and design elements are typically found in far more expensive loudspeakers, making the C1-690 an exceptional value.
Superior High-Frequency Clarity
Equipped with a true edge-driven 1-inch aluminum dome tweeter, the C1-690 offers exceptional high-frequency definition with smooth off-axis response. Additional enhancements include:
Silk Surround Suspension – For superior damping and clarity
Ferrofluid in the Voice Coil Gap – Enhancing efficiency and longevity
Neodymium Magnet Circuit – Delivering powerful performance in a compact design
Advanced Tweeter Protection Circuitry – A 2nd order high-pass filter ensures smooth operation and improved power handling
Unmatched Value in Its Class
The C1-690 delivers premium sound, smart engineering, and solid durability—all at an incredible value.
Sold as a pair. Grilles not included.
General Specifications
Continuous Power Handling (RMS) 60 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 10 - 100 W / Ch.
System Efficiency 89.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 39 Hz - 22 KHz ± 3 dB
Woofer Physical Specifications
Frame Outer Diameter* (A) 6.38 x 9.33 in / 162 x 237 mm
Grille Tray Outer Diameter (B) N/A
Motor Outer Diameter (C) 3.54 in / 90 mm
Frontal Coaxial Tweeter Protrusion (D) N/A
Frontal Grille Protrusion (E) N/A
Mounting Hole Diameter (F) N/A
Mounting Depth (G) 2.75 in / 70 mm
*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface
Tweeter Physical Specifications
Flush Mount Fixture Diameter (A1) 1.97 in / 50 mm
Surface Mount Fixture Diameter (A2) 2.01 in / 51 mm
Flush Mount Mounting Hole Diameter (B) 1.75 in / 54 mm
Flush Mount Mounting Depth (C) 0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
Surface Mount Tweeter Frontal Protrusion (D2) 0.87 in / 22 mm

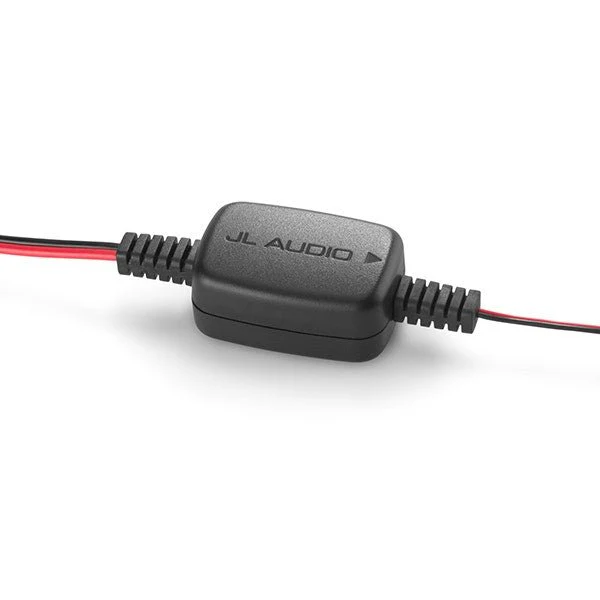

Crossover Physical Specifications
Depth (D) 1.34 in / 34 mm
Height (H) 0.90 in / 23 mm
Width (W) 1.96 in / 50 mm
