JL Audio VX1000/5i 5-Channel Class D Amplifier with DSP

JL Audio VX1000/5i 5-Channel Class D Amplifier with DSP

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

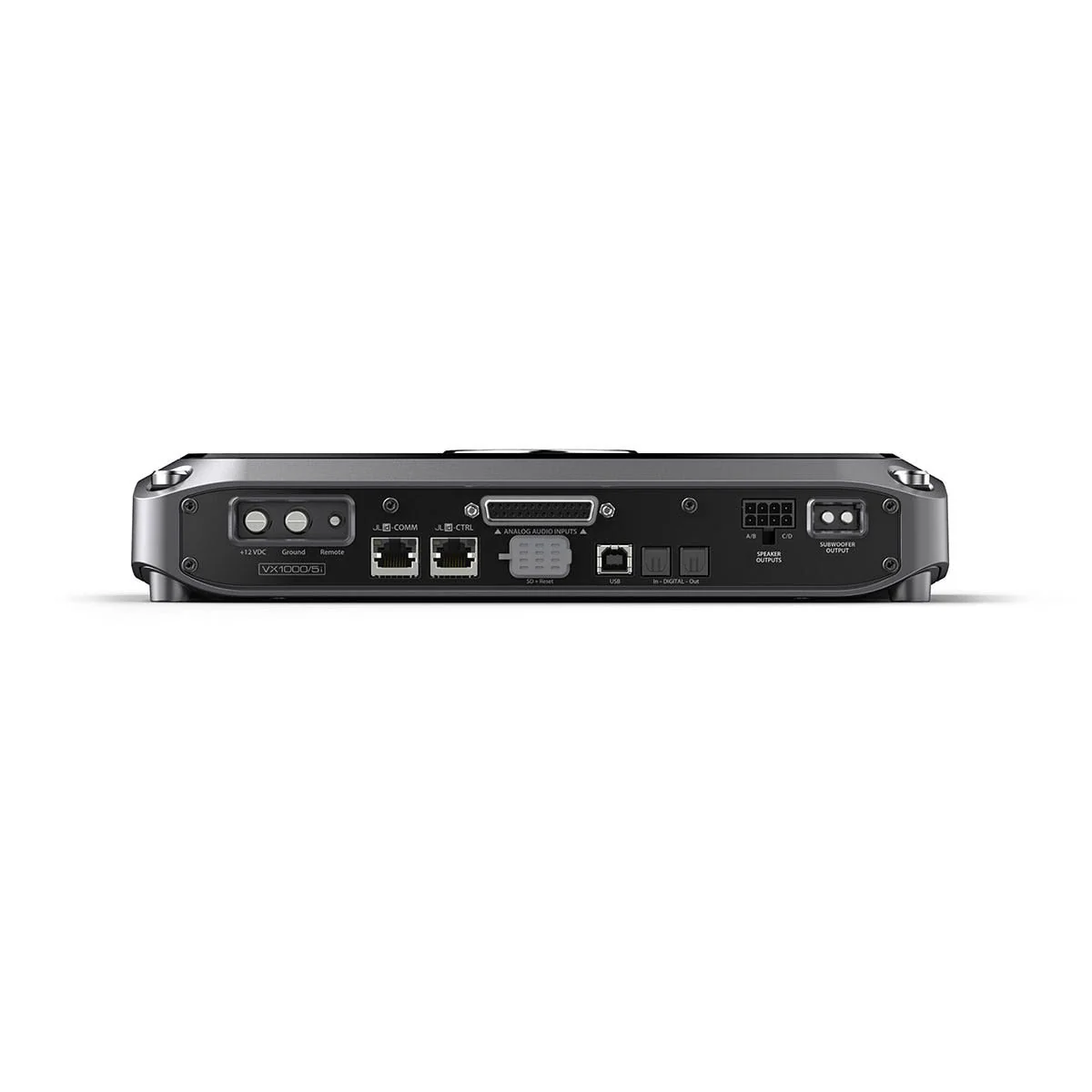

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Specifications

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω: 75 W RMS x 4
Main Channels @ 2 Ω: 100 W RMS x 4
Main Channels - Bridged @ 4Ω: 200 W RMS x 2
Subwoofer Channel @ 4 Ω: 400 W RMS x 1
Subwoofer Channel @ 3 Ω: 500 W RMS x 1
Subwoofer Channel @ 2 Ω: 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω: N/A

Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω: 60 W RMS x 4
Main Channels @ 2 Ω: 90 W RMS x 4
Main Channels - Bridged @ 4Ω: 180 W RMS x 2
Subwoofer Channel @ 4 Ω: 360 W RMS x 1
Subwoofer Channel @ 3 Ω: 480 W RMS x 1
Subwoofer Channel @ 2 Ω: 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω: N/A

General Specifications
Frequency Response (Main Channels): 12 Hz - 24 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel): 12 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Main Channels): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel): 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels): 100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Main Channels): 81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel): 73 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 2 Ω: >50 / 50 Hz
Damping Factor @ 4 Ω: >150 / 50 Hz
THD+N @ Rated Power (Main Channels): <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)

Physical Specifications
Height (H): 2.12 in / 54 mm
Width (W): 11.32 in / 287 mm
Depth (D): 6.62 in / 168 mm
Net Weight: 6.45 lb / 2.93 kg
