JL Audio HD600/4 4-Channel Full-Range Class D Amplifier

JL Audio HD600/4 4-Channel Full-Range Class D Amplifier

Overview

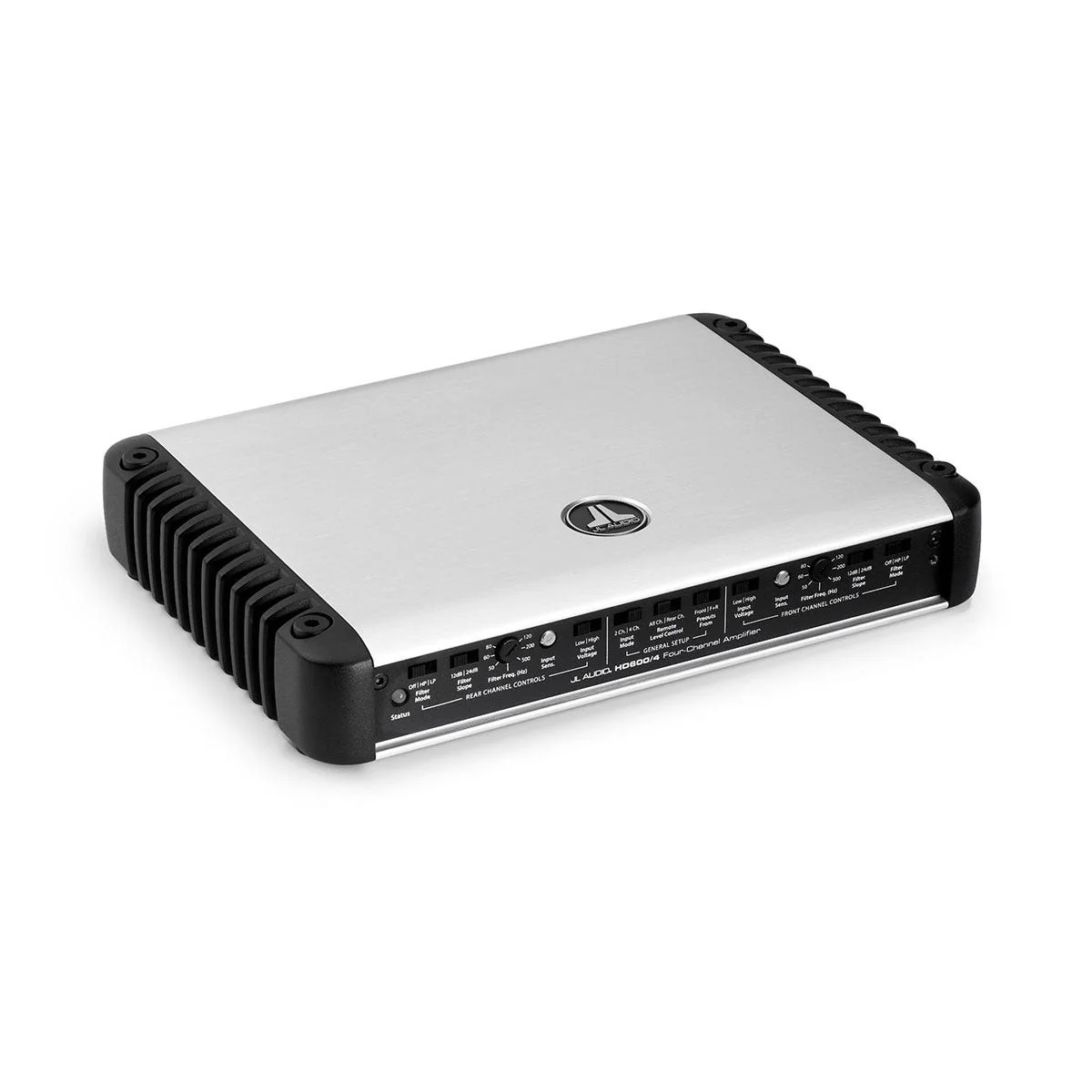

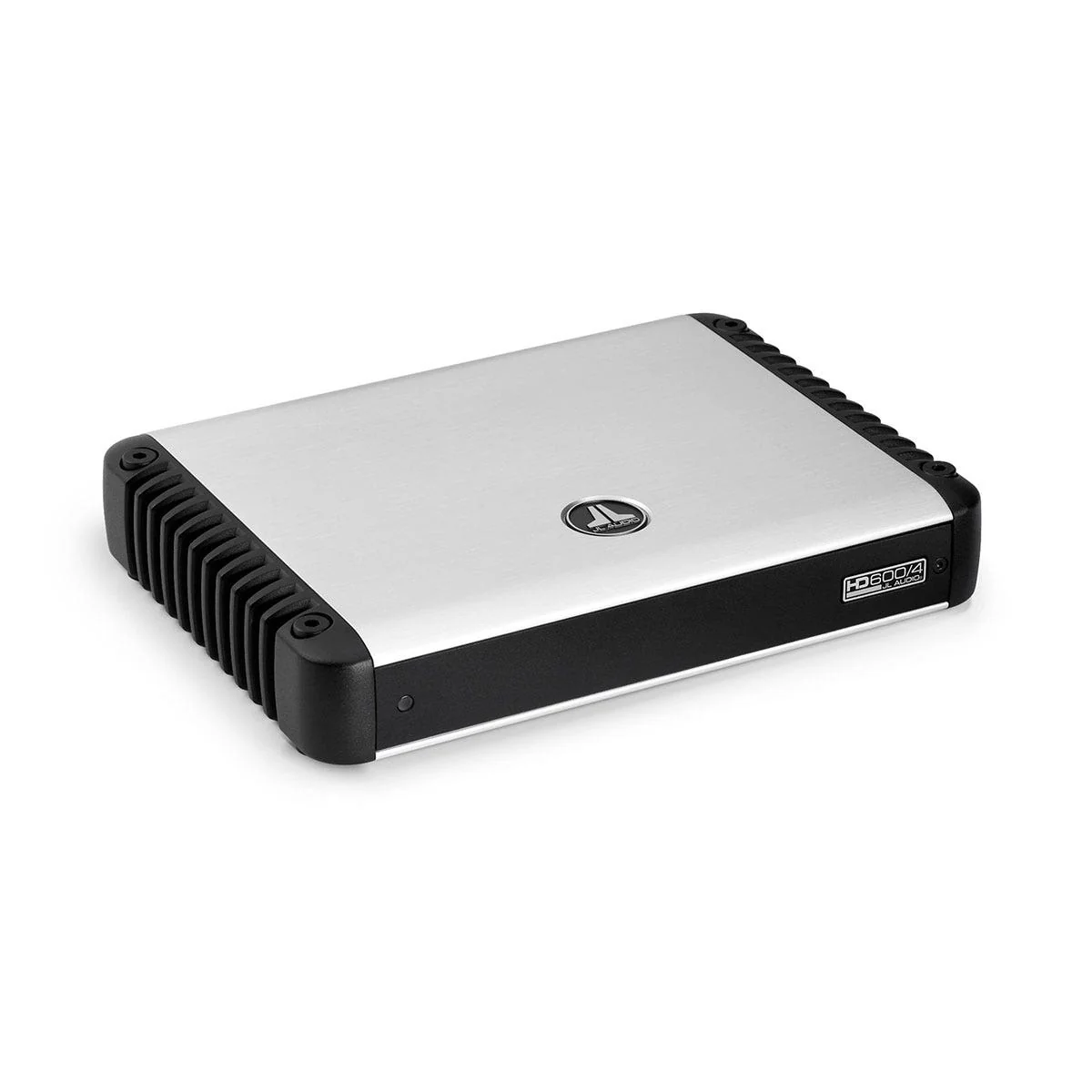

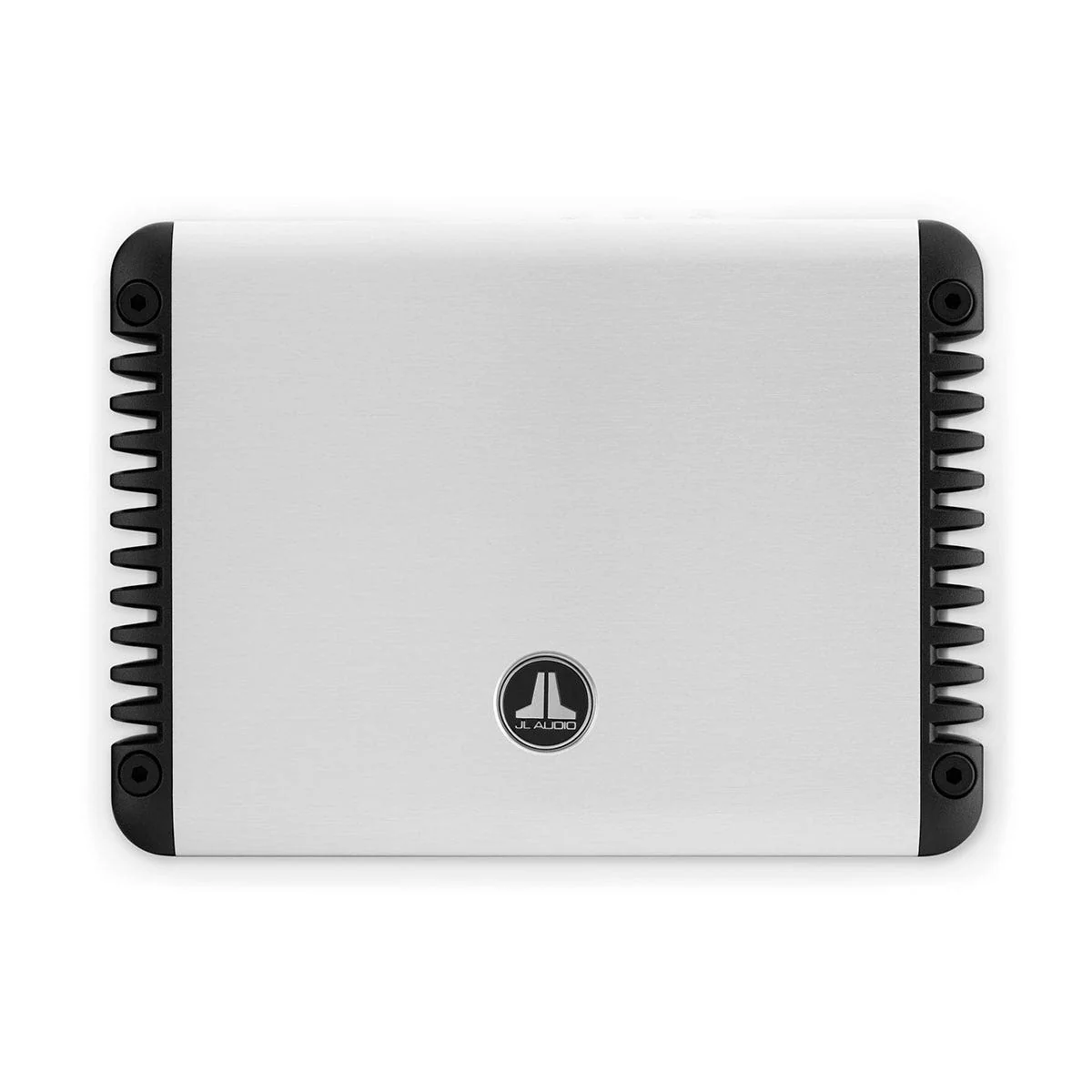

4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality. When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

Specifications

Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω: 150 W RMS x 4
@ 3 Ω: 150 W RMS x 4
@ 2 Ω: 150 W RMS x 4
@ 1.5 Ω: 150 W RMS x 4
Bridged @ 8 Ω: 300 W RMS x 2
Bridged @ 4 Ω: 300 W RMS x 2 Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω: 150 W RMS x 4
@ 3 Ω: 150 W RMS x 4
@ 2 Ω: 150 W RMS x 4
@ 1.5 Ω: 150 W RMS x 4
Bridged @ 8 Ω: 300 W RMS x 2
Bridged @ 4 Ω: 300 W RMS x 2 General Specifications
Frequency Response: 6 Hz - 30 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power: >110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W: >88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >300 / 50 Hz
Damping Factor @ 2 Ω: >150 / 50 Hz
THD+N @ Rated Power: <0.03% @ 4 Ω per Channel.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU or MaxiFuse™) Signal Processing
Filter Mode(s): Low-Pass or High-Pass
Filter Slope(s): 12/24 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers: Yes
Filter Defeat Function: Yes
Remote Level Control: Optional (HD-RLC)
Remote Level Modes: 2 or All Channels
Channel Input Mode Switch: Yes (2/4 ch.)
Pass-Through Preamp Output: Buffered
Source Channel Selection for PreOuts: Yes

Physical Specifications
Height (H): 1.93 in / 49 mm
Width (W): 10.74 in / 273 mm
Depth (D): 8.29 in / 211 mm
