JL Audio FiX-86 OEM Integration DSP with Automatic Time Correction and Digital EQ

JL Audio 98103

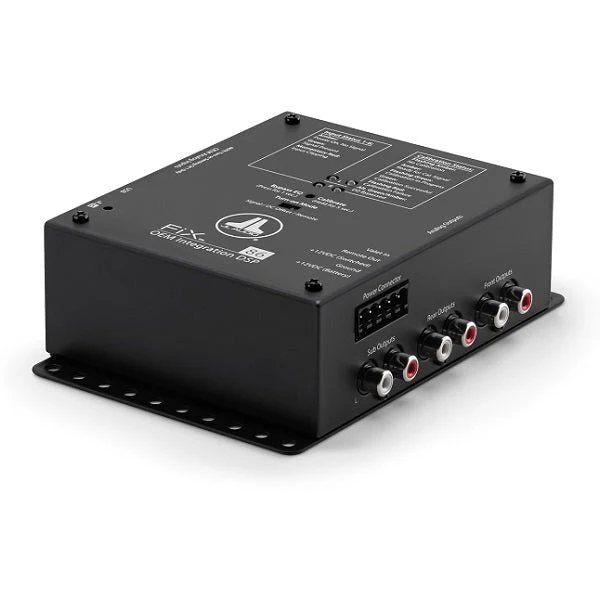

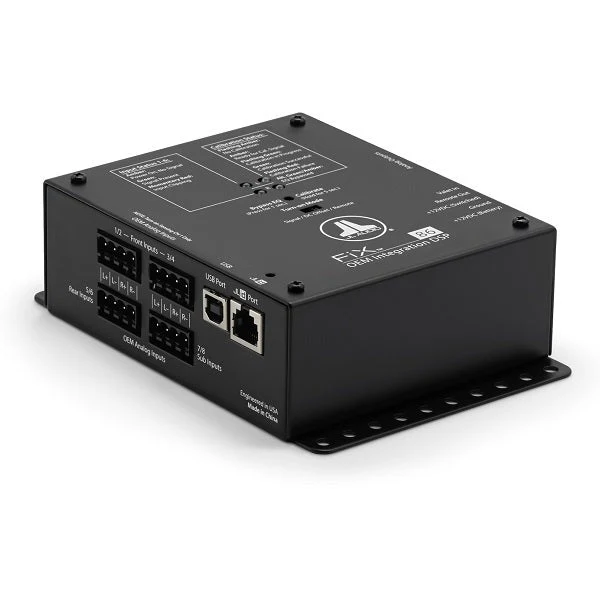

OEM Integration DSP with Automatic Time Correction and Digital EQ 8-ch. Inputs / 4-ch. Stereo + 2 Subwoofer RCA Outputs The FiX™ 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control. Unlike typical OEM interface products, the FiX™ 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed. With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to highpower, amplified speaker-level outputs (up to 30V RMS). Activation methods include 12-volt or Auto Turn-On (Signal/DC-Offset Sensing) to trigger a dedicated remote turn-on output for aftermarket equipment. An optional DRC-100 or DRC-200 Digital Remote Controller (sold separately) adds Master Volume Control, Subwoofer Level Control and preserves hands-free calling features, all from the driver’s seat. Achieving great sound from your factory stereo has never been easier, or sounded better... Now with fader retention and subwoofer output!

General Specifications

• Power Supply Type: Regulated DC-DC SMPS
• Input Operating Voltage: 10 - 16 VDC
• Standby Current Draw: <1.5 mA
• Operating Current Draw: 0.7 A
• Recommended Fuse Value: 1 A
• Input Channels: Eight
• Input Type: Differential-Balanced
• Input Voltage Range: 250 mV - 30 V RMS
• Minimum Input Voltage: 10 mV RMS
• Input Level Setting: Fully automatic
• Output Channels: Six (Front/Rear/Sub Output Pairs)
• Analog Output: Unbalanced, stereo RCA jacks
• Digital Output: N/A
• Output Impedance: 450 Ω
• S/N Ratio: 96 dB (A-Weighted, referred to 4V RMS Output)
• THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz

Signal Processing

• Audio Resolution: 24 bit / 48 kHz
• Number of EQ Bands: 30 x 2 channels
• EQ Resolution: 1/3 octave (25 Hz - 20 kHz)
• Remote Level Control: Optional (DRC-100 or DRC-200)
• Remote Level Functions: Master Volume Control, Handsfree Optimization, LED Status Reporting (DRC-200 adds Subwoofer Level Control)

Physical Specifications

• Height (H): 1.85 in / 47 mm
• Width (W): 4.29 in / 109 mm
• Depth (D): 6.14 in / 156 mm
• Net Weight: 2.58 lb / 1.17 kg
