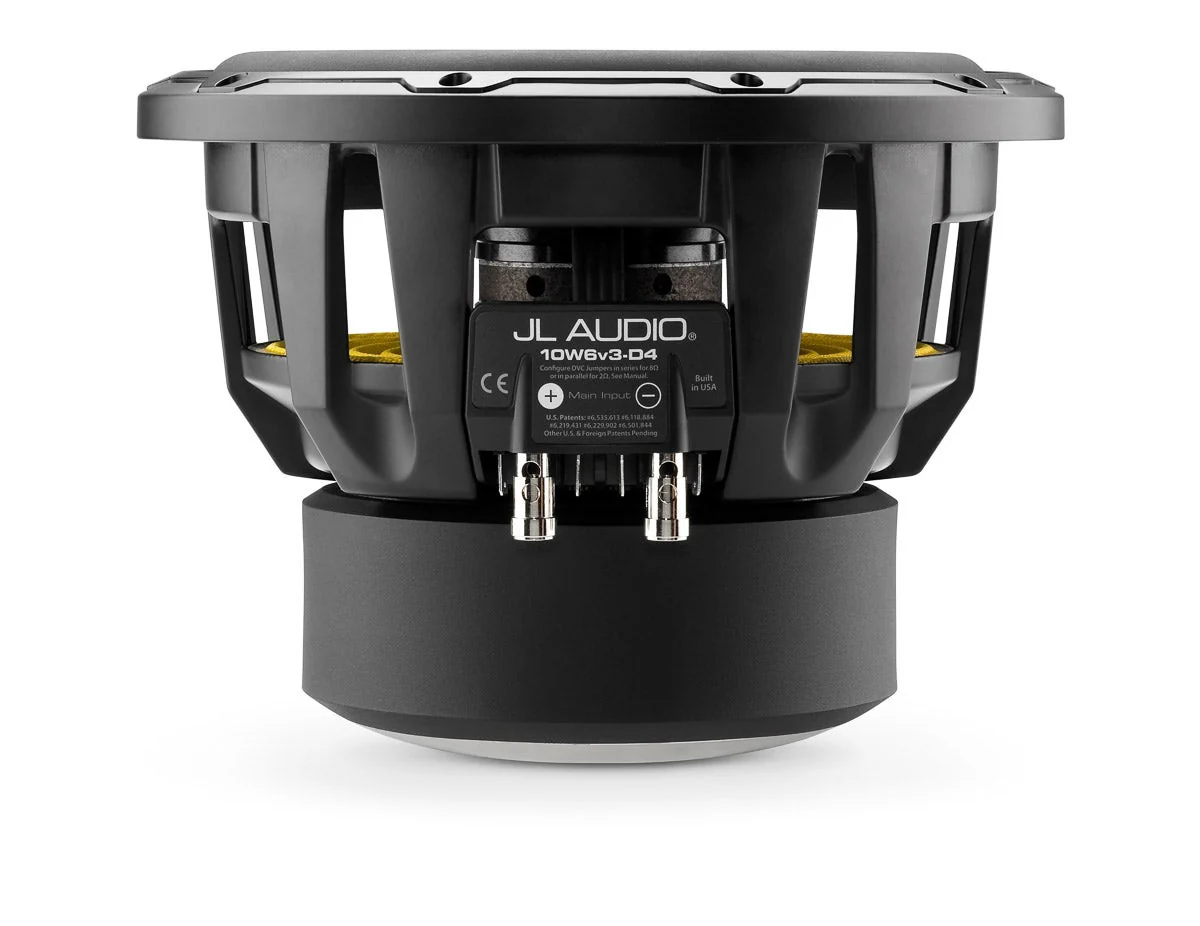

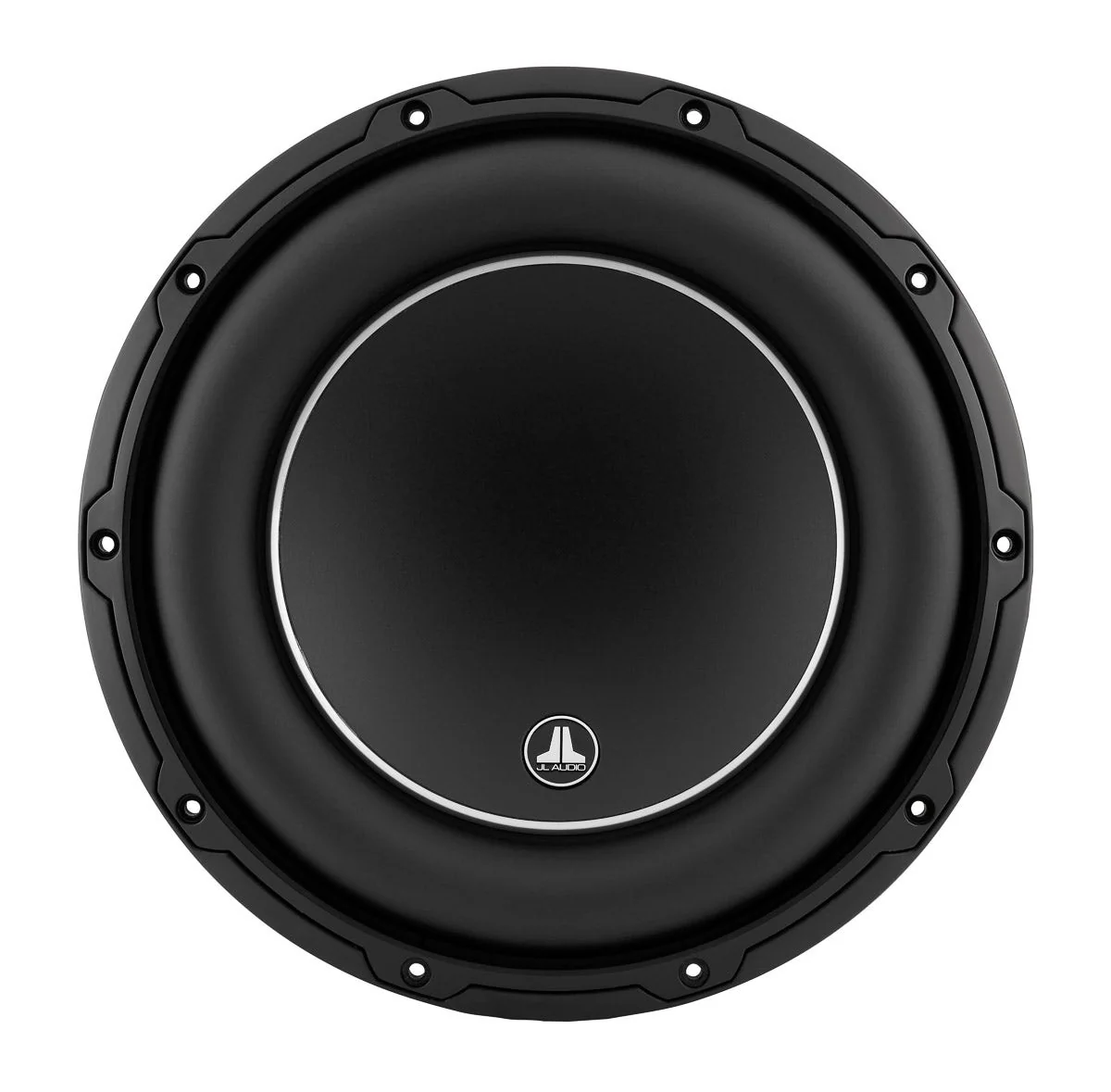

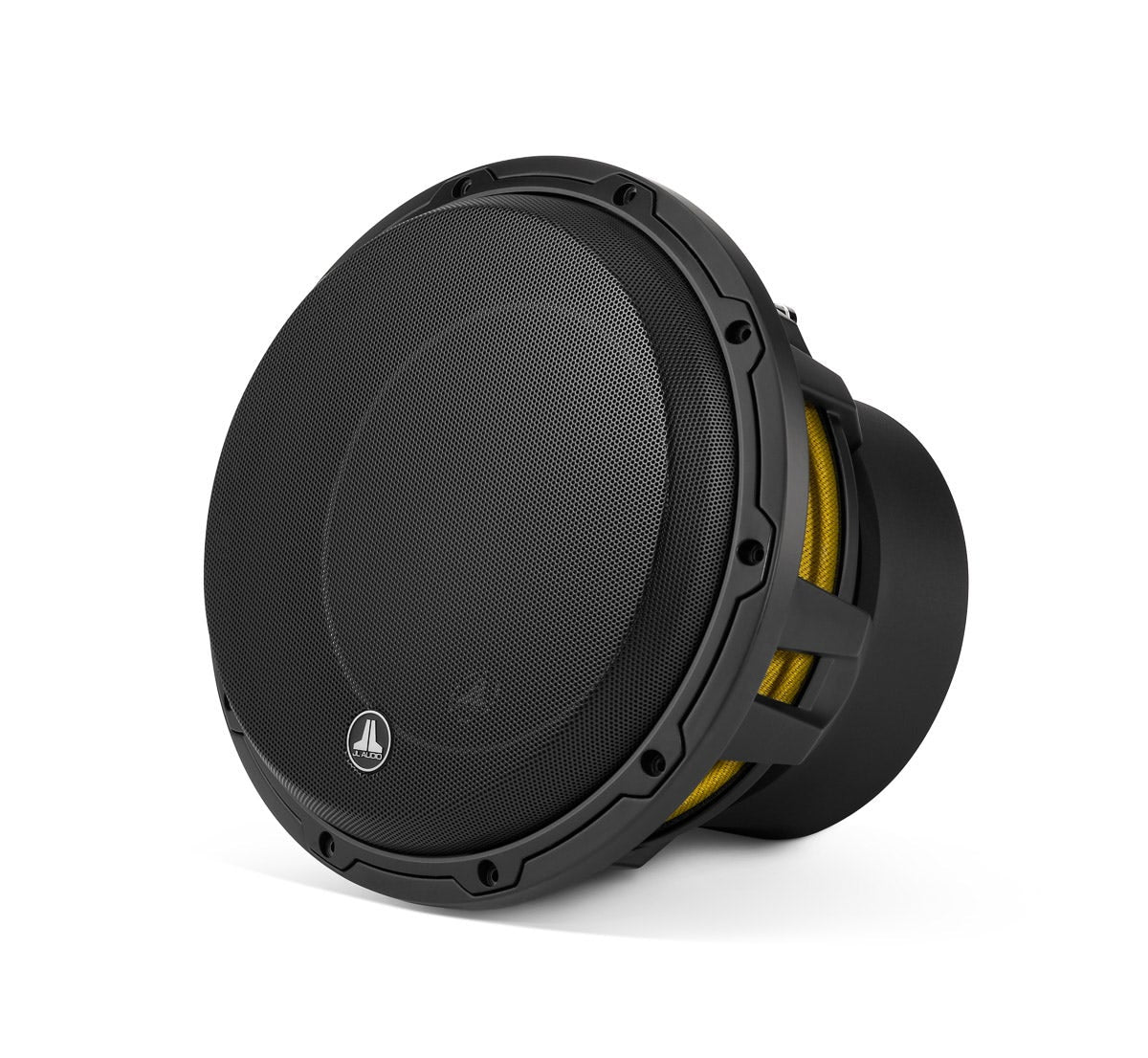

JL Audio 10W6v3-D4 W6v3 10" Subwoofer

JL Audio 10W6v3-D4 W6v3 10" Subwoofer

If you are seeking to reproduce the highest quality sub-bass in a very compact enclosure application, the 10W6v3 is the ultimate choice. This advanced subwoofer driver offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behavior. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance. The 10W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 0.55 cu. ft. (15.6 l) of air space. Detailed enclosure recommendations can be found in the "Specifications" tab.

Greater excursion capability and higher power handling distinguish it from our 10W3v3 10-inch subwoofer driver, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.

General Specifications
Continuous Power Handling (RMS): 600 Watts
Recommended RMS Amplifier Power: 200 - 600 Watts
Nominal Impedance (Znom): Dual 4 Ohm

Physical Specifications
Nominal Diameter 10.0 in / 250 mm
Overall Diameter (A) 10.5 in / 267 mm
Mounting Hole Diameter (B) 9.02 in / 229 mm
Bolt Hole Circle (C) 9.86 in / 250 mm
Magnet Diameter (D) 6.3 in / 160 mm
Required Pole Vent Clearance 0.50 in / 13 mm
Mounting Depth (E) 6.89 in / 175 mm
Driver Displacement 0.078 cu ft / 2.1 L
Net Weight 20 lb / 9.1 kg

Parameters
Free Air Resonance (Fs) 30.12 Hz
Electrical “Q” (Qes) 0.543
Mechanical “Q” (Qms) 9.228
Total Speaker “Q” (Qts) 0.513
Equivalent Compliance (Vas) 0.821 cu ft / 23.25 L
One-Way Linear Excursion (Xmax)* 0.75 in / 19 mm
Reference Efficiency (no) 0.1100%
Efficiency (1 W / 1 m)** 82.7 dB SPL
Effective Piston Area (Sd) 49.303 sq in / 0.0318 sq m
DC Resistance (Re)*** 6.452 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.
