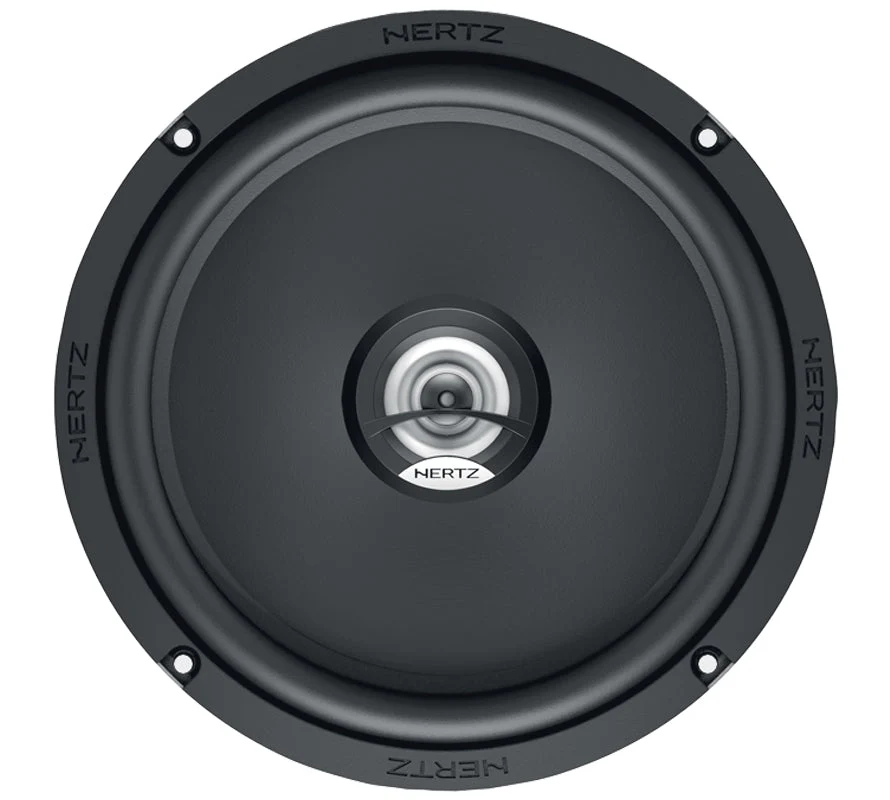

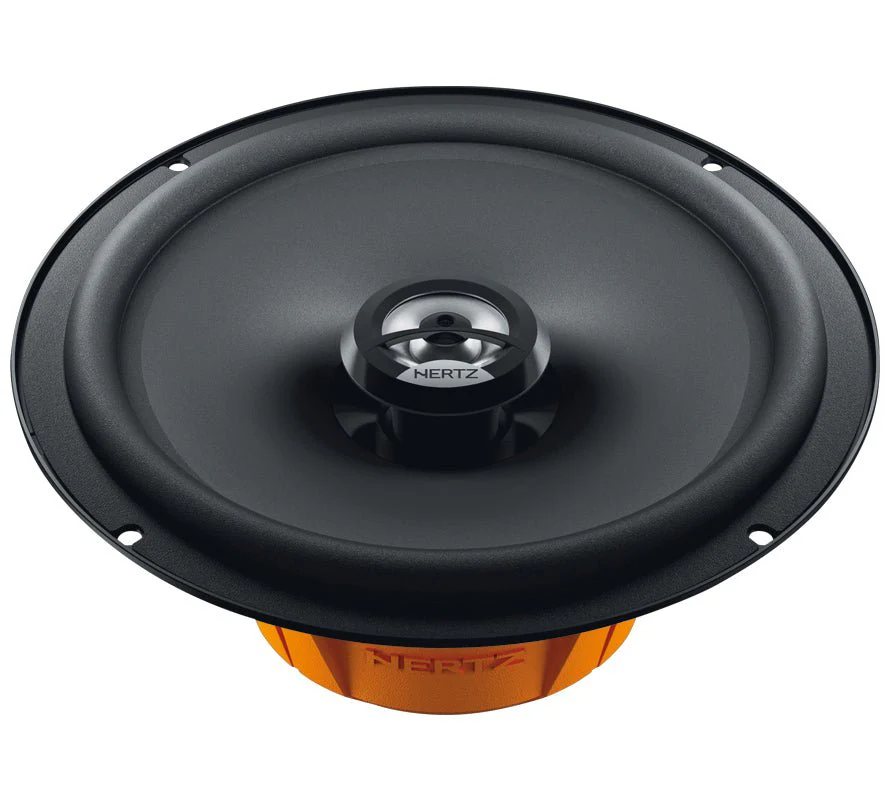

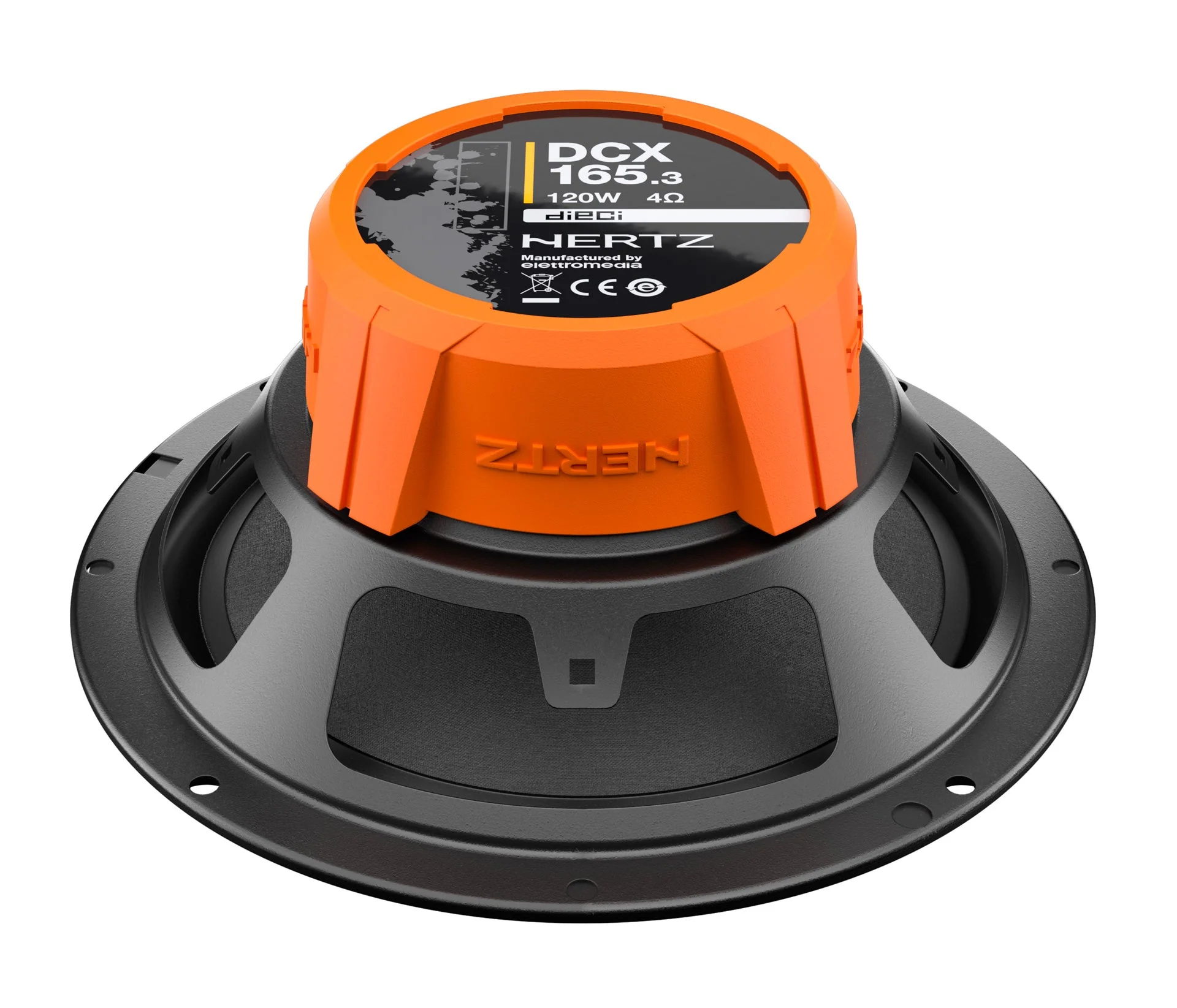

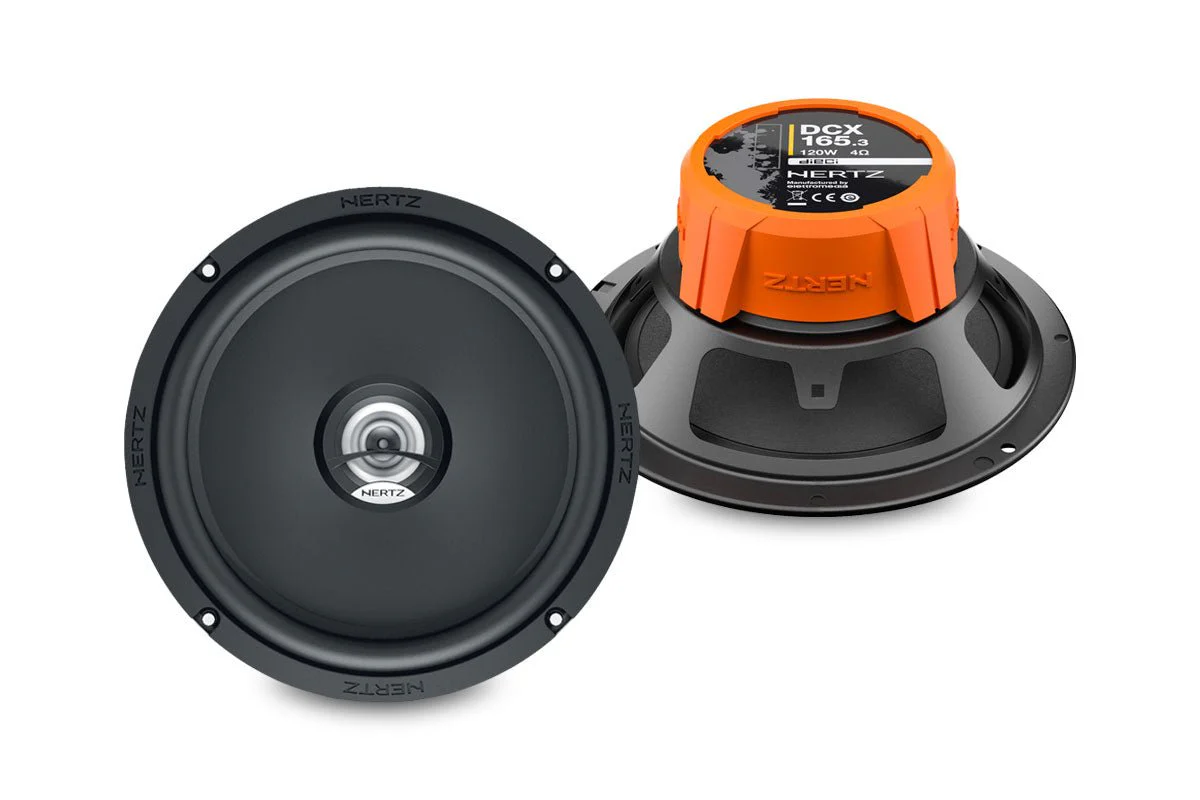

Hertz DCX 165.3 Dieci Series 6.5" Coaxial Speakers

Hertz DCX 165.3 Dieci Series 6.5" Coaxial Speakers

To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 165.3 car audio coaxial speaker is designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact.

Technical Specifications
Component: Two way coaxial
Size mm (in.): 165 (6.5)
Power Handling - Continuous W: 60
Power Handling - Peak W: 120
Impedance Ohm: 4
Depth mm (in.): 72 (2.8)
Woofer Voice Coil Ø mm (in.): 25 (1.0)
Frequency Response Hz: 60 ÷ 21k
Woofer Magnet size D x d x h mm (in.): 80 x 40 x 15 (3.1 x 1.6 x 0.6)
Weight of one speaker kg (lb.): 0,77 (1.69)
Woofer Magnet: High density flux ferri
Tweeter Magnet: Neodymium
Cone: Water-repellent pressed paper
Dome: PEI

Electro-acoustic Specifications
D mm: 135
Re Ohm: 3,3
Fs Hz: 68
Vas I: 14,3
Mms g: 11,0
Cms mm/N: 0,49
BL T*m: 4,0
Qts: 0,85
Qes: 0,96
Qms: 7,54
Spl dB: 93

Physical Specifications

A: 165 mm (6.5 in.)
B: 144 mm (5.7 in.)
C: 72 mm (2.8 in.)
D: 64 mm (2.5 in.)
