AudioControl TXJWB12 12" Loaded Subwoofer Enclosure - Jeep Wrangler JK/JL (2007-23)
AudioControl TXJWB12 12" Loaded Subwoofer Enclosure - Jeep Wrangler JK/JL (2007-23)

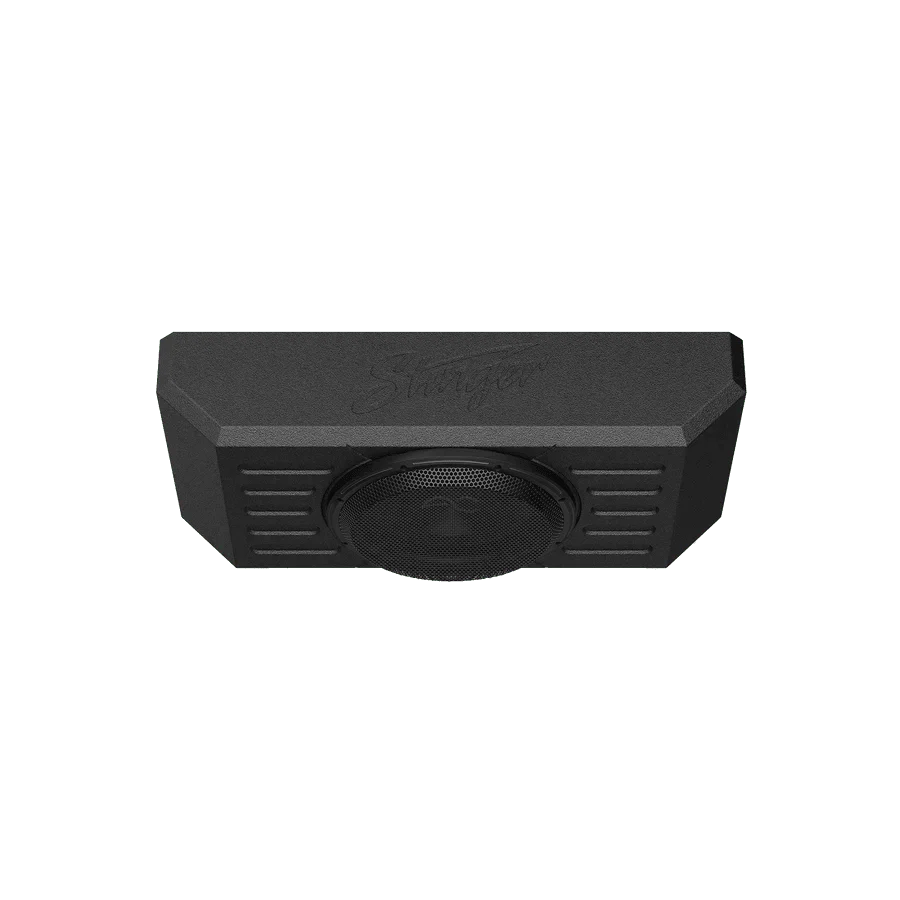

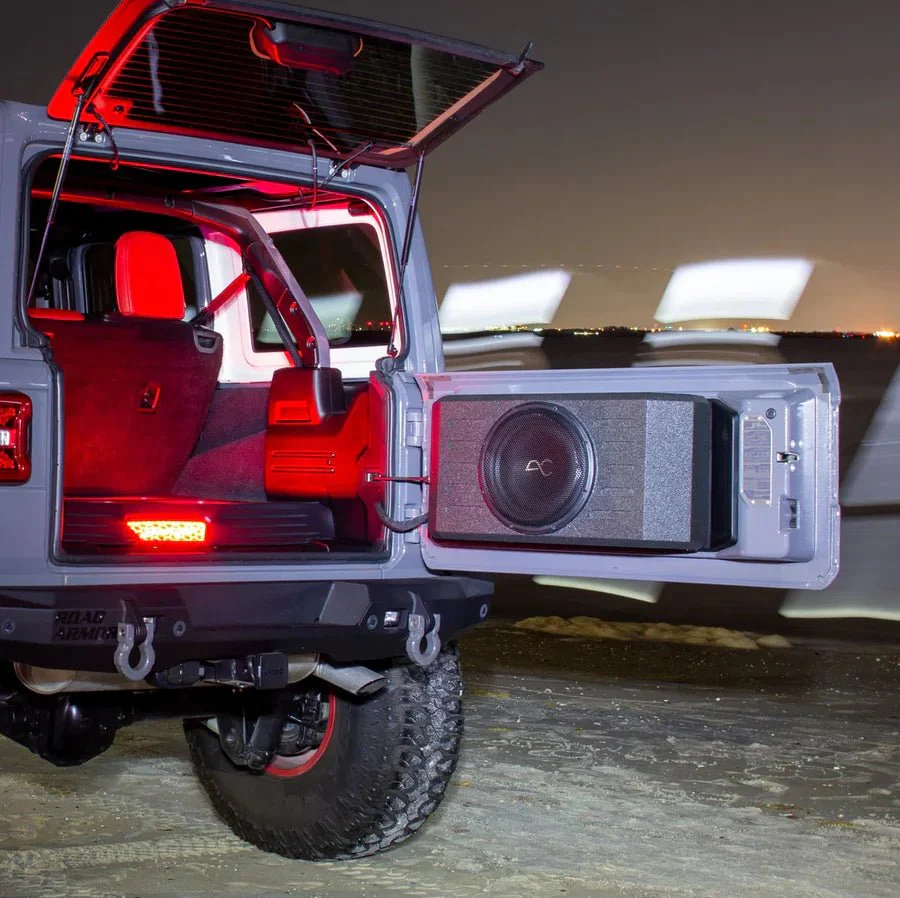

For Jeep Wrangler 2-Door and 4-Door JK/JL Models 2007-2023. Built tough and made to fit your Jeep Wrangler’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.
*For JK/JKU vehicles with factory subwoofer, remove the factory subwoofer for clearance. Once removed, two OEM replacement subwoofer delete panels can be ordered online or acquired from a local Jeep dealer to retain the OEM look.
400 Watt RMS / 800 Watt Max. User Manual.Compatibility
Jeep Wrangler JK/JL (2007-23)
Enclosure Features
- Roadkill-Armor Coat
- Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
- Weather-Resistant Enclosure for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Impact Absorption
- UV Protection
- Provides Leak and Corrosion Prevention
- Heavy-Duty 11-Layer High-Density Plywood Construction
- Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
- Durable, Coated Steel Subwoofer Grille for Extra Protection
Subwoofer Features
- 12” 2Ω Space Series Subwoofer
- 200W-600W Power Range (400W Ideal)
- Weather-Resistant Design
- Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
- Durable Isoprene Polymer Surround
- Powder-Coated Frame
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
Thermal & Mechanical Elements
- 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
- Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
- High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
- Shallow Cone Design
- Efficient Motor Design via Magentic FEA Technology
- Micro Level Bonding Adhesive for Increased Strength
- High-Density Ferrite Magnet
- Push Type Terminals Provide Consistent Tension For a Reliable Connection
- Grille Included
- High-Quality Mounting Hardware
Specifications
Speaker Model: SPC-12S2
Subwoofer Size: 12”
Voice Coil: Single 2 ohm
DC Resistance (Re): 2 ohm
Sensitivity 1W/M (SPL): 87 dB
Frequency Response: 20Hz – 250Hz
RMS Power: 400 watts
Speaker Displacement: 0.06 cu ft / 1.82 Ltr
Speaker Weight: 12.5 lbs
Dimensions
Internal Volume: 0.87 cu ft. / 24.7 Ltr
Enclosure Weight: 17.5 lbs
Height: 14in / 35.56cm
Width: 28.5in / 72.39cm
Depth: 6.1in / 15.5cm
Depth: (w. Speaker & Grill) 7.3in / 18.59cm
Original: $569.00
-65%$569.00
$199.15Product Information
